Description

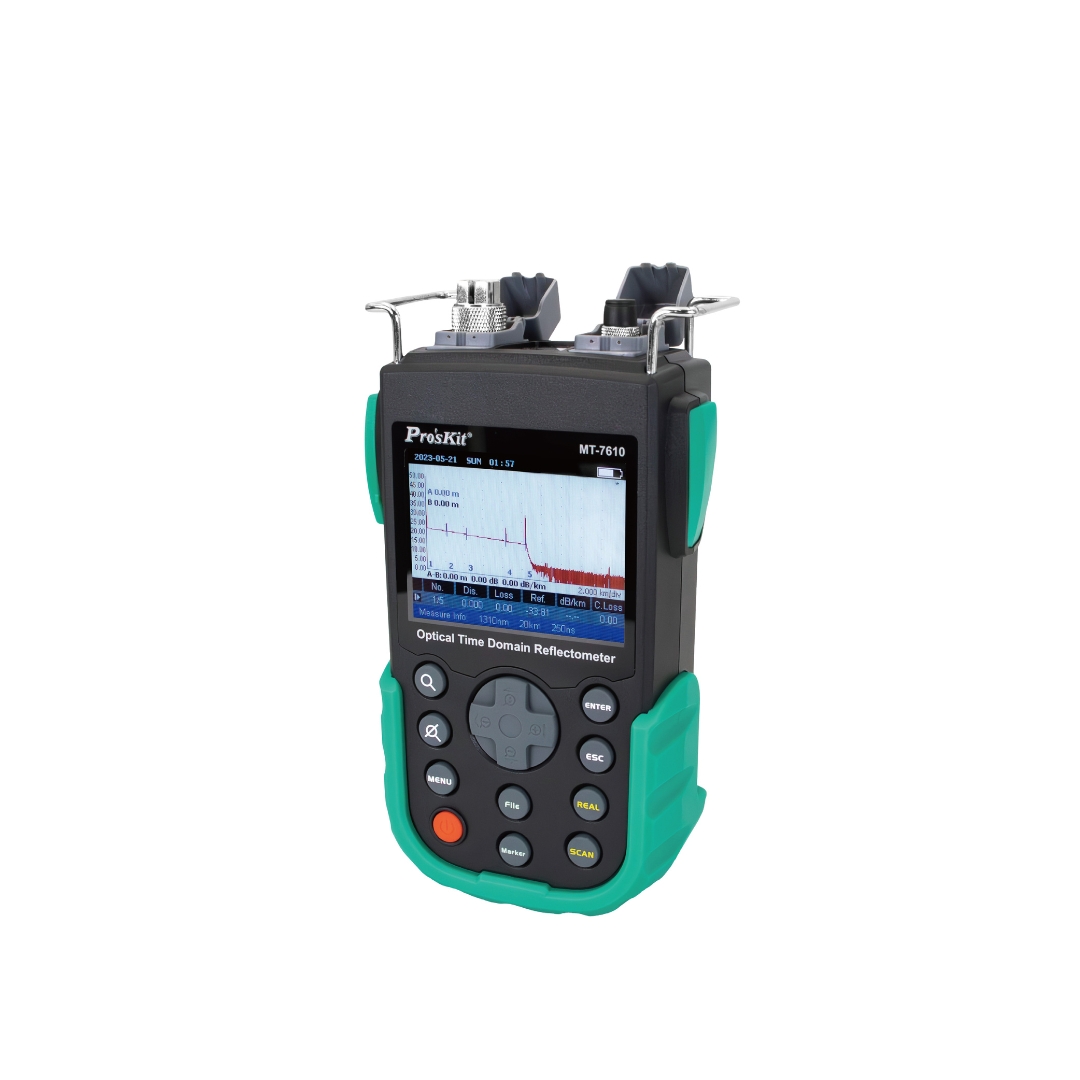

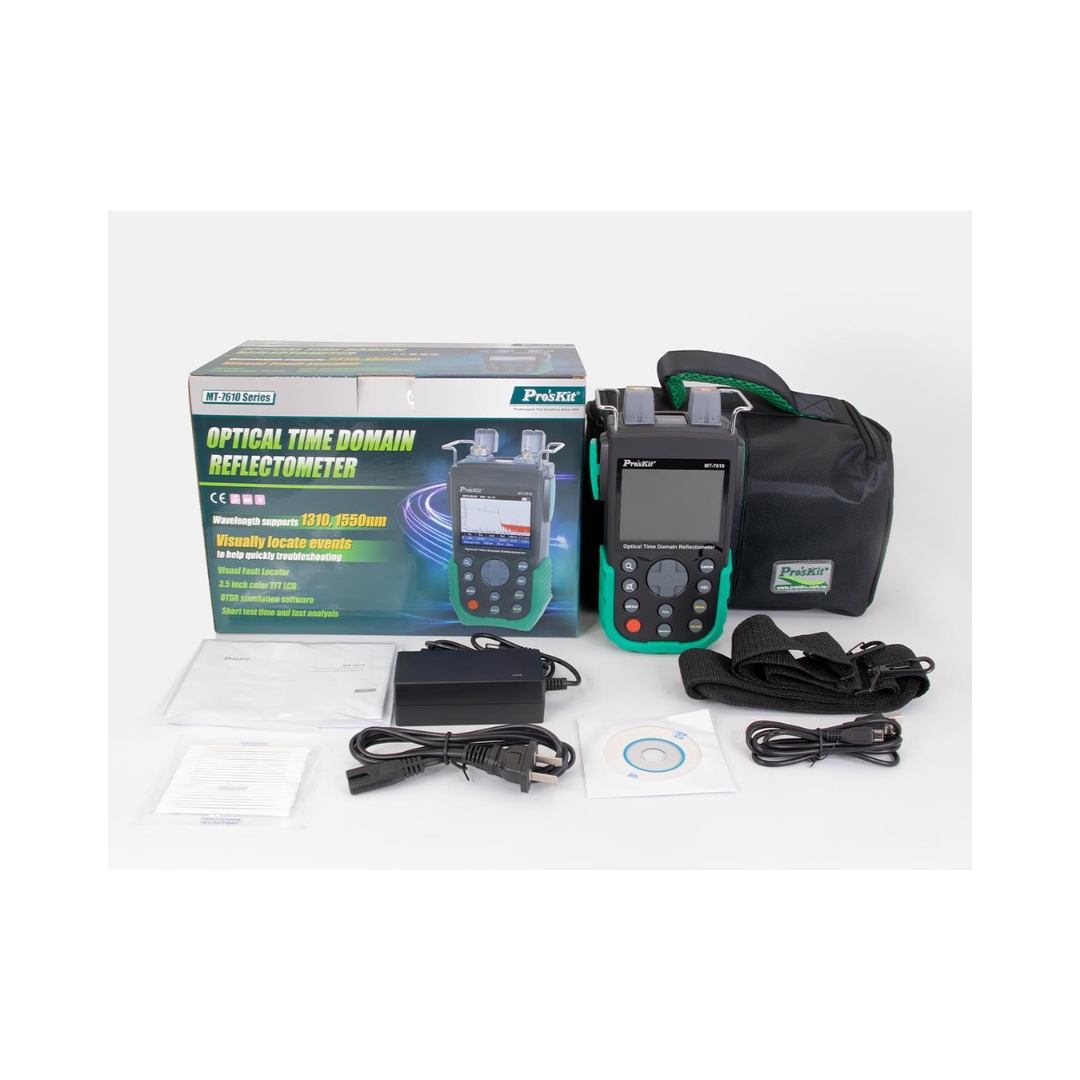

The OTDR is a compact and lightweight fiber optic testing device engineered for quick fault location and cable analysis. It’s user-friendly interface and high measurement accuracy ensure dependable performance in the field.
Features:
- Supports single-mode (SM) fiber testing.
- Dynamic range of 24dB (1310nm) and 22dB (1550nm) for accurate fault detection.
- Test range up to 100km.
- Built-in 1mW Visual Fault Locator (VFL) for easy fiber identification.

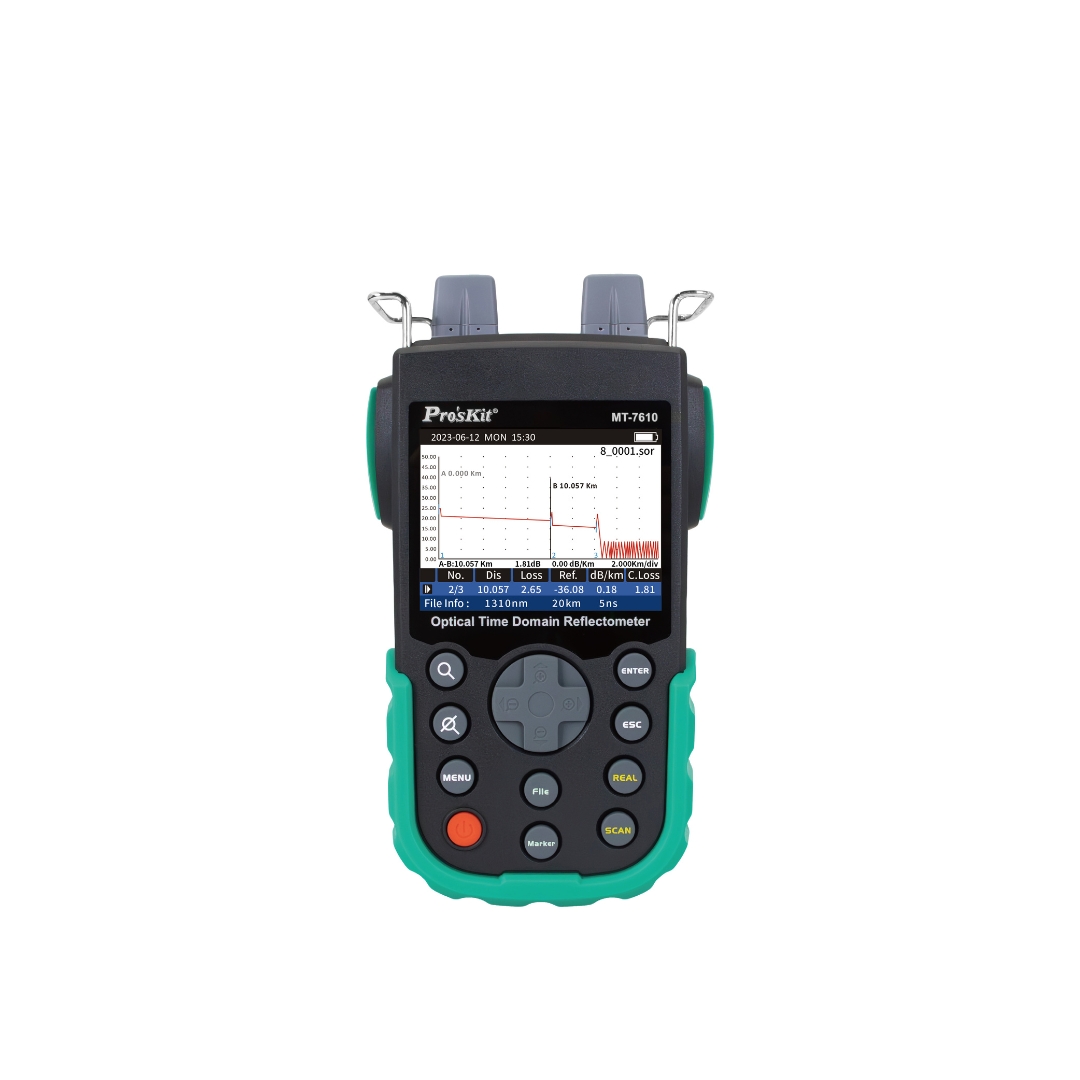

- 3.5-inch color LCD for clear waveform and result display.
- High sampling resolution with up to 8000 sampling points.
- Low 0.01dB loss threshold and resolution for precise measurements.
- Supports SC/PC connector (FC/PC and ST/PC optional).

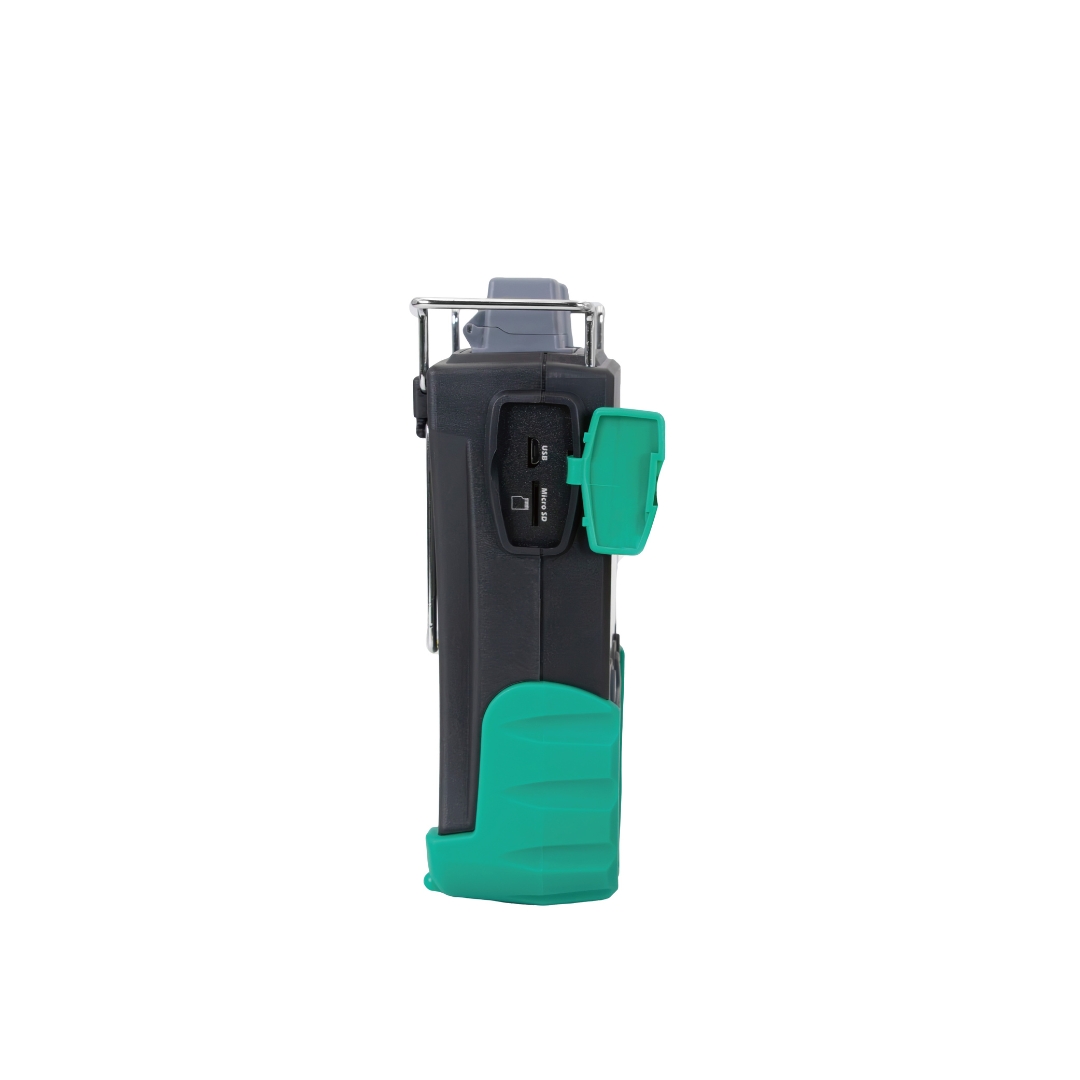

- Micro USB interface for data communication.
- 32MB built-in storage for saving test records.
- Rechargeable 7.4V 3000mAh lithium battery with over 15 hours standby and 8 hours measuring time.
- Compact, lightweight design suitable for field testing and maintenance.
Specifications:
| Model No. | MT-7610F |
| Applicable Fiber | SM |
| Dynamic Range | 24dB (1310nm) / 22dB (1550nm) |
| Test Range (km) | 0.1–100 |
| Distance Uncertainty | ±(0.8 + 0.005% × Distance + Sampling Resolution) |
| Wavelength | 1310nm / 1550nm ±20nm |
| Connector | SC/PC (FC/PC, ST/PC Optional) |
| Pulse Width | 5ns–10µs |
| Measurement Time | 5s–180s |
| Attenuation Blind Area | 8m |
| Event Blind Area | 3m |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.01dB |
| Sampling Resolution | 0.32–20.48m |
| Sampling Points | Up to 8000 |
| VFL Power | 1mW |
| VFL Wavelength | 650nm ±20nm |
| Display | 3.5″ Color LCD |
| Communication Port | Micro USB |
| Storage | 32MB Built-in Storage |
| Language | EN/TW/CN |
| Battery | 7.4V 3000mAh Lithium Battery |
| Working Time | Standby >15 Hours; Measuring >8 Hours |
| Environmental Conditions | Working: 0–50°C; Storage: -20–70°C; Humidity: <90% |
| Power Supply | Adapter: Input AC 100–240V, 50/60Hz; Output DC 12V/2.0A |
| Voltage | AC 220–240V |
| Dimensions | 195 × 110 × 80mm |
| Weight | 600g |
