Description
Features:
- 1-7 Calibration Parameters Setting
- Max Support 8 Remote Units
- 90~1000V NCV Detection
- Current Test
- Current Protection <5mA
- Voltage Protection AC60V or DC48V
- Router Test
- Low Battery Display
- Auto Power Off
- Live Telecommunication Equipment Test
Cable Length Measurement up to 1200M
- Measuring cable length to opens up to 1200M. Calibration accuracy: ±3%
- Length measurement in feet, yard or meters
- Cable length measurements without remote attached
Calibration Parameters
- Can determine actual Calibration parameters with known length of cable for cable length test
- Allows setting 1-7 Calibration parameters
Wire Tracing up to 3KM
- The tone and probe kit let you easily tracking wire directly in connection with live telecommunication equipment and router
Cable Mapping & status Indication
- Display the result of pin to pin cable mapping
- Display cable status and troubleshoot wiring for continuity, shorts, opens and crossover.
- Max support to 8 remote units
Non Contact Voltage detection
- Tests voltage from 90 ~ 1000V, special design to make sure the power is off before testing for circuit protection

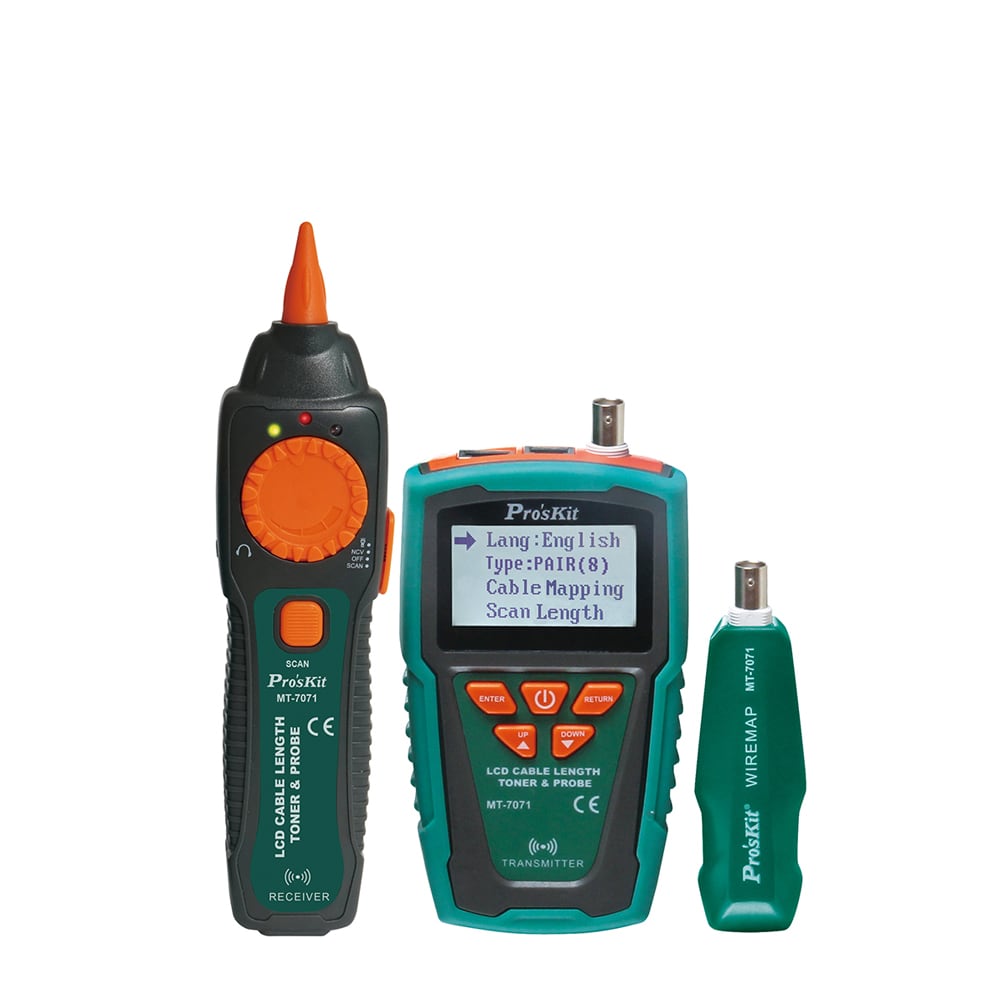

MT-7071 Toner specifications:
- Cable types tested- RJ45 Lan cable Cat 5、5e、6、(UTP/STP)、 RJ11/12 Telephone cable Cat 3 (2/4/6 pin)、Coaxial cable & normal solid/Stranded wire by alligator clips patch cord.
- Cable test modes- 2 note tones for location, wire mapping , open length tested
- Measurement technology- Cable capacitance method
- Max. distance to open for test- 1,200 m (4,000 ft/1,300 yd), approx
- Min. distance to open for test- 2 meter (6.8 ft/ 2.2 yd)
- Typical accuracy of length test- 2~10 m (6.8~33 ft/2.2~11yd) for reference 10~610 m (33-2000 ft/ 11-666 yd.): ±5.0% 610~1,200 m (2000~4000ft/666~1300 yd.) for reference, Default measuring Cat.5e cable.
- Calibration accuracy of length test- 10~610 m (33~2,000 ft/11~666 yd) ±3.0%, standard cable:10~50m(33~164 ft/11~55 yd), Default measuring Cat.5e cable.
- Resolution & unit of length test- 0.1 m / ft / yd, Rate:1~3 sec./time
- Calibrating parameters memory- 1~7 sets, allowing rewrite by new calibrating parameters.
- Max. distance of transmit- ≧3 km (580/1160 Hz) & 610 m (2,000 ft/666 yd)
- Min. distance of cable map- Twisted pair:1m (3 ft/1yd), normal wire:1.25m (4ft/1.35yd)
- Cable map & shielded indication- LCD 1~8 & G
- Battery type- DC 9V(NEDA 1604/6F22)X1pc(Not included)
- Dimension (L×W×D)- 138×80×35 mm
MT-7071 Receiver specification:
- Signal status indication- 580/1160 Hz
- NCV indication & LED illumination- 1 LED (AC90~1000V) & 1 LED
- Dimension (L×W×D)- 203×50×32 mm
MT-7071 Remote unit specifications:
- Remote unit- 1 pc, max. support to 8 pcs
- Compatible connectors- RJ45(8 pin), RJ11/12(6 pin), BNC connectors
- Remote unit dimension(LxWxD)- 90×32×30mm
- Individual packing- Color box
