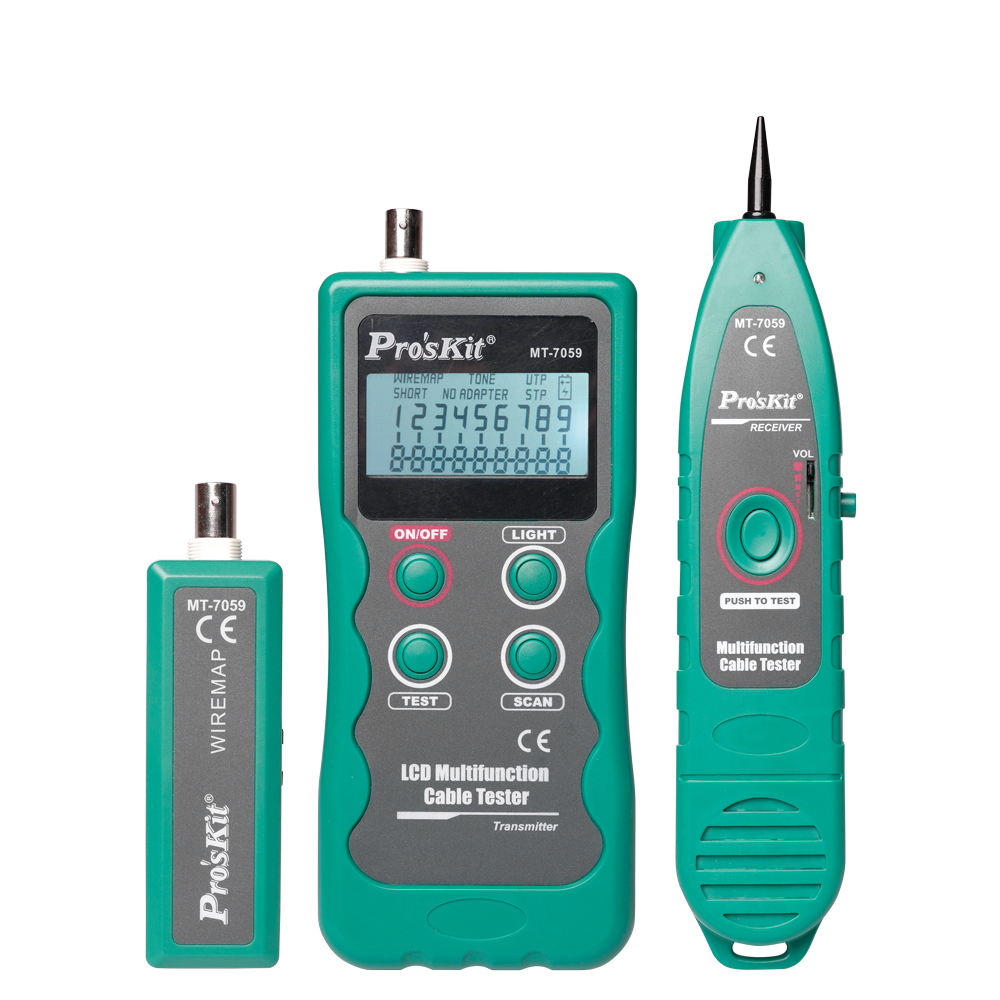

Pro’sKit MT-7059, LCD Multifunction Cable Tester
Description:
LCD display, Wire tracing, LAN cable mapping, 9 different tone cable status indication
Features:
- The wire can be tracked directly in connection with Ethernet service, router, and PC terminal
- Validate and troubleshoot wiring on RJ11/RJ45 cables, Coaxial cable, USB cable, IEEE 1394 cable
- Test cable status for continuity, shorts, opens,miswired, crossover
- 9 different tones selection for convenience use under different environment condition
Specifications:
| MT-7059 Transmitter specifications | |
| Indicator | LCD 53X25mm,with back light |
| Tone frequency | 225kHz |
| Max. distance of transmission | 2km |
| Max. distance of cable map | 300m |
| Max. working current | ≤70mA |
| Tone mode | 9 Tone adjustable |
| Compatible connectors | RJ45(8 pin) / RJ11(6 pin) / BNC / USB / IEEE 1394 |
| Continuity test | LCD (SHORT) |
| Max. signal voltage | 1.5Vp-p |
| Function selection | 3 Push button & 1 Power switch |
| Function and faults LCD display | LCD display(Wiremap, Tone, Short, Noadapter, UTP, STP, Low battery) |
| Cable map indication | LCD (#1~#8) |
| Shielded indication | LCD (#9) |
| Voltage protection | AC 60V / DC 42V |
| Low battery display | LCD (6.5V) |
| Battery type | DC 9.0V(NEDA 1604/6F22 DC9V ×1pcs) |
| Dimension (LxWxD) | 185X80X32mm |
| MT-7059 Receiver specifications | |
| Frequency | 225kHz |
| The Max. working current | ≦70mA |
| Ear jack & LED illumination | 1 & 2 LEDs |
| Battery type | DC 9.0V(NEDA 1604/ 6F22 DC9V×1) |
| Dimension (LxWxD) | 218X46X29mm |
| MT-7059 Remote unit specifications | |
| Compatible connectors | RJ-45(8 pin), RJ-11(6 pin), BNC, USB, IEEE 1394 |
| Dimension (LxWxD) | 107X30X24mm |
| Individual packing | Color box |
