Protective Function Analog Multimeter

2,582.00

Proskit MT-2018, Protective Function Analog Multimeter

  • Brand new and unused

Out of stock

Description

Proskit MT-2018, Protective Function Analog Multimeter

Features:

  • Overload and mis-used protection via two fuses, oxide varactor & diodes.
  • Robust protective holster alongside.
  • 20kΩ/V DC & 9 kΩ/V AC input sensitivity.

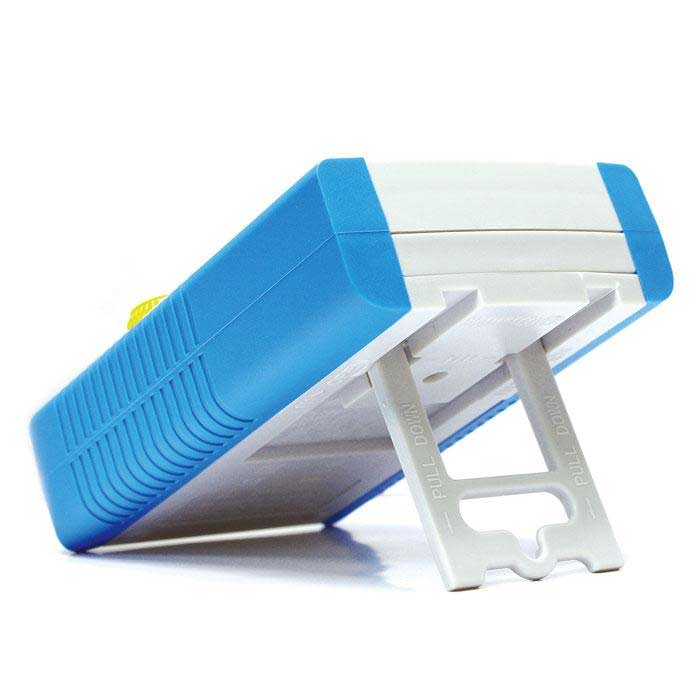

  • Adjustable back tilt device with hook-up design.
  • Ideal for using in the fields of lab, school, home applications.

Specifications:

DCV 0.1/0.5/2.5/10/50/250V ±3.0%FSD,
1000V ±4.0%FSD
ACV 10/50/250V ±4.0%FSD, 1000V±5.0%FSD
DCA 50μ/2.5m/25m/250mA ±3.0%FSD
Resistance ×1(0.2~2kΩ)/ ×10(2~20kΩ)/
×100(20~200kΩ)/ ×1k(200~2MΩ)/
×10kΩ(2k~20MΩ) ±4.0%ARC
Capacitance C1(R×1k): 2000μF(Approx.),
C2(×50μA):0.025μ/0.25μ/25μ
±3.0%FSD(Option MT-2007-C)
Battery Check 1.5V/9V, Product does not contain batteries
Transistor hFE test Y
Diode & LED test Y
Front Panel Controls Range selector switch with “OFF”
position, 0Ω adjust knob
Power Source 1.5V AA x 2pcs and 9V(NEDA1604) x 1pcs
Size 160 x 105 x 40 mm
Individual Packing Color box



Additional information

Weight 594 g
Brand Name

Proskit
