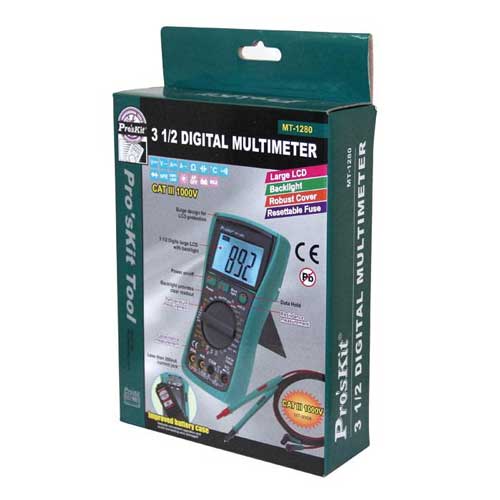

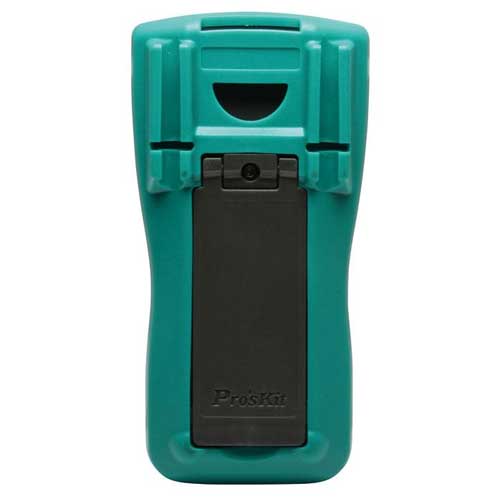

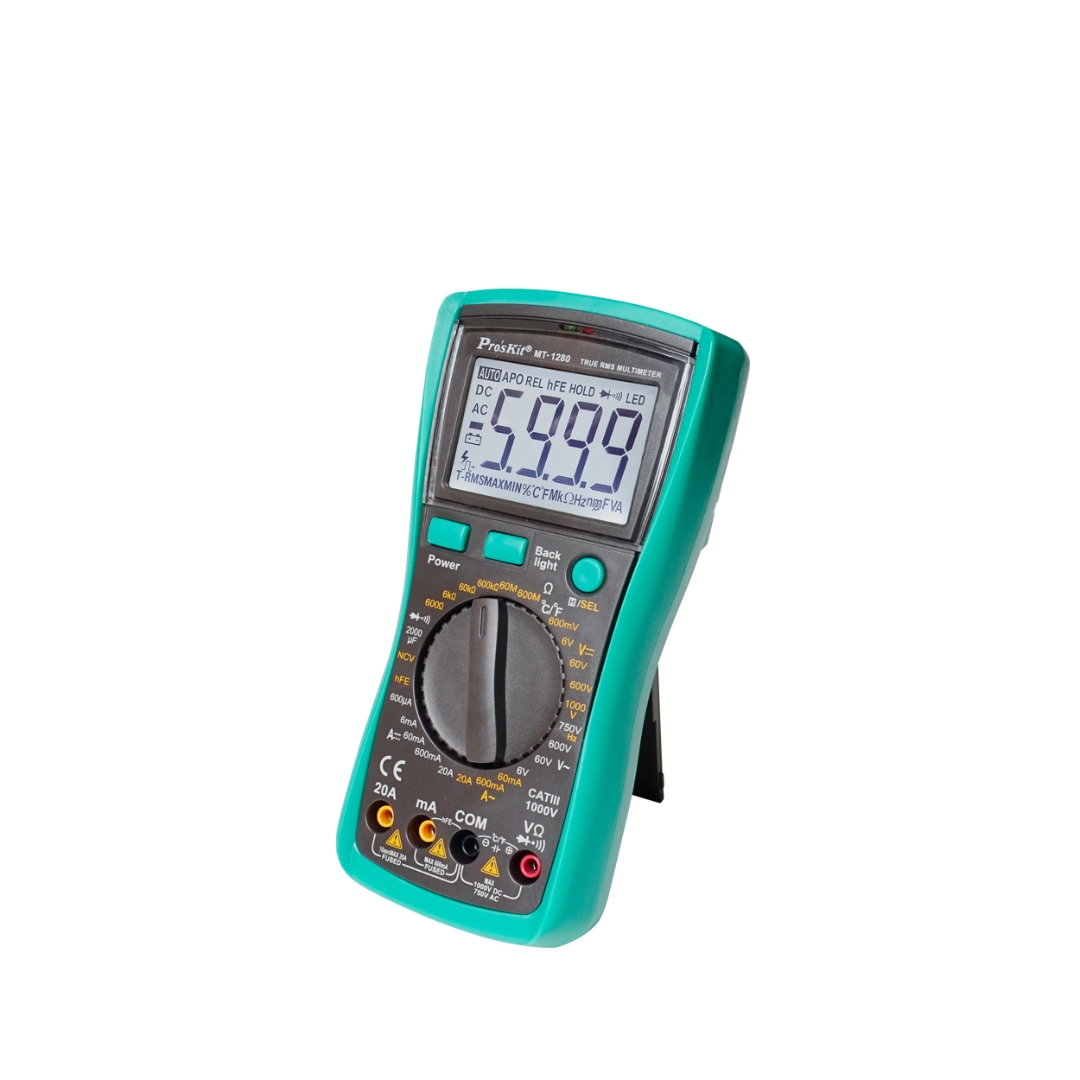

Proskit MT-1280, 3 1/2 Digital Multimeter
Description:
Capacitance / Temperature
Features:
- Complies with the newest CE CATIII safety standard
- 1M drop protection.
- 3 1/2 digits 1999 counts.
- 0.5% best accuracy.
- Large and easy to read display panel.
- Resettable fuse protection circuit design
- Extra functions: Auto power off, low battery indication, LCD backlight, data hold, LED indicator

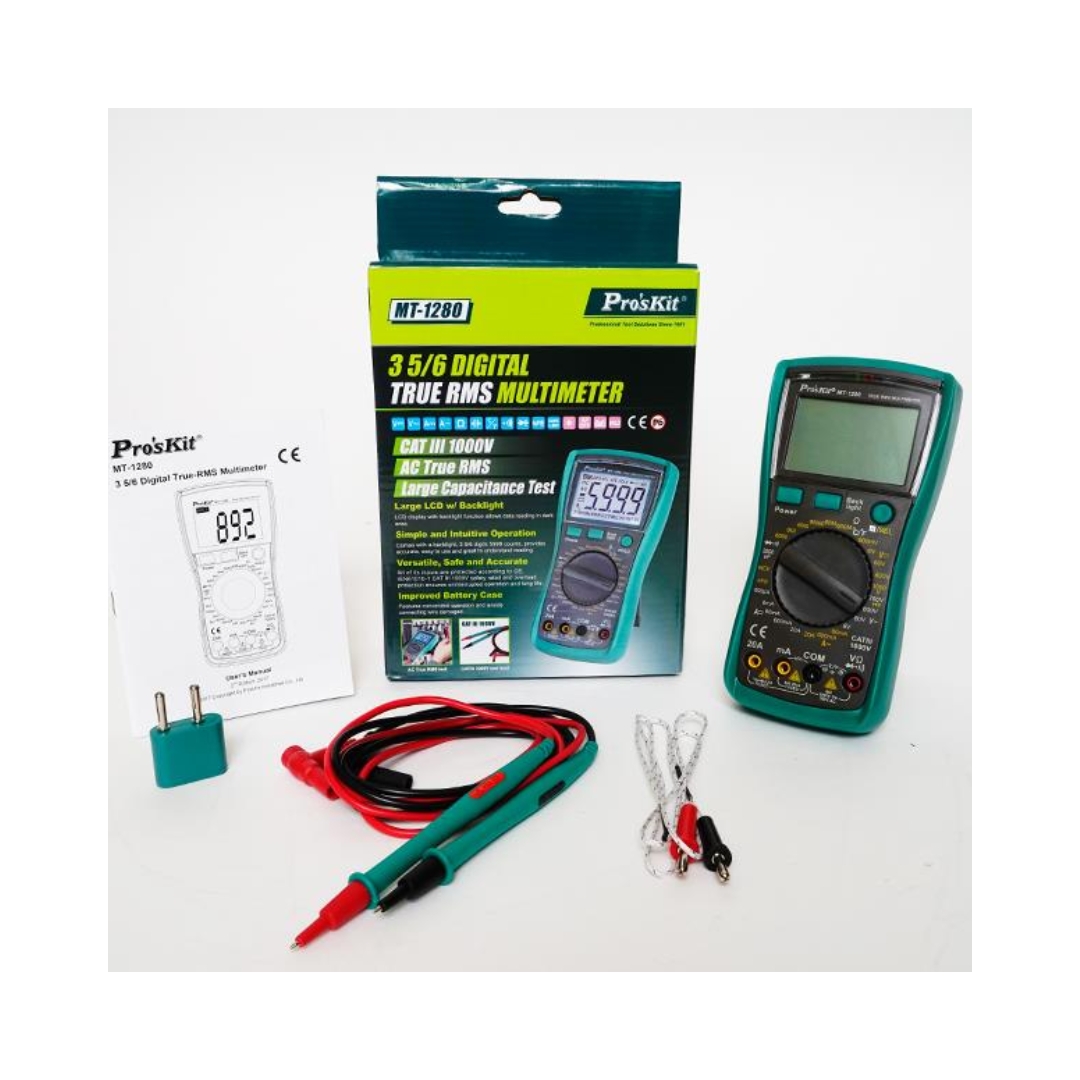

- Including CATIII test lead and themocouple probe.
Specification:
| Model No. | MT-1280 |
| Digits | 3 1/2 digits 1999 counts. |
| Accuracy | 0.5% best accuracy. |
| DCV | 200mV/2V/20V/200V ±(0.5%+3d), 1000V ±(0.8%+10d) |
| ACV | 2V/20V/200V ±(0.8%+5d), 750V ±(1.2%+10d) |
| DCA | 200μA/20mA ±(0.8%+10d), 200mA ±(1.2%+8d), 20A ±(2.0%+5d) |
| ACA | 20mA ±(1.0%+5d), 200mA ±(2.0%+5d), 20A ±(3.0%+10d) |
| Resistance | 200Ω ±(0.8%+5d), 2K/20K/200KΩ ±(0.8%+3d), 20MΩ ±(1.0%+25d), 200MΩ ±[5.0%(rdg-10)+10d] |
| Frequency | – |
| Capacitance | 20nF ±(2.5%+20d), 20uF ±(2.5%+20d), 200μF ±(5.0%+20d) |
| Temperature | -20°C~400°C±(1.0%+5d), 400°C~1000°C±(1.5%+15d) |
| Battery | 9V(6F22) (Not Included) |
| Size (HXWXD)mm | 182×90×46mm |
| Test leads model no. | MT-9906 |
| Individual packing | Color Box |
