Description

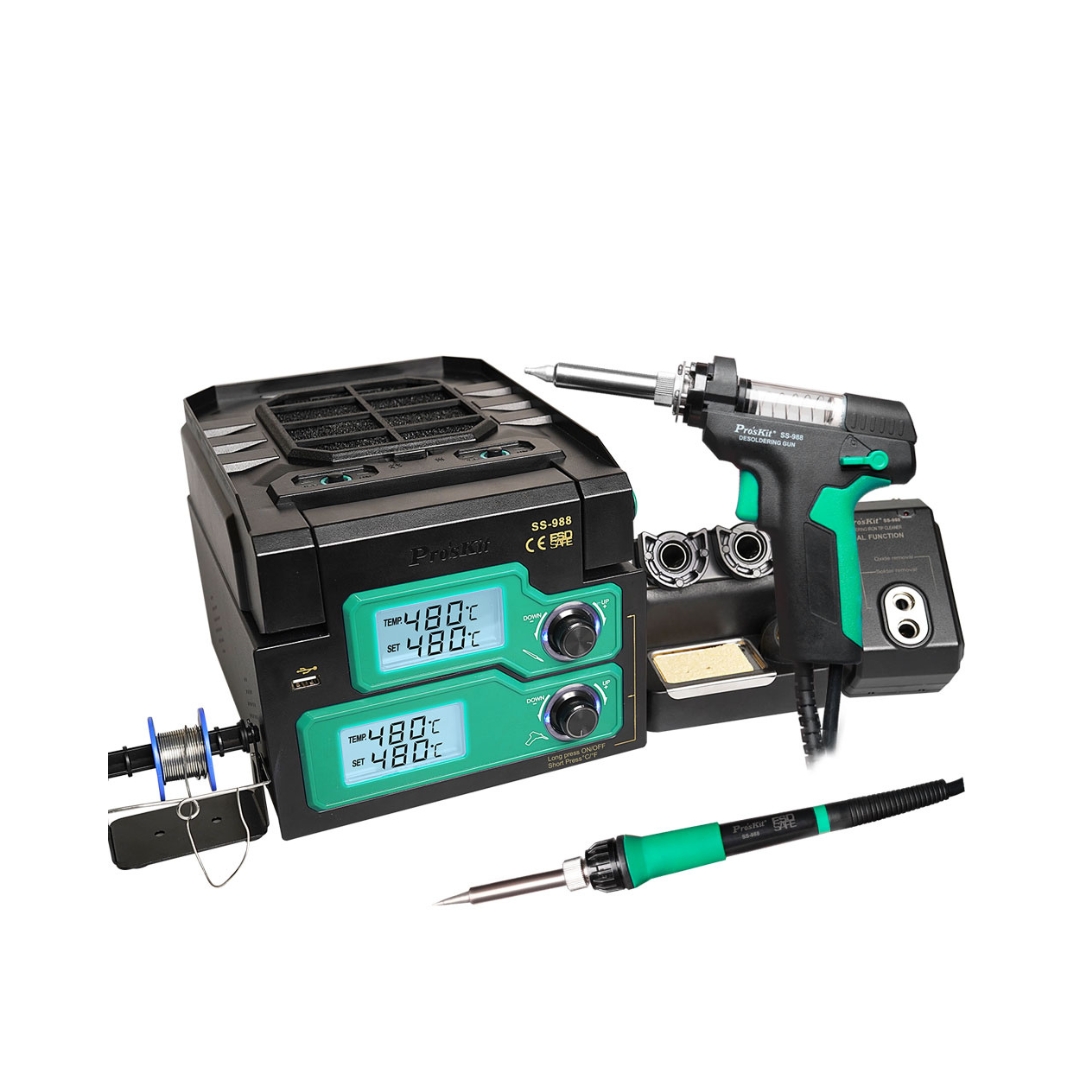

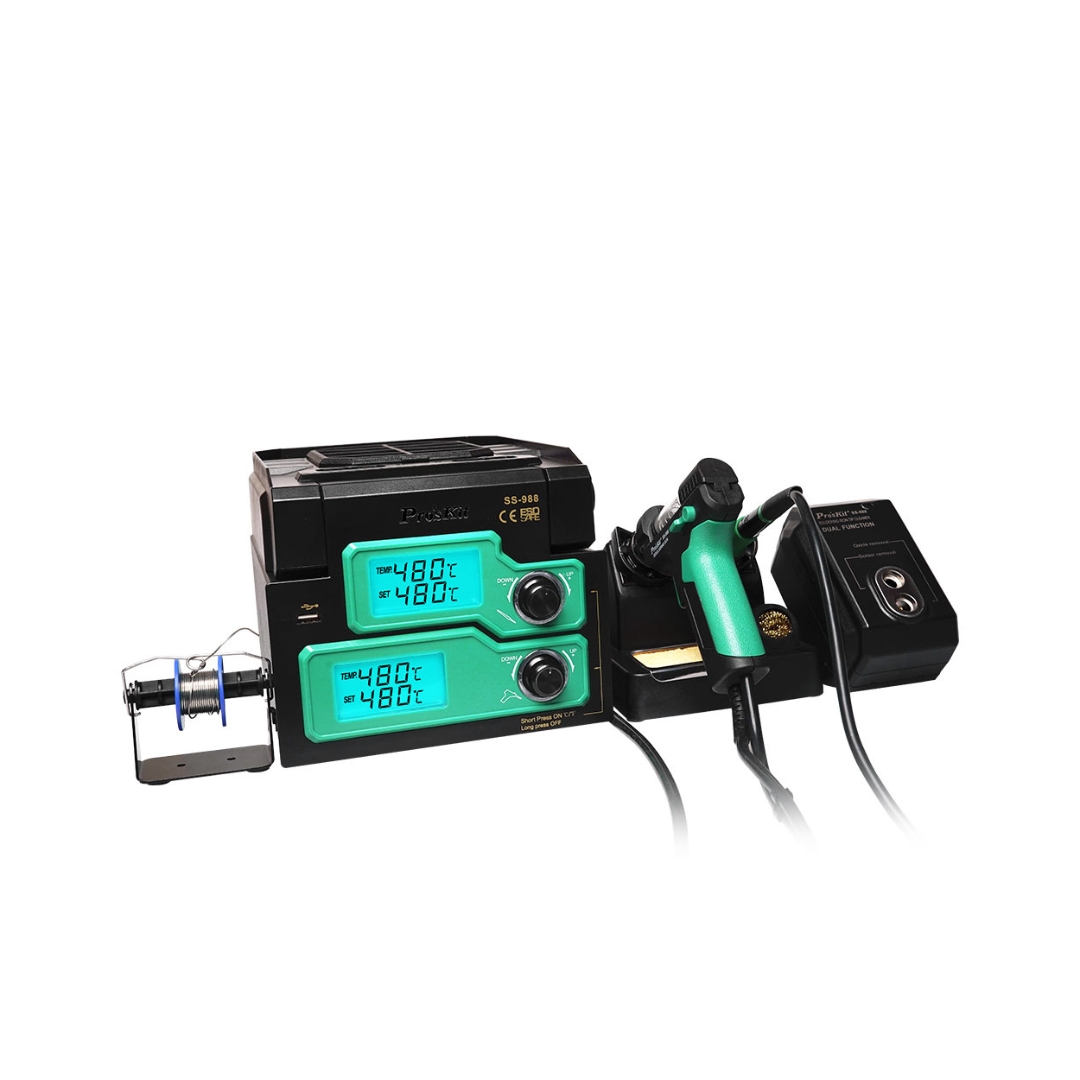

The ProsKit SS-988B is a 6-in-1 soldering/desoldering station featuring smart temperature control, smoke absorption, auto tip cleaning and energy-saving auto sleep for efficient electronics repair.
Features:
- 6-in-1 multifunction repair station
- Soldering and desoldering functions
- Built-in smoke absorption system
- Automatic soldering tip cleaning
- Smart and stable temperature control
- Auto sleep mode for energy saving
- Fast heating and reliable performance
- Ideal for electronics repair, rework, and maintenance
| Specification | SS-988B | SS-988H | SS-988E |
|---|---|---|---|
| Voltage | AC 220-240V, 50Hz | AC 110-120V, 60Hz | AC 110-120V, 60Hz |
| Soldering Iron / Desoldering Gun Power | 250W (Max.) | ||
| Display | LCD (Dual Color Backlight) | ||
| Sleep Mode | Idle for 10 minutes, temperature automatically reduced to 200°C | ||
| ℃ / ℉ Display | Yes | ||
| Soldering Iron Power | 60W (Max. 130W) (DC 18V) | ||
| Soldering Temperature | 160°C ~ 480°C (320℉ ~ 896℉) | ||
| Soldering Tip | 5SI-216N-B (Included) | ||
| Soldering Heater | Ceramic Heater (9SS-988-HT) | ||
| Desoldering Heater Power | 130W (Max.) (DC 18V) | ||
| Pump Power | 50W | ||
| Desoldering Temperature | 160°C ~ 480°C (320℉ ~ 896℉) | ||
| Suction | >600 mmHg | ||
| Desoldering Heater | 4-wire Ceramic Heater (5SS-988-H) | ||
| Smoke Absorber Power | 5W | ||
| Air Volume | 1.0 m³/min | ||
| Tip Cleaner Power | 2W (DC 18V) | ||
| Solder Removal | Ø7 mm | ||
| Oxide Removal | Ø10 mm | ||
| Dimensions | 133 × 83 × 69 mm | ||
| LED Light Power | 5W | ||
| Brightness | Approx. 100 Lumens | ||
| Color Temperature | 6000K | ||
| USB Output | DC 5V / 1A | ||
| Fuse | Ø5 × L20 mm, 3.15A / 250V | ||
| Accessories | • Activated carbon filters: 2 pcs (1 pre-installed) • Filter sponges: Ø13 mm ×2, Ø16 mm ×4 (1 of each pre-installed) • Cleaning pins: Ø0.7 mm, Ø0.9 mm, Ø1.2 mm • Desoldering gun nozzles: Ø1.0 mm, Ø1.2 mm, Ø1.5 mm • Solder wire reel: Ø1.0 mm, 10g • 2-in-1 soldering iron stand with cleaning ball and sponge |
||
| Certification | CE, RoHS | RoHS | RoHS |
| Package Dimensions | 385 × 280 × 205 mm | ||
| Package Weight | Approx. 5.4 kg | ||
