Description

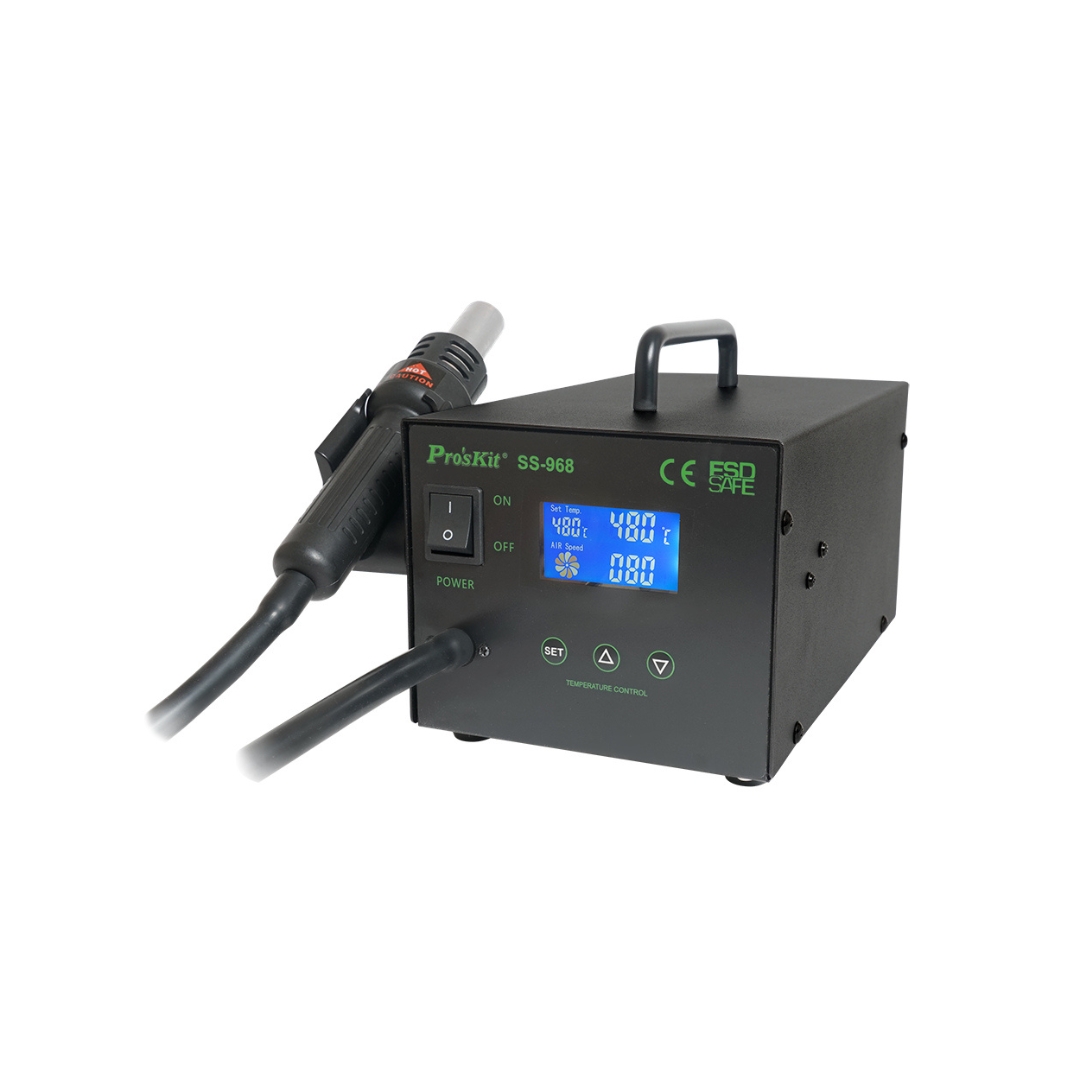

This hot air rework station delivers precise microprocessor-controlled temperature regulation with rapid heating and stable performance. It features auto sleep/wake functionality, a high-efficiency diaphragm air pump and an automatic cool-down system to extend heating element life. Compatible with interchangeable hot air nozzles, it is ideal for SMD rework, repair and rework applications.
Features:
Accurate Temperature Controlled
- Microprocessor temperature controlled.
- Fast heat up, stable temperature.
- Temperature calibration function.
- Closed circuit sensor design.
Auto Sleep and Awake Up Function
- Handle with Sensor Switch when the sensor induct any motion, auto sleep or work mode will be activated.
High Quality Air Pump Supply
- To produce uniform air flow.
Interchangeable and Applicable to Most of Branded Hot Air Nozzles
- 3 nozzles included with this rework station.
- Interchangeable hot air nozzles design for different type of surface mount components.
- Also applicable to most of branded heating element and nozzles.
Certified International Safety Standard
- Complies with CE and ESD standard, conforms to RoHS.
- Comes with AWG 18 (0.8mm2) UL certified wires.
Auto Cool-Off Process to Prolong the
- Service Lifetime
- After power switch is turned off, the auto cool-off process leaves the blower on until the heating element cool down.
Specifications:
| Model No. | SS-968B |
| Power Input | 220–240V AC, 50Hz |
| Power Consumption | 600W |
| Temperature Range | Room Temperature to 480°C (896°F) |
| Heating Element | Metal Heating Core |
| Temperature Calibration | 0–699°C (0–999°F), Adjustable |
| °C / °F Switch | Yes |
| Pump / Motor Type | Diaphragm Pump |
| Air Capacity | 24 L/min (Max.) |
| Auto Sleep Function | Yes |
| Auto Cooling Function | Yes |
| Equipment Noise | <50 dB |
| Temperature Display | LCD (60 × 35 mm) with Backlight |
| Power Plug | Type B |
| Nozzles Included | 9SS-900-A1 (Ø2.2 mm) ×1, 9SS-900-A2 (Ø6.6 mm) ×1, 9SS-900-A3 (Ø8.5 mm) ×1 |
| Dimensions | 250 × 215 × 170 mm |
| Weight | 3.2 kg |
| Hot Air Gun | 9SS-968B-HG |
