Description

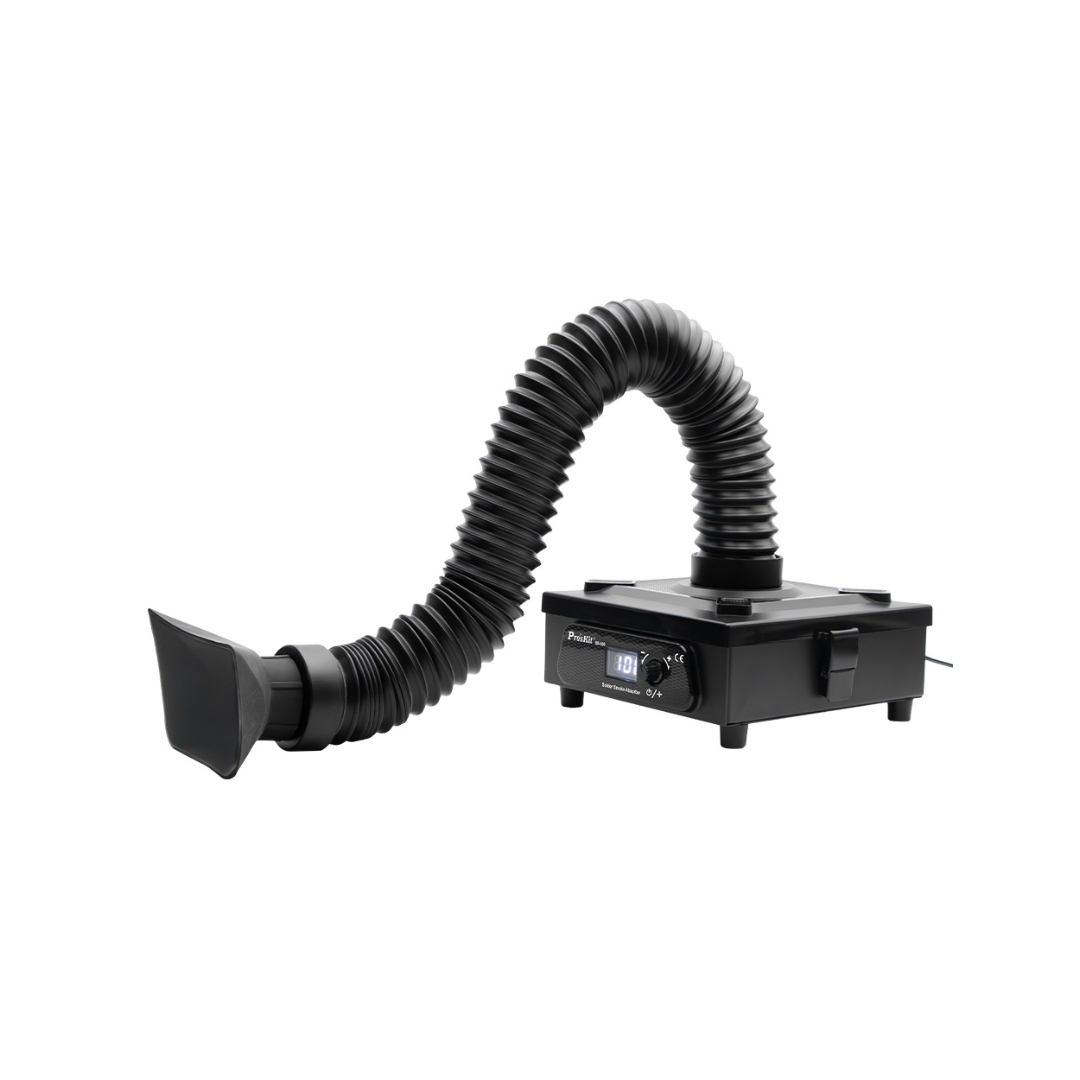

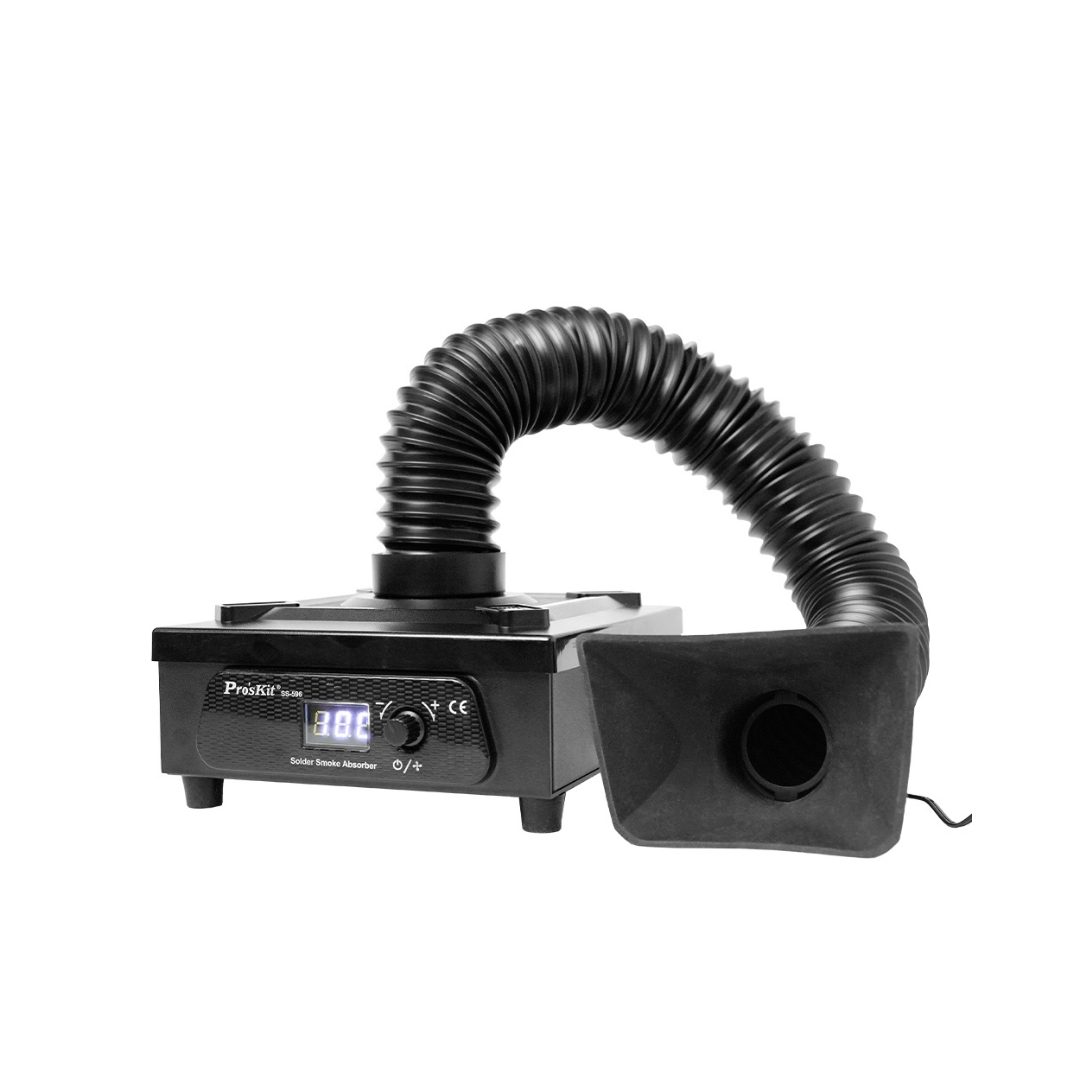

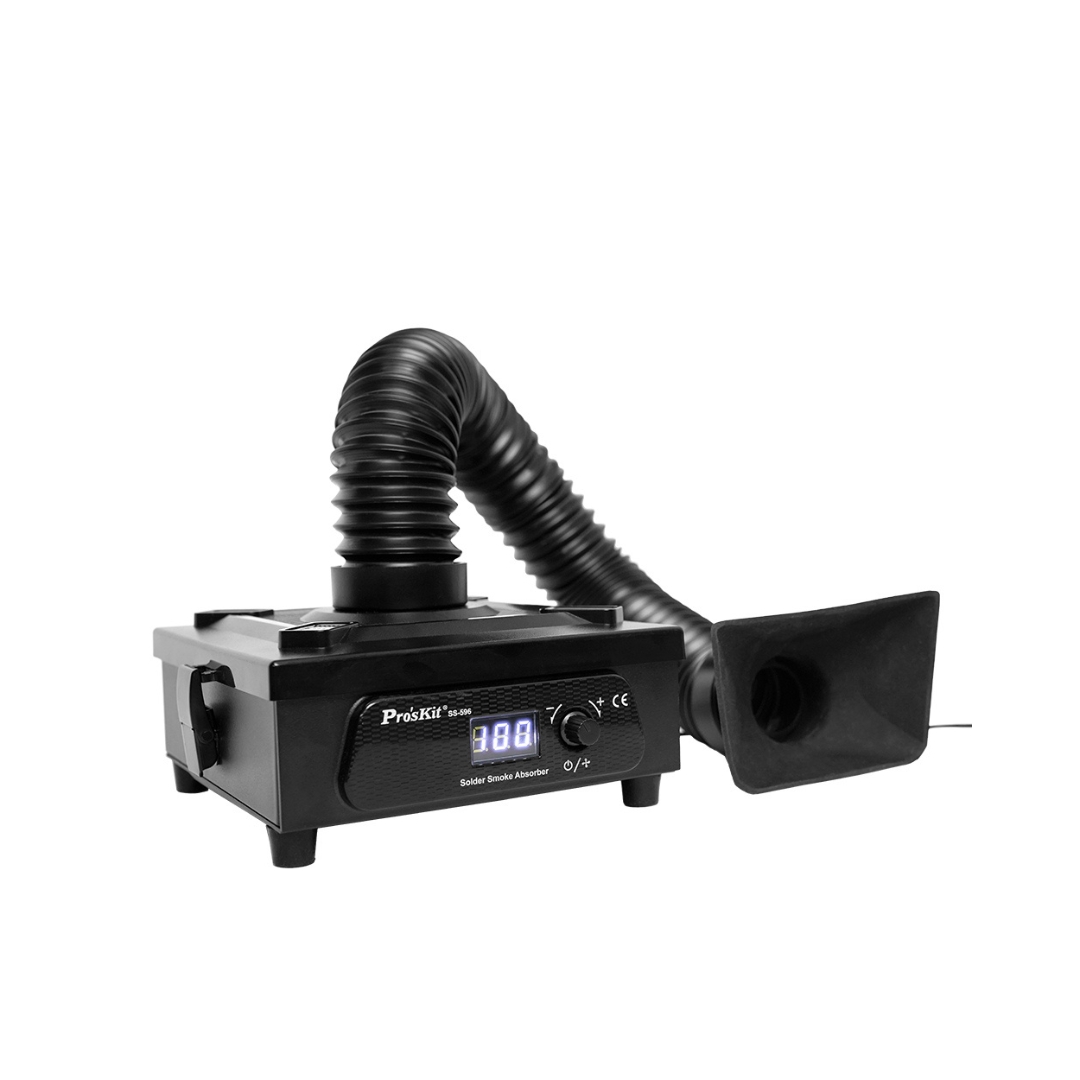

The SS-596F Solder Smoke Absorber is designed to efficiently remove solder fumes, dust and odors with its multi-layer filtration system. Featuring adjustable fan speeds (10–100), a flexible extraction hose and a compact design, it provides a clean and comfortable working environment for soldering, repair and electronics assembly.
Features:
- A portable and desktop smoke absorber has low noise and long-life service.
- The design is to absorb harmful contaminants from soldering and other working conditions.
- The absorber with high-performance fan protects the health of workers.
- An activated carbon filter is to absorb flux and lead fumes.
- The setting of silicone smoke hood and adjustable pipe facilitates directional adjustment for higher smoke removal efficiency.
Specifications:
| Model No. | SS-596F |
| Working Voltage | DC 12V |
| Power | 15W |
| Maximum Inhalation Volume | 90L/min |
| Noise Level | <60dB |
| Fan Speed | 10–100 (Digital Setting) |
| Display Method | LED (White Light) |
| Plug | 5SS-596-ADF |
| Adapter | Input: 100–240V AC, 50/60Hz, 0.8A |
| Output: 12V DC, 2.0A, 24W | |

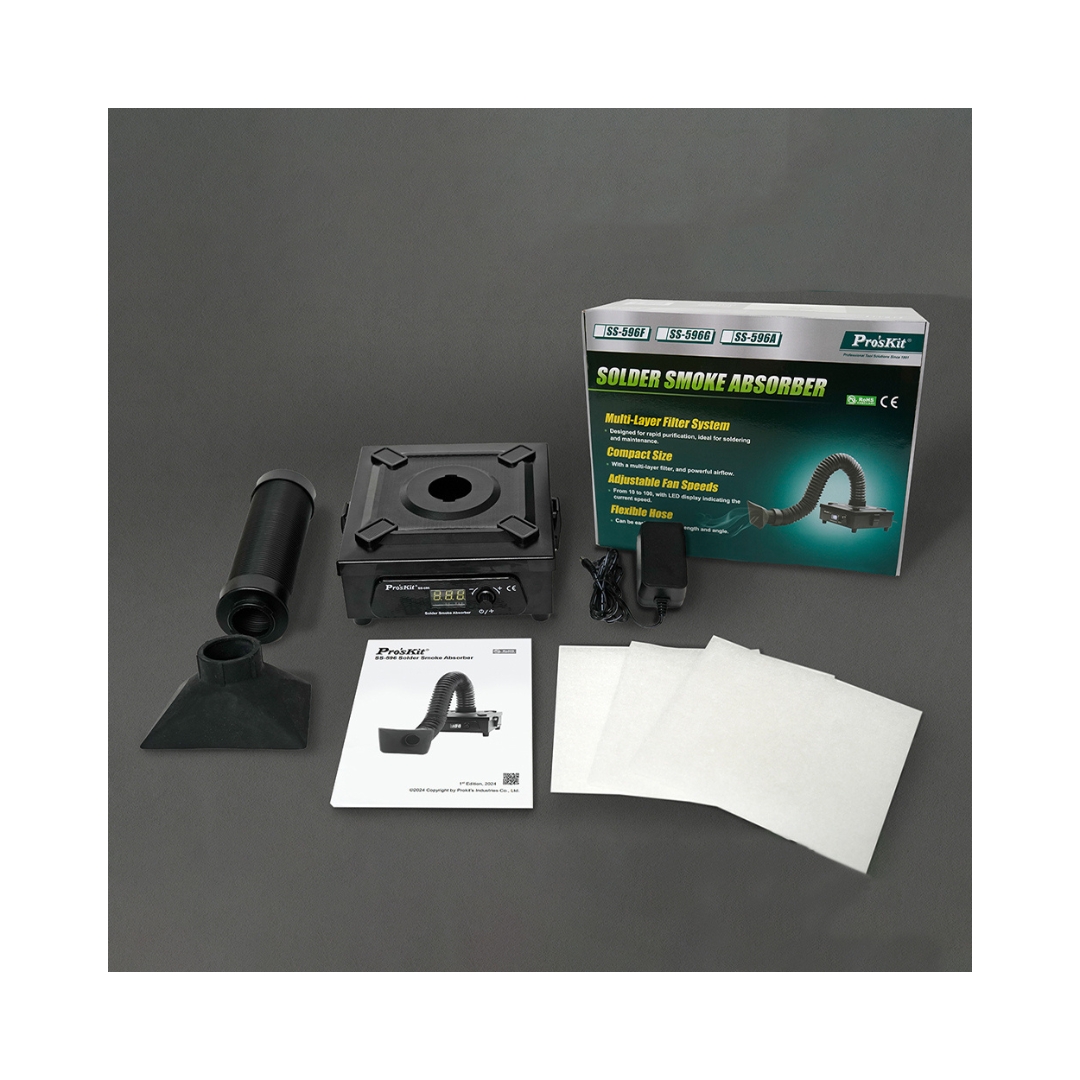

| Accessories | Primary Filter Cotton ×3, Silicone Smoke Hood ×1, Corrugated Pipe (Ø64 × 210mm) ×1, Air Guide Board ×1 |
| Size | 205 × 250 × 90mm (Excluding Corrugated Pipe) |
| Weight (Approx.) | 1.35kg |
