Description

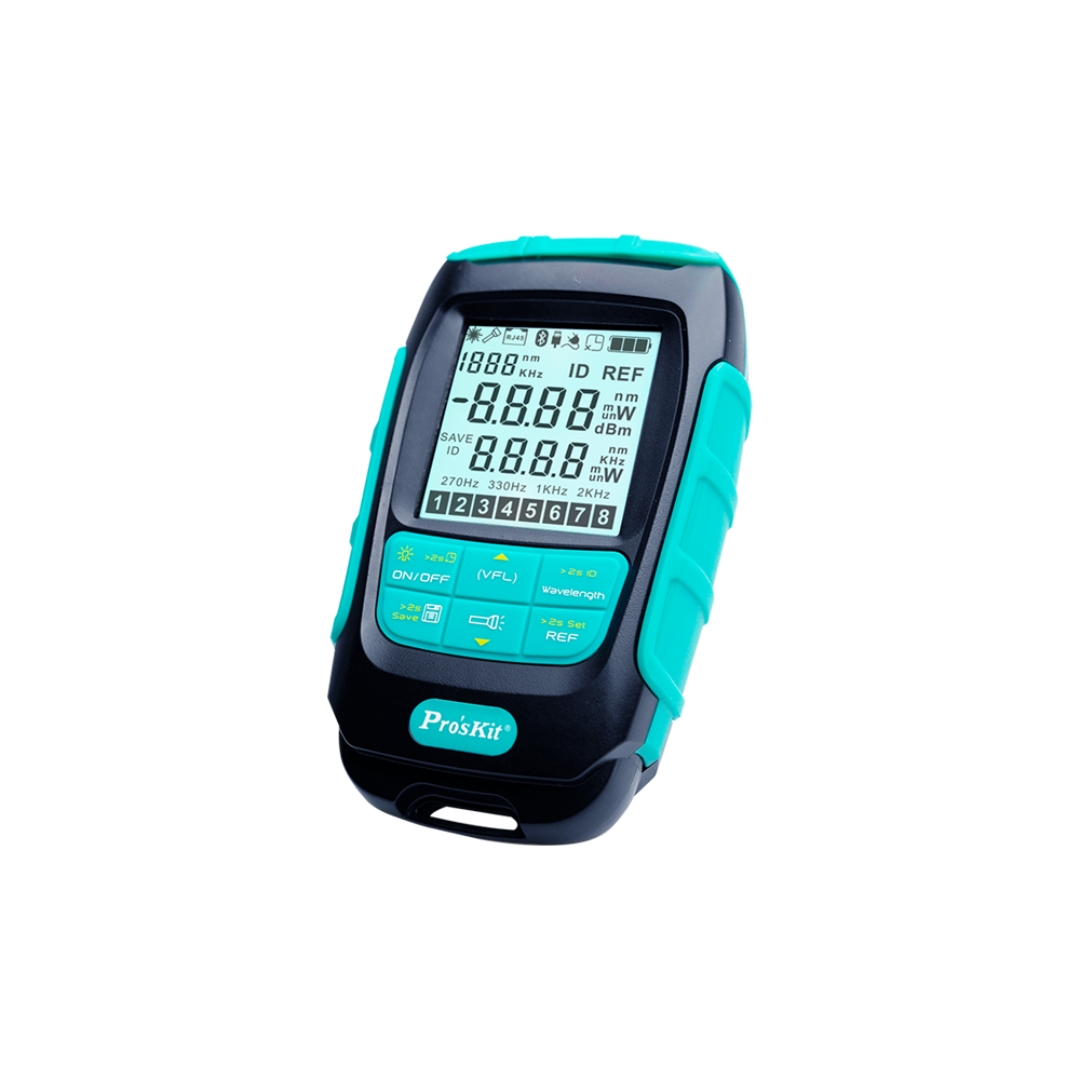

The MT-7617 Optical Power Meter is a compact handheld instrument designed for accurate optical power measurement in fiber optic networks. It’s high measurement accuracy, data storage and lightweight design make it ideal for installation, maintenance and troubleshooting.
Features:
- InGaAs detector for accurate optical power measurement.
- Wide 700–1700nm wavelength measurement range.
- Supports multiple calibrated wavelengths from 850nm to 1650nm.
- Measures optical power from -70 to +10dBm.
- Displays power in dB, dBm, mW, µW, and nW.
- Supports 270Hz, 1kHz, and 2kHz modulation detection.
- Stores up to 500 measurement records.
- Automatic wavelength identification for compatible ProsKit products.
- 0.01dB measurement resolution for precise readings.
- Auto power-off after 10 minutes to conserve battery.
- Low battery indicator and Micro USB charging port.
- Lightweight handheld design with up to 100 hours operating time.
Specifications:
| Specification | MT-7617 |
| Model No. | MT-7617 |
| Detector Type | InGaAs |
| Wavelength Range | 700–1700nm |
| OPM Connector | 2.5mm Universal |
| Measuring Wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
| Measuring Range | -70 to +10dBm |
| Resolution | 0.01dB |
| Accuracy | ±0.2dB (1310/1550nm); ±0.3dB (850/980/1300/1490/1625/1650nm); ±1dB (1270/1577nm) |
| Power Display Units | dB, dBm, mW, µW, nW |
| Modulation Detection | 270Hz / 1kHz / 2kHz |
| Data Storage | 500 Records |
| Wavelength ID | Yes (Applicable for Pro’sKit Products) |
| Auto Power Off | Yes (10 mins) |
| Low Battery Indication | Yes |
| Charging Port | Micro USB |
| Battery | 1.5V AAA × 2 |
| Working Hours | 100 Hours (Power Meter) |
| Working Environment | -10~50°C, <90% RH |
| Dimensions | 98 × 59 × 27mm |
| Weight | 70g (Battery Not Included) |
