Description

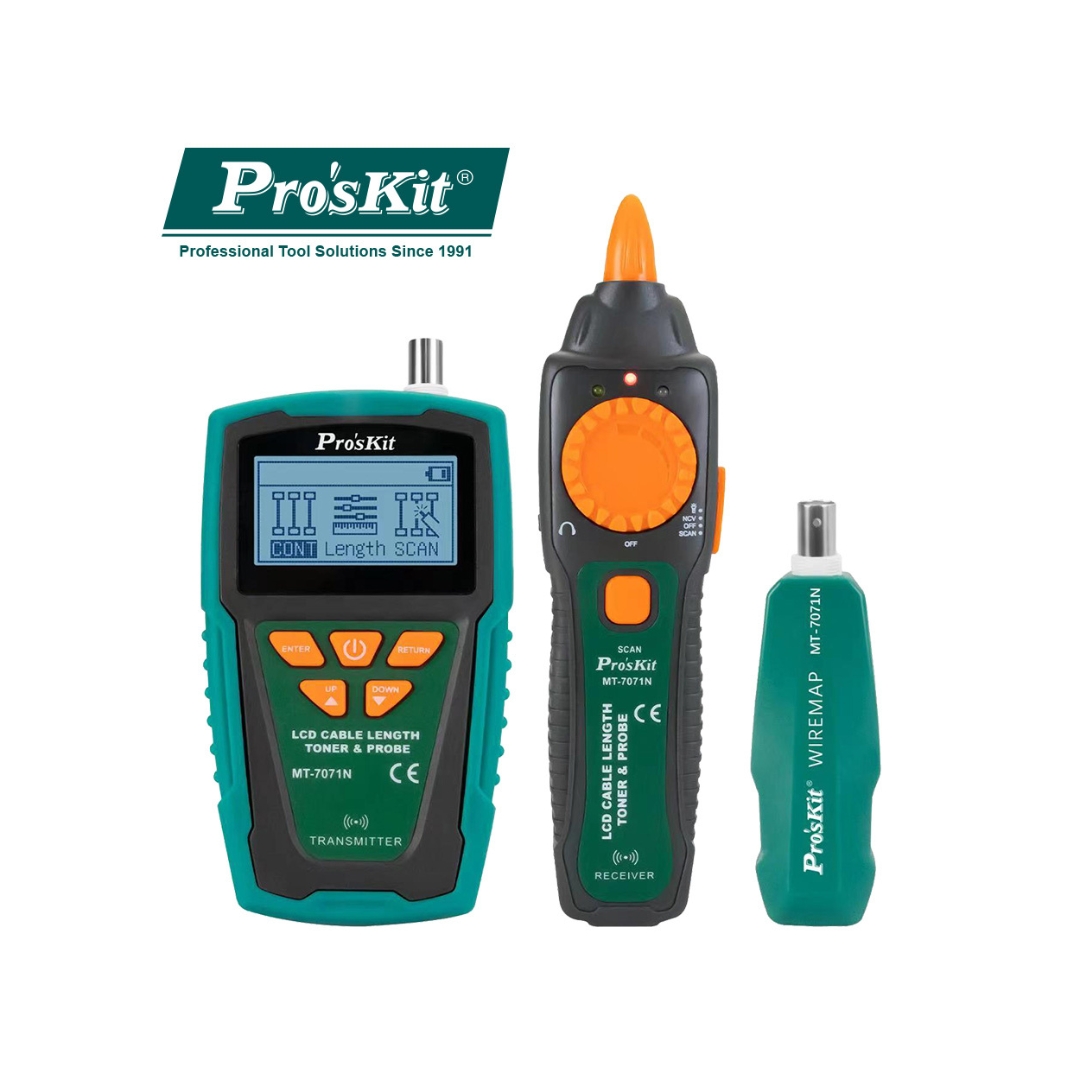

The MT-7071N LCD Cable Length Toner & Probe Kit is a versatile cable testing solution featuring a large LCD interface for easy operation. It accurately measures cable length, traces wires and supports Cat.5/5e/6/6A/7 cables with anti-interference technology, making it ideal for network installation and maintenance.
Specifications:
| Display | LCD 128×64 Dots (50×27.5mm) | |
| Language | Chinese、English | |
| Connectors | RJ45 × 2，BNC × 1 | |
| Battery | 9V: 6LR61 or 6F22 | |
| Cable Map | Cable Type | CAT.5E; CAT.6; CAT.6A; CAT.7 cable；Telephone cable；BNC coax |
| Max range | 300m | |
| Display | LCD: R&M 1-8/G | |
| Cable Length Measurement | Cable Type | CAT.5E; CAT.6;cable；Telephone cable |
| Range | 2.5m—200m | |
| Unit | meters/ yards / feet, selectable option | |
| Accuracy | ±5% | |
| Cables Tracing | Cable Type | CAT.5E; CAT.6; CAT.6A; CAT.7 cable; telephone cable；BNC coax |
| Scan range | 600m | |
| Frequency | 455KHz | |
| Max. Signal Voltage | 9V±1Vp-p | |
| Port Flash | Flash frequency | 3sec/time |
| Link test | 10M/100M/1000M; FDX/HDX; Auto-Nego/Non-Auto Nego. | |
| Back Light | 5s/10s/15s/on/off | |
| Auto OFF | 15min/30min/1 hour/off | |
| Working current | ≤150mA | |
| Protection | ≤60V DC | |
| Dimension | 138 X 80 X 35mm | |
| MT-7071N Receiver Specifications | ||
| Switch | 4 positions | |
| Key press | 1 | |
| Response frequency | 455KHz | |
| Sound dB | ≥85dB | |
| Receiver signal | Elimination of noise | |
| Tone mode | 1 mode | |
| Sensitivity | knob-operated control | |
| Indicator | LED ×3 | |
| Flashlight lighting | LED×1 | |
| Connectors | RJ45× 1 | |
| Earphone jack | Φ3.5mm×1 | |
| Battery | 9V: 6LR61 or 6F22 | |
| Working current | ≤100mA | |
| Dimension | 202 × 50 × 32mm | |
| Remote Unit Specification | ||
| Connectors | RJ45× 1，BNC× 1 | |
| Dimension | 106×32×30mm | |

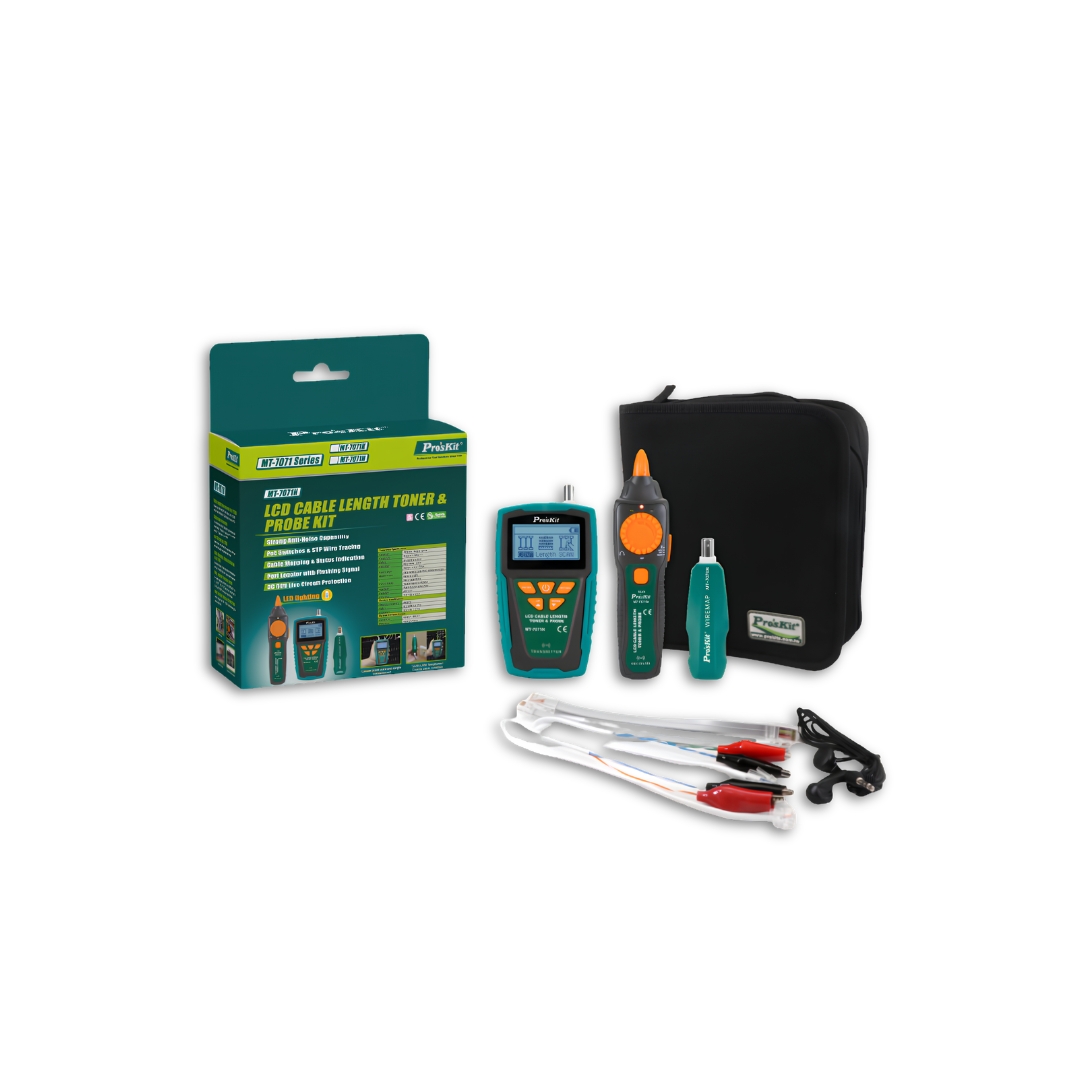

| Accessories | Transmitter、Receiver、Remote Unit、Earphone、RJ45—RJ45 Cable、RJ11—RJ11 Cable、RJ45- alligator clips、RJ11- alligator clips、User Manual、Storage bag | |
