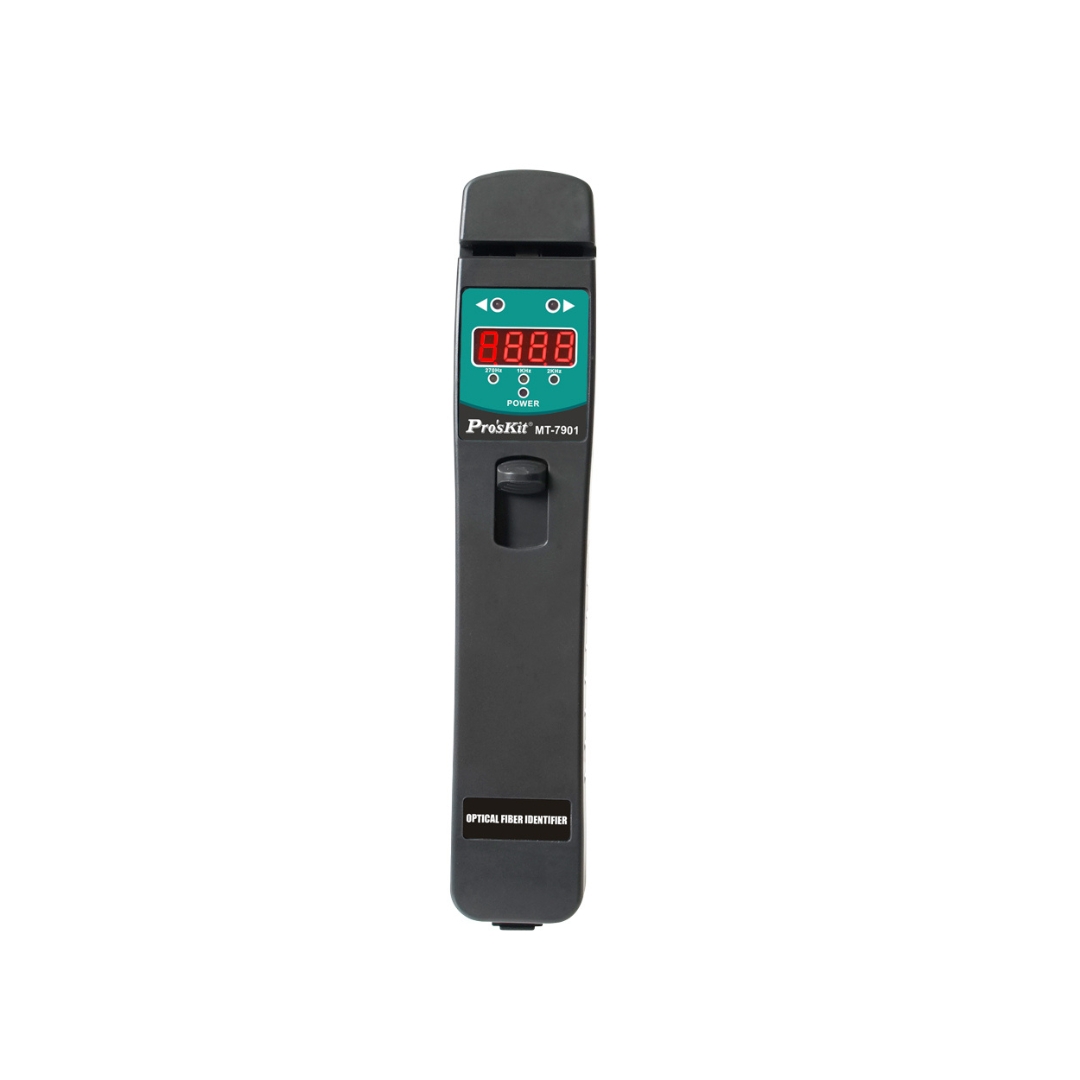

Proskit MT-7901 Optical Fiber Identifier

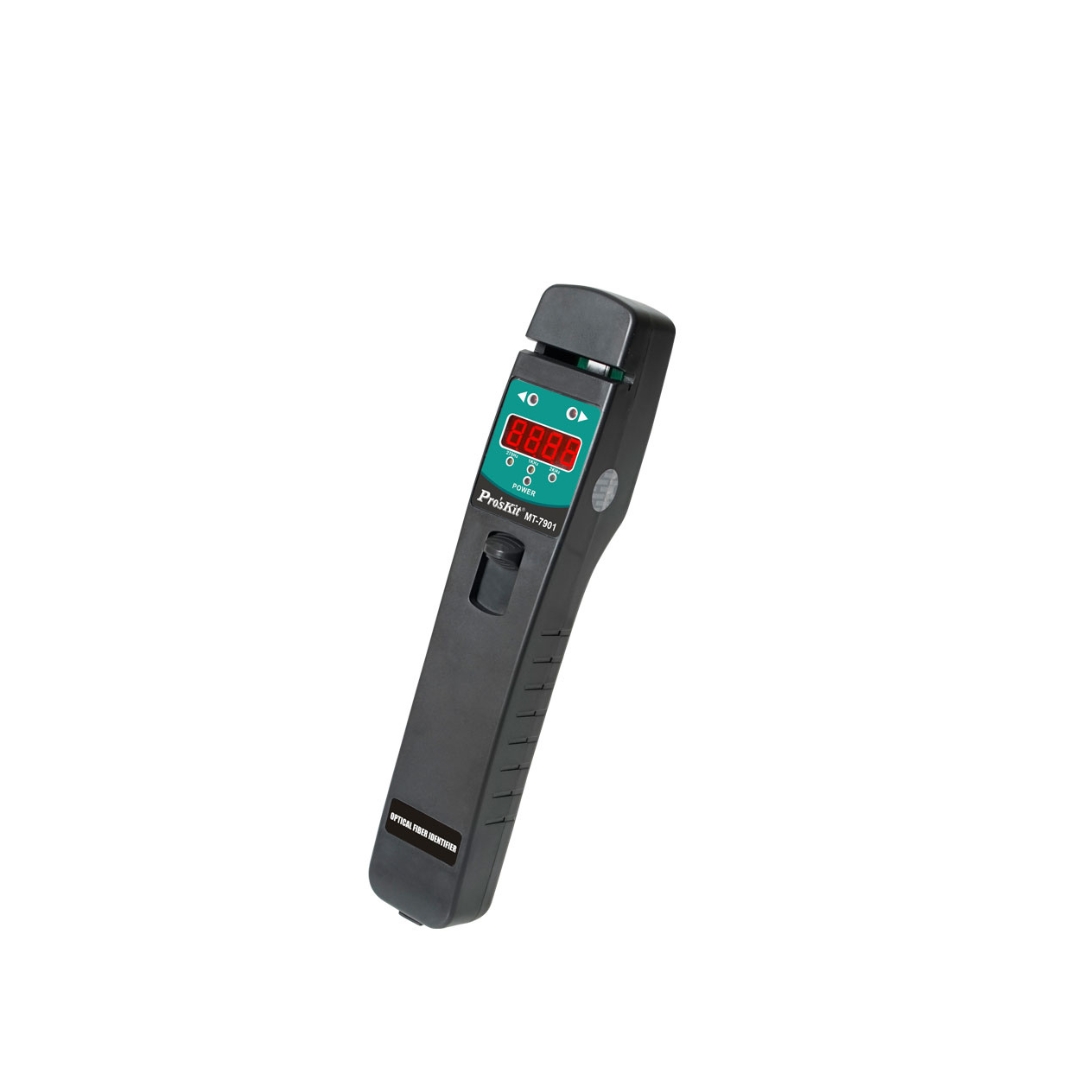

Proskit MT-7901 Optical Fiber Identifier - Image 2

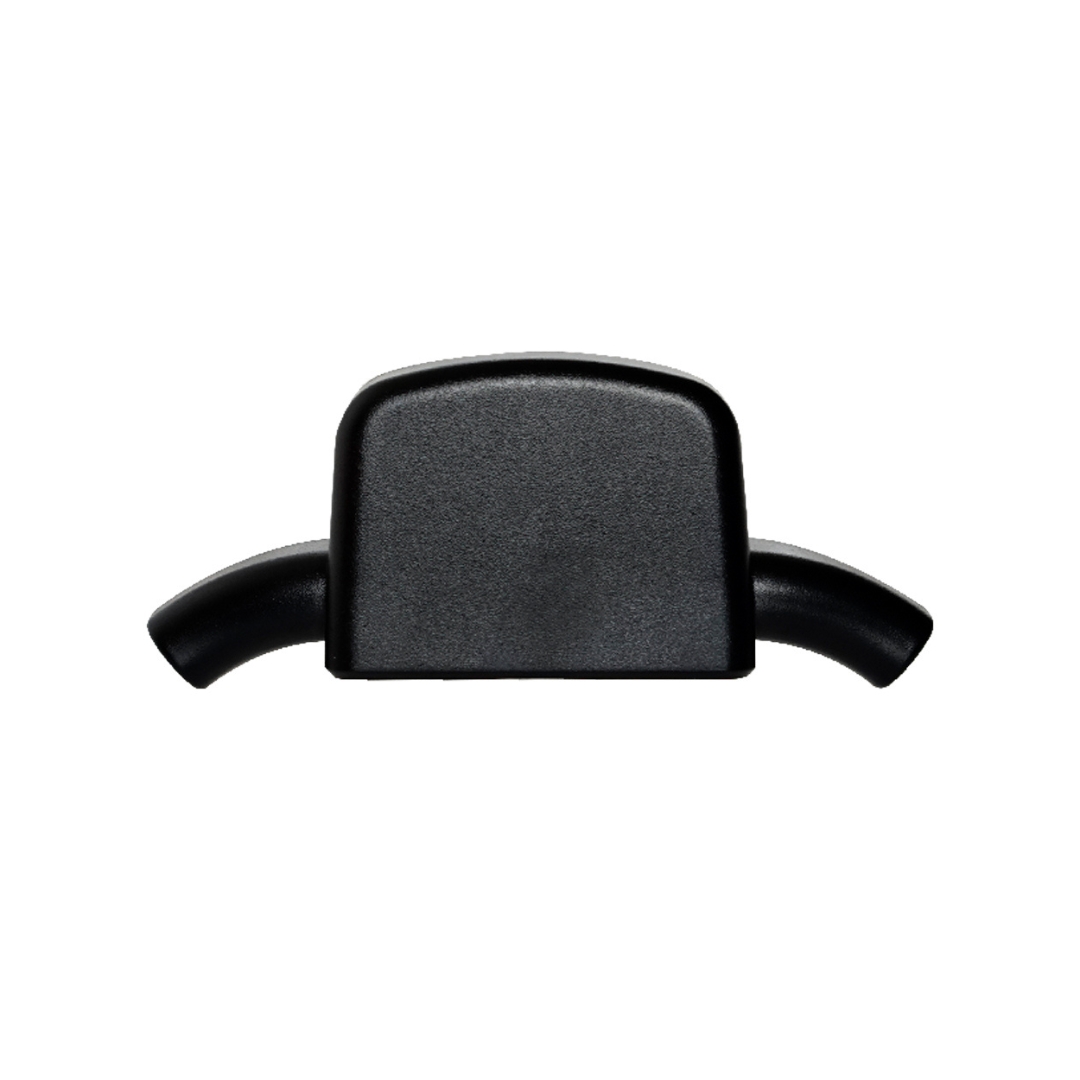

Proskit MT-7901 Optical Fiber Identifier - Image 3

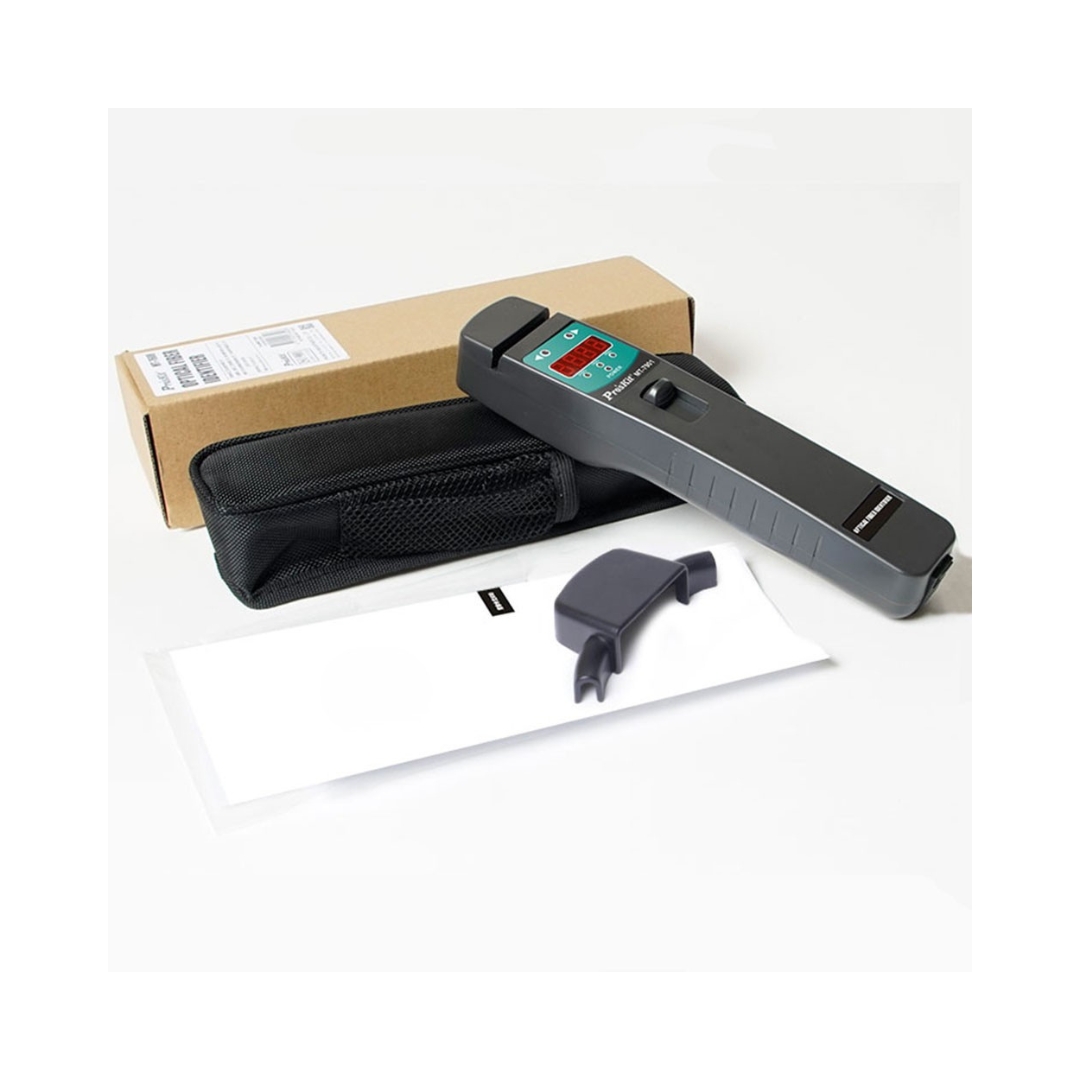

Proskit MT-7901 Optical Fiber Identifier - Image 4

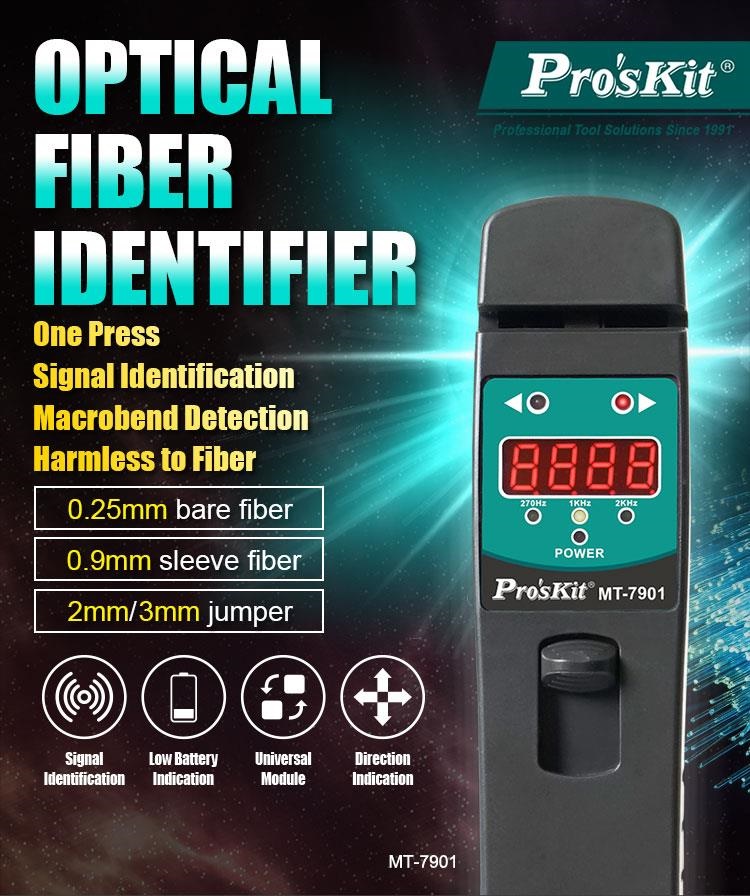

Proskit MT-7901 Optical Fiber Identifier

Original price was: ₹55,822.00.Current price is: ₹44,658.00.

  • Support to detect optical signals without disrupting traffic;Based on non-destructive technology;

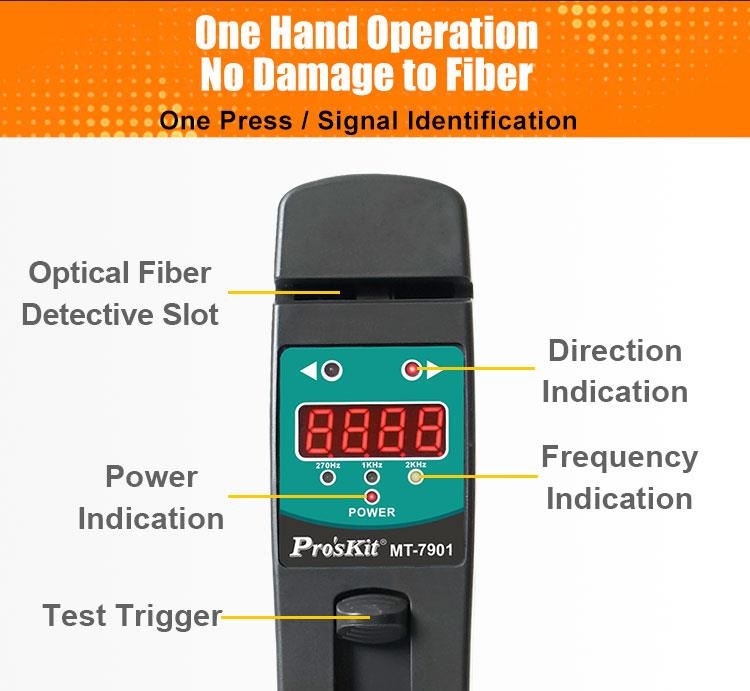

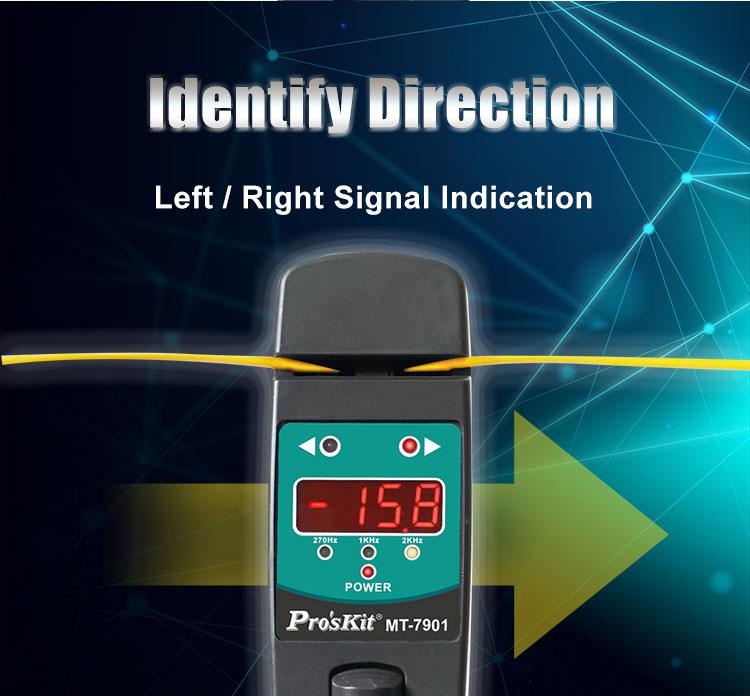

  • Indicate the signal direction in fiber

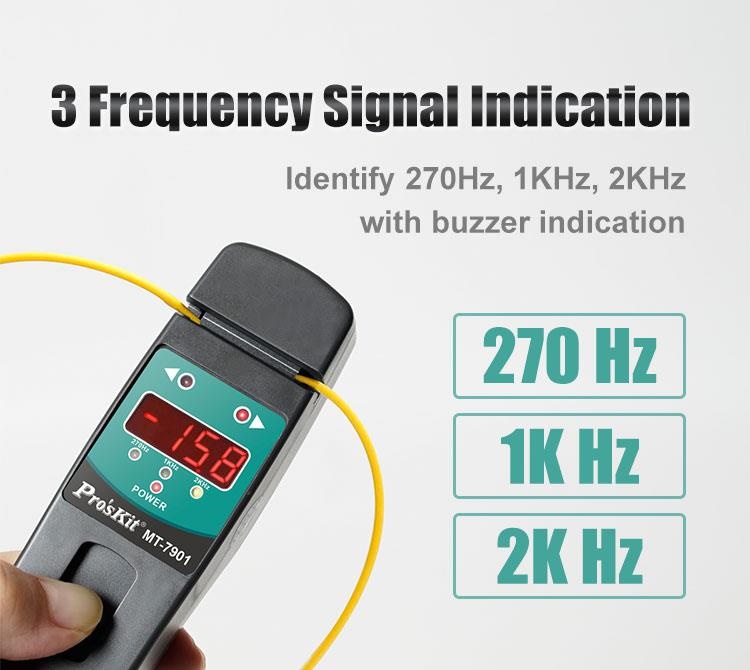

  • Detect a variety of optical tones,270Hz, 1kHz and 2kHz;

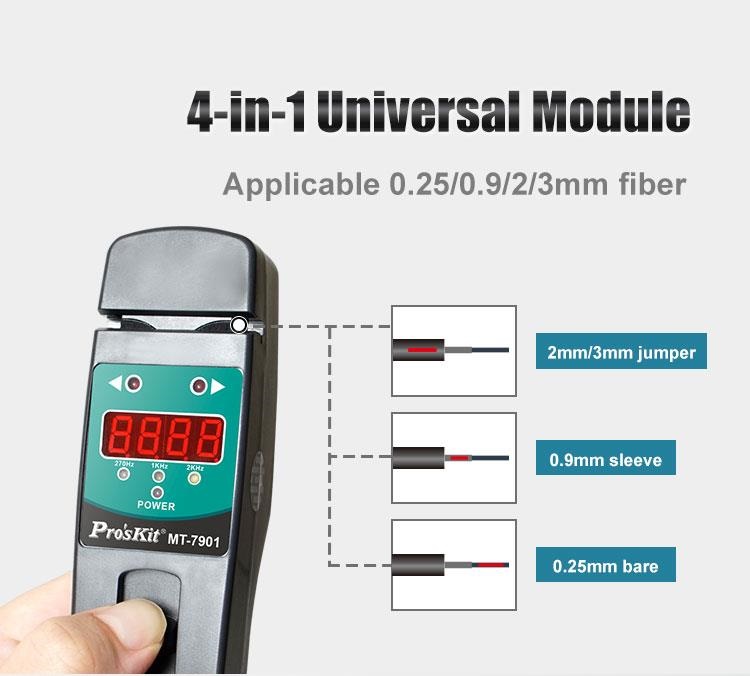

  • Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others

Out of stock

SKU: MT-7901 Categories: ,

Description

The MT-7901 Optical Fiber Identifier is a non-intrusive fiber testing device designed to identify live fiber signals without damaging the fiber. It supports a wide wavelength range of 800–1700 nm and detects multiple signal frequencies for reliable fiber identification.

Specifications:
sensitivity 250um fiber@1550nm=-35dBm

900um fiber@1550nm=-35dBm

2.5mmmm fiber@1550nm=-30dBm
Max. Input +5dBm
Wave Respond 800nm~1700nm
Clamp Loss <2.5db Typical
Power Supply AA Alkaline Cell or Ni-Mh Cell
Frequency Identify 270Hz/1KHz/2KHz
Fiber Type Dia. 250um/900um/2.5mm/3mm SM fiber
Sound Yes
Fiber Press <100KPSI
Auto Power Off Yes

Additional information

Weight 0.500 g
Dimensions 22 × 10 × 8 cm
