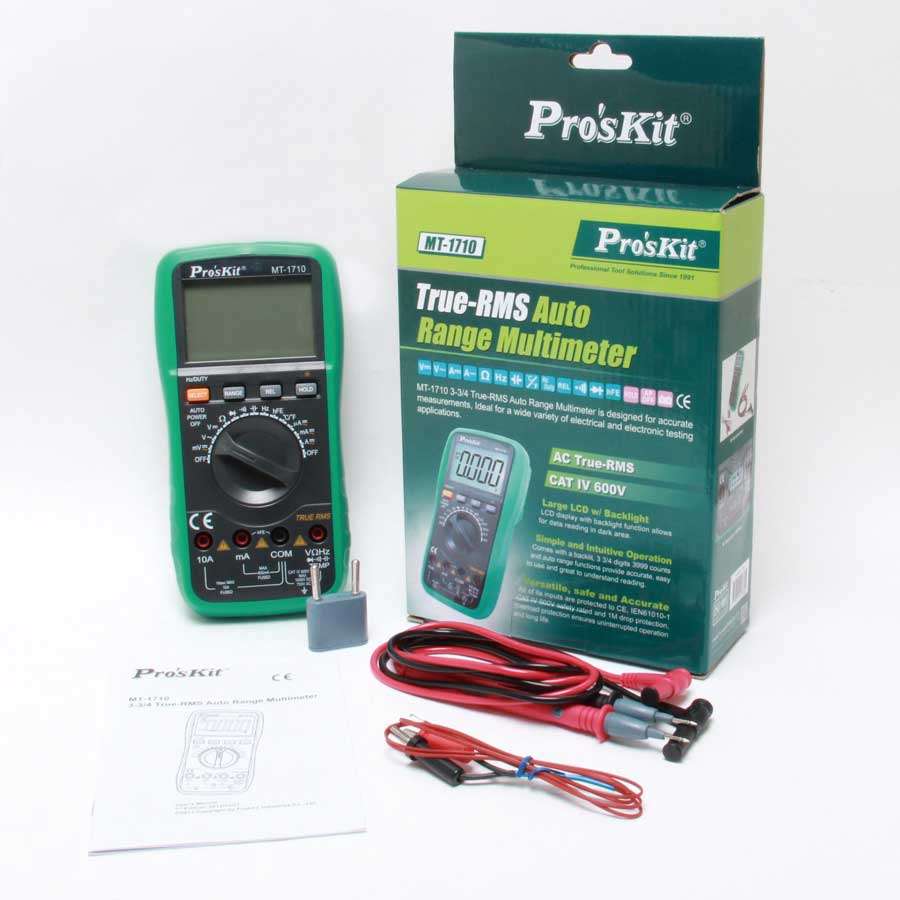

Proskit MT-1710, 3-3/4 True-RMS Auto Range Multimeter

5,064.00

Proskit MT-1710, 3-3/4 True-RMS Auto Range Multimeter

  • Brand new and unused

Description

Proskit MT-1710, 3-3/4 True-RMS Auto Range Multimeter

Features:

  • 3 3/4 Digits 3999 counts.
  • 0.5% Best accuracy.
  • Both auto and manual range.
  • Cat iv 600v safety rated
  • AC True-RMS for accurate measurements.
  • Extra functions:continuity with beeper, diode test, transistor test, duty cycle, relative reference, data hold, auto power off, low battery indication, input alert, lcd backlight.
  • Ideal for a wide variety of electrical and electronic testing applications.

Specifications:

DC Voltage (V) 400m/4/40/400V ±(0.5%+4d), 1000V ±(1.0%+6d)
AC Voltage (V)
True-RMS
40~1kHz(sine and triangular wave) and 40~200Hz(other wave):
400mV ±(1.6%+8d), 4/40/400/750V ±(1.0%+10d)
200~1kHz(other wave): 400m/4/40/400/750V ±(8.0%+15d)
DC Current (A) 400u/4000uA ±(1.0%+10d), 40m/400mA ±(1.2%+8d), 10A ±(1.2%+10d)
AC Current (A)
True-RMS
40~1kHz(sine and triangular wave) and 40~200Hz(other wave):
400u/4000u/40m/400mA ±(1.5%+10d), 10A ±(2.0%+15d)
200~1kHz(other wave): 400u/4000u/40m/400m/10A ±(8.0%+15d)
Resistance (Ω) 400Ω ±(0.8%+5d), 4k/40k/400k/4MΩ ±(0.8%+4d), 40MΩ ±(1.2%+10d)
Frequency (Hz) 100/1000/10k/100kHz ±(0.5%+10d), 1M/30MHz ±(0.5%+10d)
Capacitance (F) 10n ±(5.0%+20d), 100n/1u/10u/100uF ±(3.5%+8d), 1/10/100mF ±(5.0%+10d)
Temperature (°C/°F) -20~400°C(-4~752°F) ±(1.0%+5d), 400~1000°C (752~1832°F) ±(1.5%+15d)
Power source 9V (NEDA 1640/6F22) battery (Not included)
Size (mm) 190×95×45 mm
Individual Packing Color box

Additional information

Brand Name

Pro'sKit
