Description

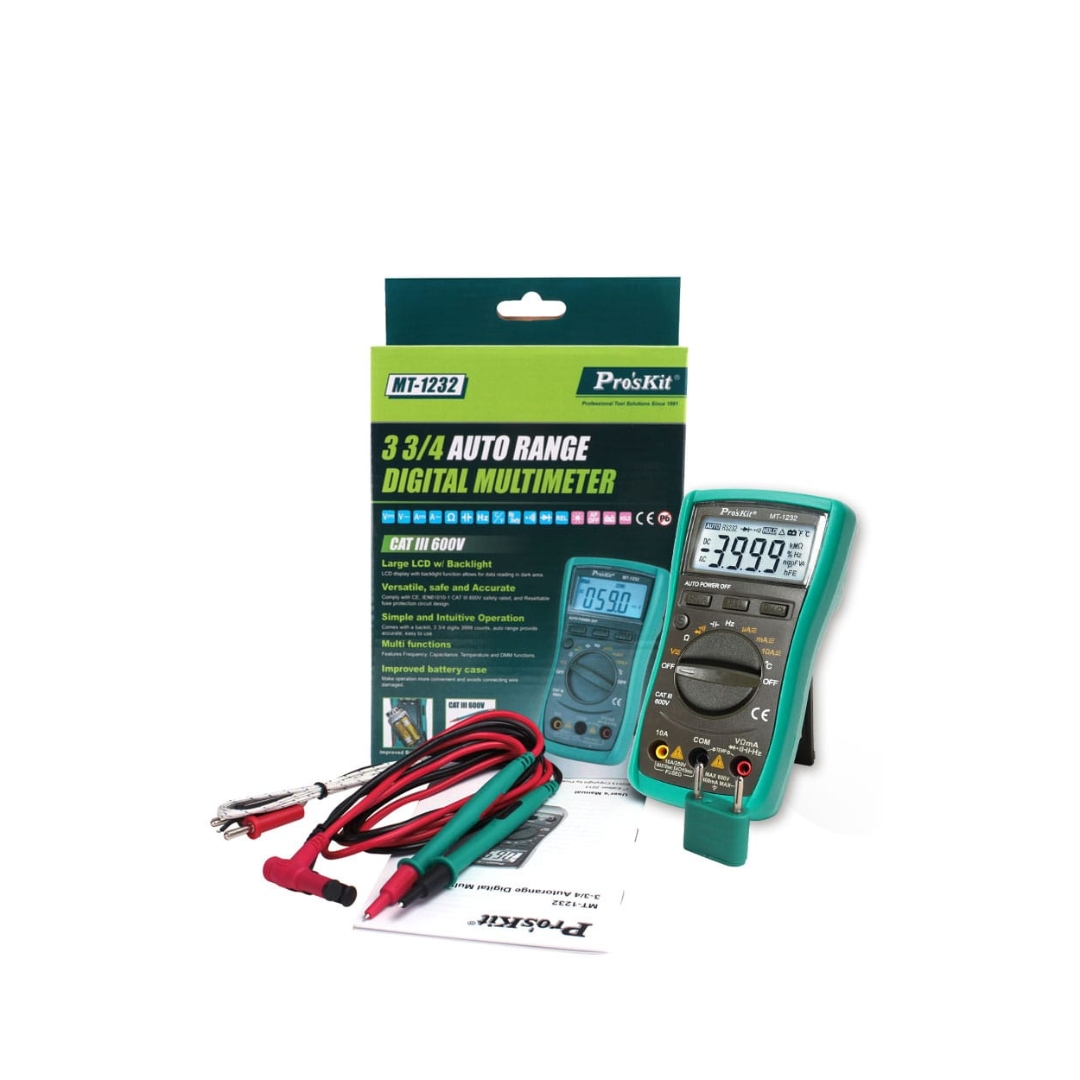

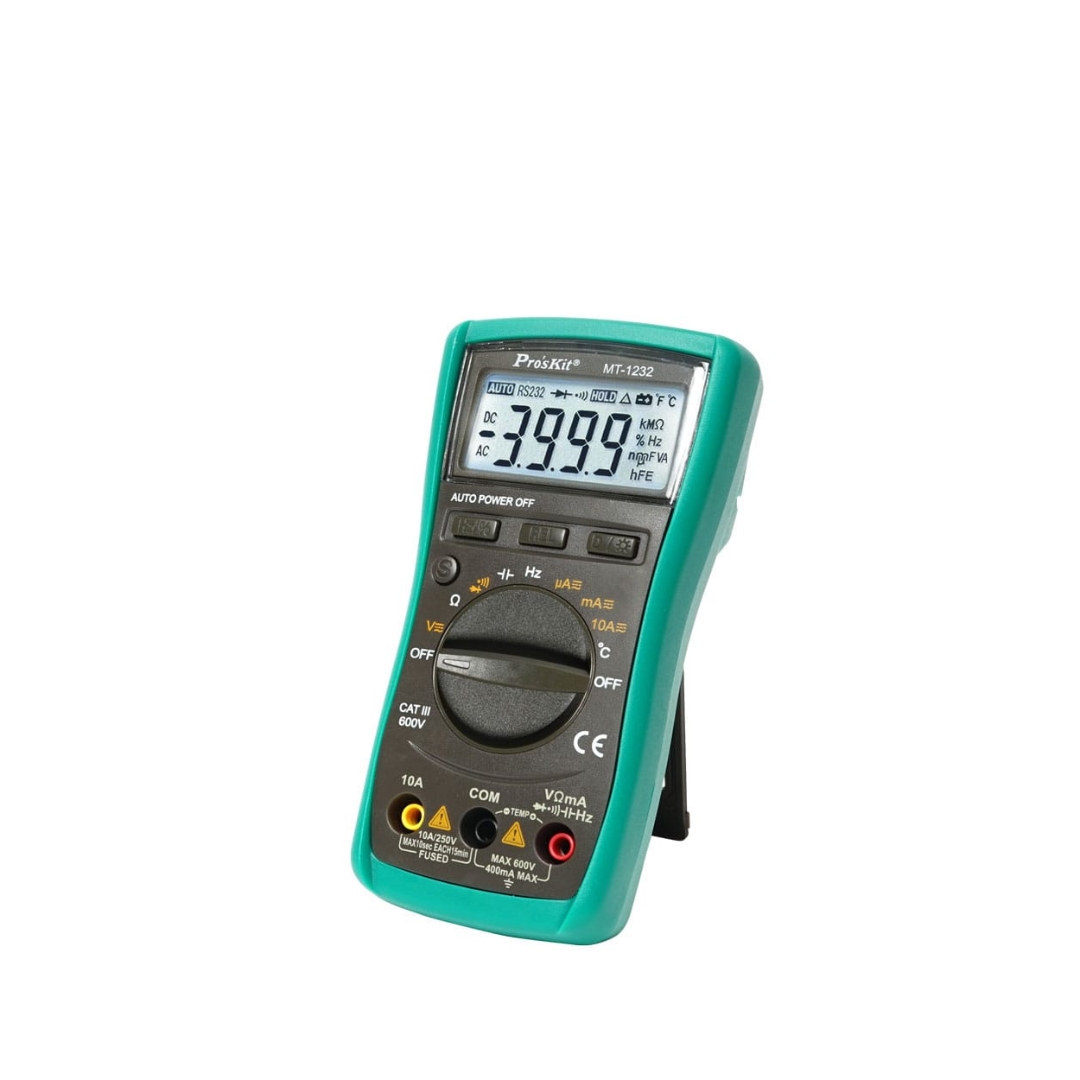

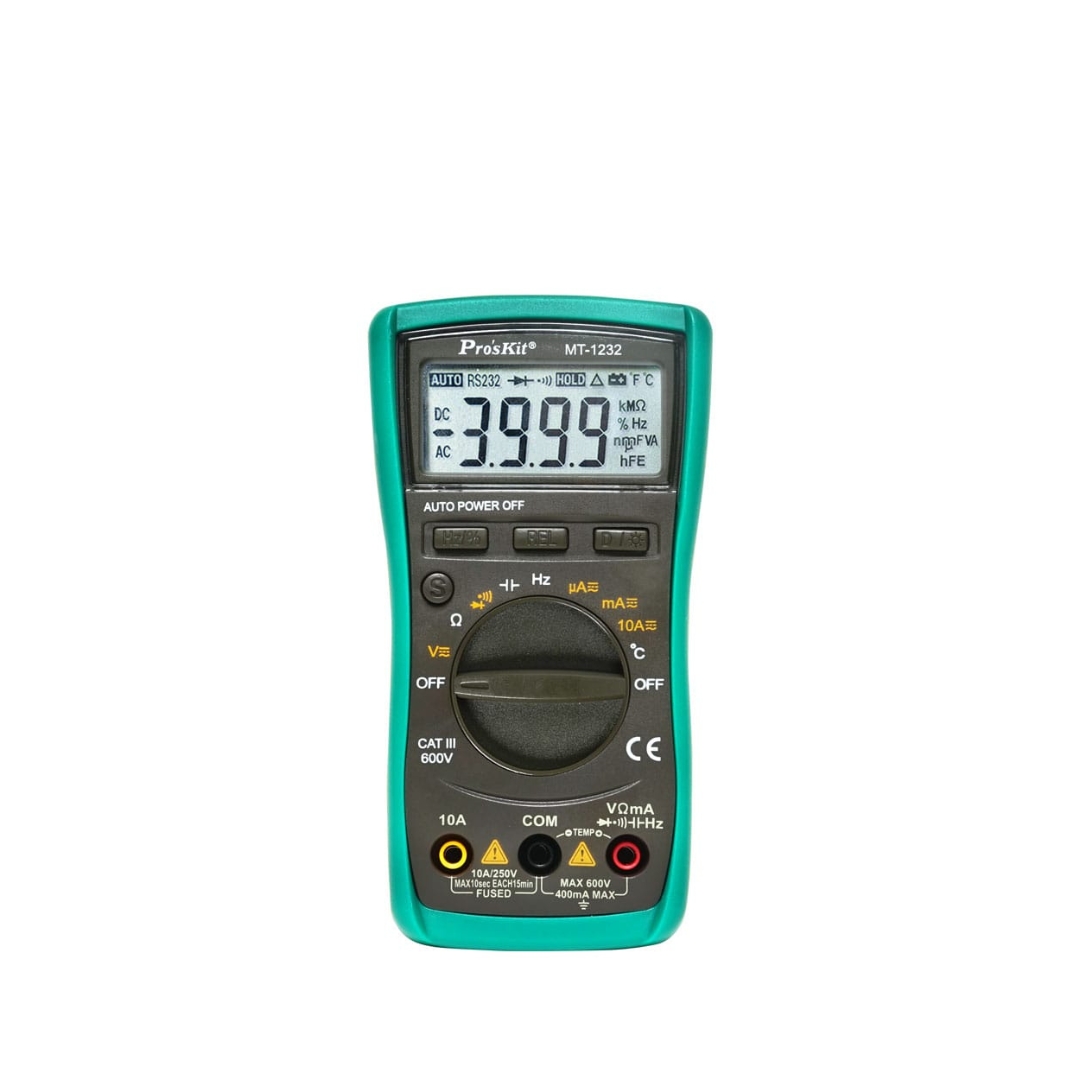

Proskit MT-1232, 3 3/4 Autorange Digital Multimeter
Description:
Auto range, Frequency / Capacitance / Temperature / DMM All in 1.
Features:
- Complies with the newest CE CATIII safety standard, 1M drop protection.
- 3 3/4 digits 3999 counts
- Large and easy to read display panel
- Overload and mis-use protection
- Auto / manual both range
- Extra functions: Relative reference, LED backlight, data hold, auto power off, low battery indication.
- Including CATIII test lead and themocouple probe.
Specification:
| Model No. | MT-1232 |
| Digits | 3 3/4 digits 3999 counts |
| Accuracy | 0.5% best accuracy |
| DCV | 400mV/4V/40V/400V ±(0.5%+4d), 600V ±(1.0%+4d) |
| ACV | 4V/40V/400V ±(0.8%+6d), 600V ±(1.0%+6d) |
| DCA | 400μA/4000μA ±(1.0%+10d), 40mA/400mA ±(1.0%+10d), 10A ±(1.2%+10d) |
| ACA | 400μA/4000μA ±(1.5%+10d), 40mA/400mA ±(1.5%+10d), 10A ±(2.5%+15d) |
| Resistance | 400Ω ±(0.8%+5d) 4k/40k/400K ±(0.8%+4d), 4MΩ ±(0.8%+4d) 40MΩ (1.2%+10d) |
| Frequency | 1/10/100Hz ±(0.5%+10d), 1K/10K/100KHz ±(0.5%+10d), 1/10MHz ±(0.5%+10d) |
| Capacitance | 4nF ±(0.5%+9d), 40nF/400nF/4μF/40μF ±(3.5%+8d), 100μF ±(5.0%+8d) |
| Temperature | (-20C~1000C) < 400C±(1.0+5d), (-20C~1000C) >= 400C±(1.5+15d) |
| Fuse | 10A/250V |
| Power source | 1.5V AA x 2 (not included) |
| Size (HXWXD)mm | 147 x 78 x 41 mm |
| Test leads model no. | MT-9907 |
| Individual packing | Color Box |
