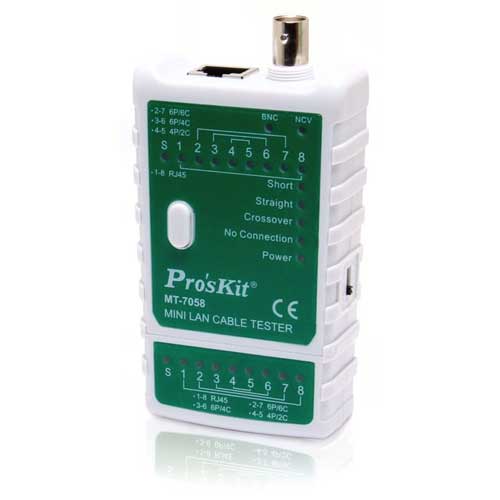

Proskit MT-7058, Mini Lan Cable Tester
Discription:
Compact & Lightweight
One Touch Testing
Non-Contact Detector
Multi Function RJ45, RJ-11/RJ-12, BNC cable tester, Voltage detector
Features:
- Complies with CE safety standard
- Automatically detect good connections, opens, crossed wires & split pairs
- Test RJ45 TIA568A/B (AT&T) 258A), 10 Base-T, Token ring, RJ-11/RJ-12 USOC and coaxial BNC cable
- Pin to pin cable map indicator
- Non-contact voltage detection for user safety
- Traces wires with tone & remote lights allows one person operation
- Compact size and lightweight design for easy to carry around
- Circuit Protection for both units to ensure the testing quality
- Low power consumption with auto power off function to preserve battery
- Long cable test more than 300 meters
Specification:
| Specifications | |
| Function | Ground or shielded test |
| Function | 1~8 LED pin to pin indicator |
| No Connection indicator | |
| Crossover indicator | |
| Straight cable indicator | |
| Cable short indicator | |
| BNC cable indicator | |
| Non-contact detector(AC60V~240V 60Hz) | |
| Low battery indicator | |
| Beeper indicator | |
| Size | 100×60×24.5 mm |
| Power | 12V AE23 x 1pcs |

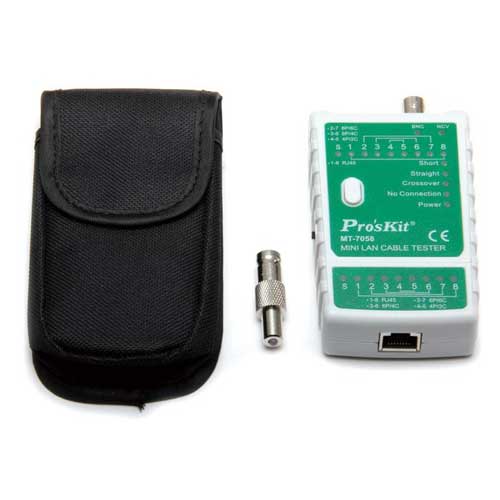

| Accessory | Pouch bag x 1, BNC connector x 1 |
