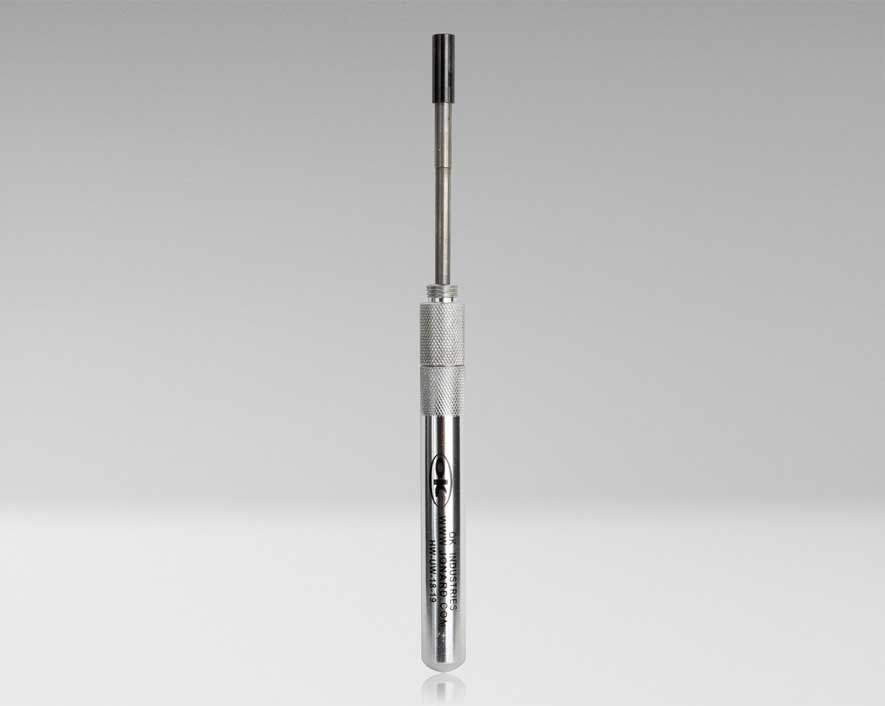

Jonard HW-UW-18-19, Wrap-Unwrap Tool, 18-19 AWG
Description:
This two sided wire wrapping and unwrapping tool is intended to be two tools in one. It is designed to produce perfect wire wrapping connections. Precision, long-lasting tools for use where occasional wire wraps are required or where power wire-wrapping tools are not practical. Compact and convenient. To switch from wire wrapping to unwrapping takes only seconds – just a quick change of the cap from one end to the other.
Specifications:
| Wrap Type | Regular |
| Wire Gauge | 18-19 AWG (1.00-0.91 mm) |
| Unwrap Terminal Hole Diameter | .075″ (1.90mm) |
| Unwrap Terminal Hole Depth | 1″ (25.40mm) |
| Wrap Outside Diameter | .250″ (6.35mm) |
| Wrap Post Size | 0.045″ (1.14 mm) |
| Unwrap Wire Gauge | 18-19 AWG (1.0-0.91 mm) |
| Wrap Terminal Hole Diameter | .075″ (1.90mm) |
| Wrap Terminal Hole Depth | 1″ (25.40mm) |
| Unwrap Outside Diameter | .187″ (4.74mm) |
| Handle Type | Aluminum |
| Weight | 0.161 lbs (73.03g) |
