Description

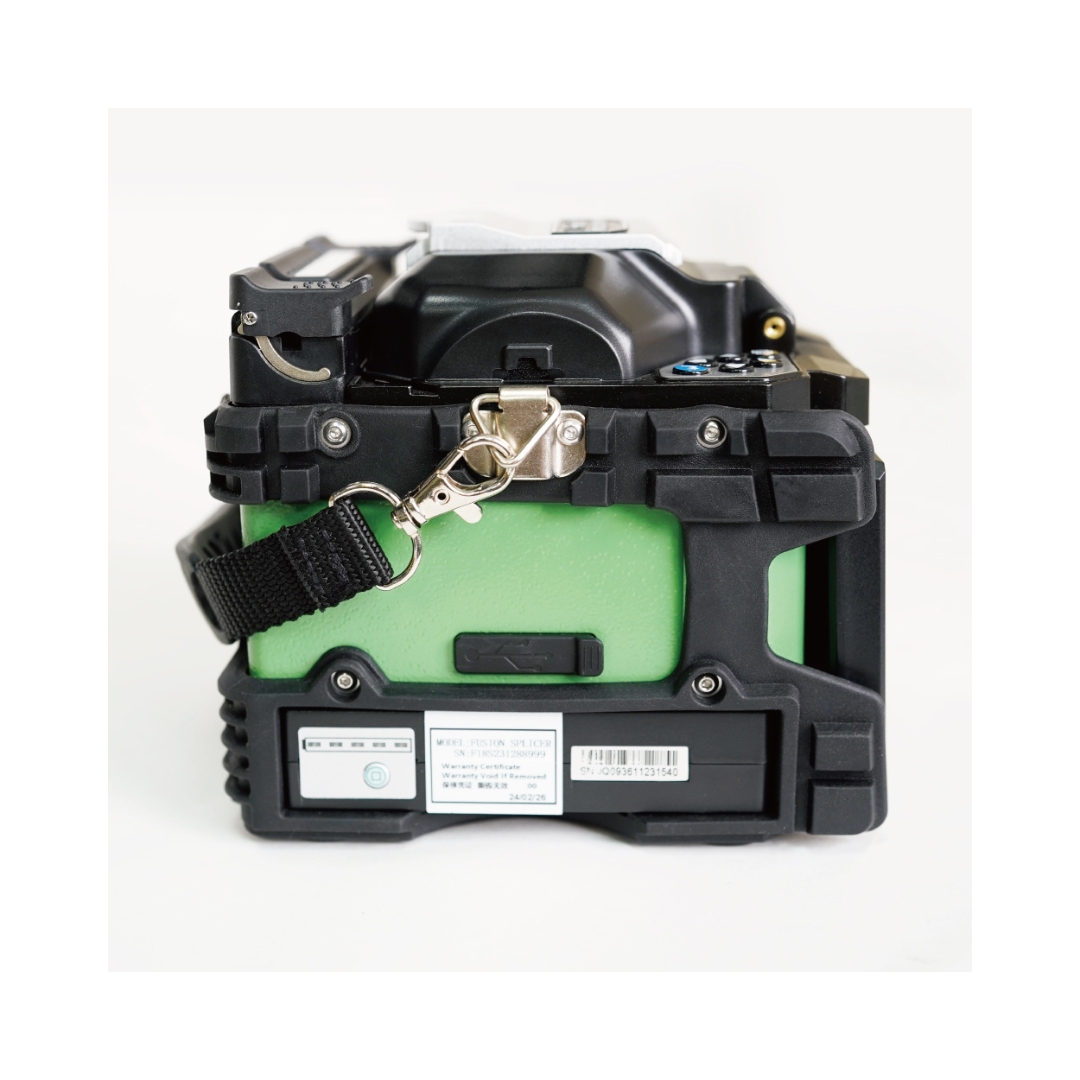

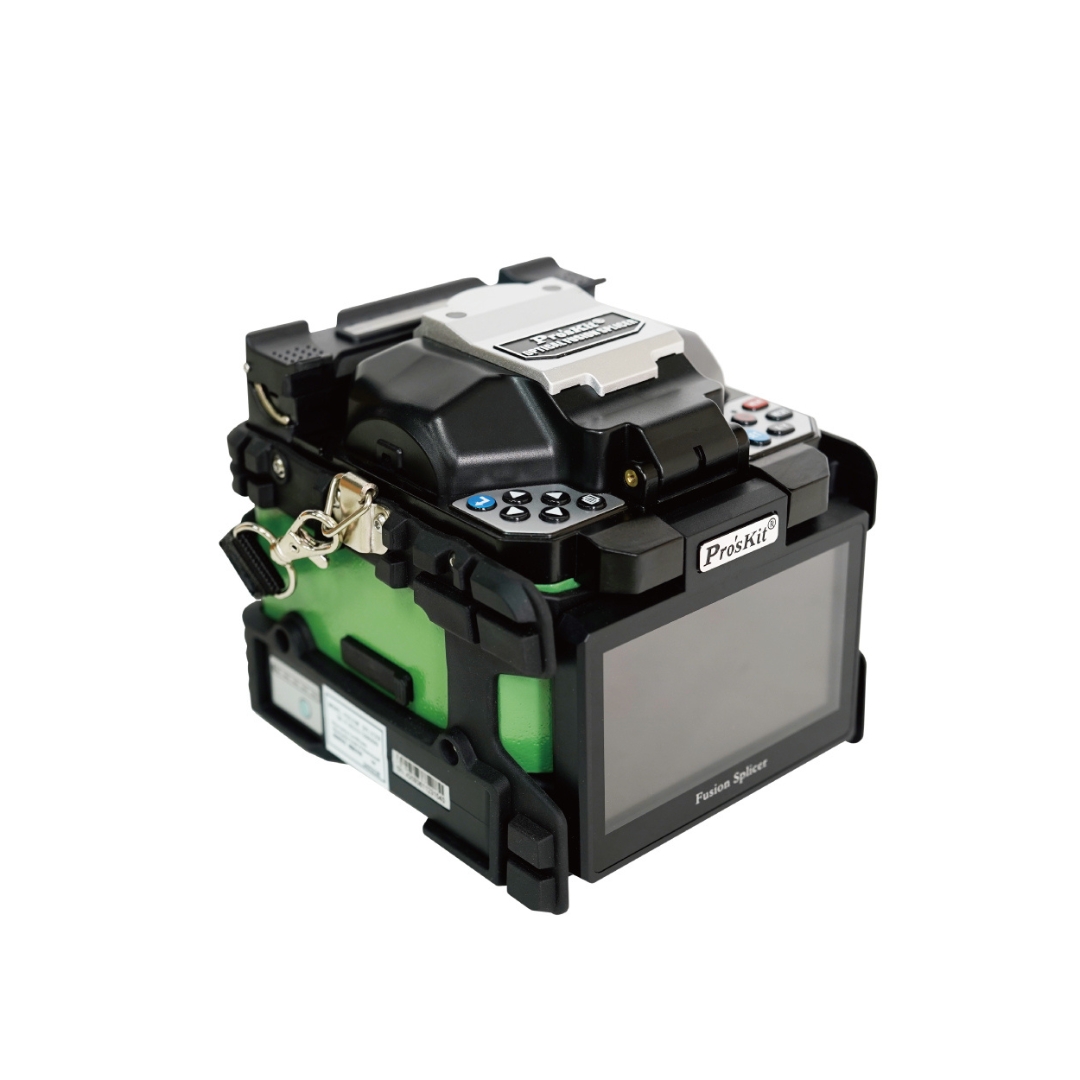

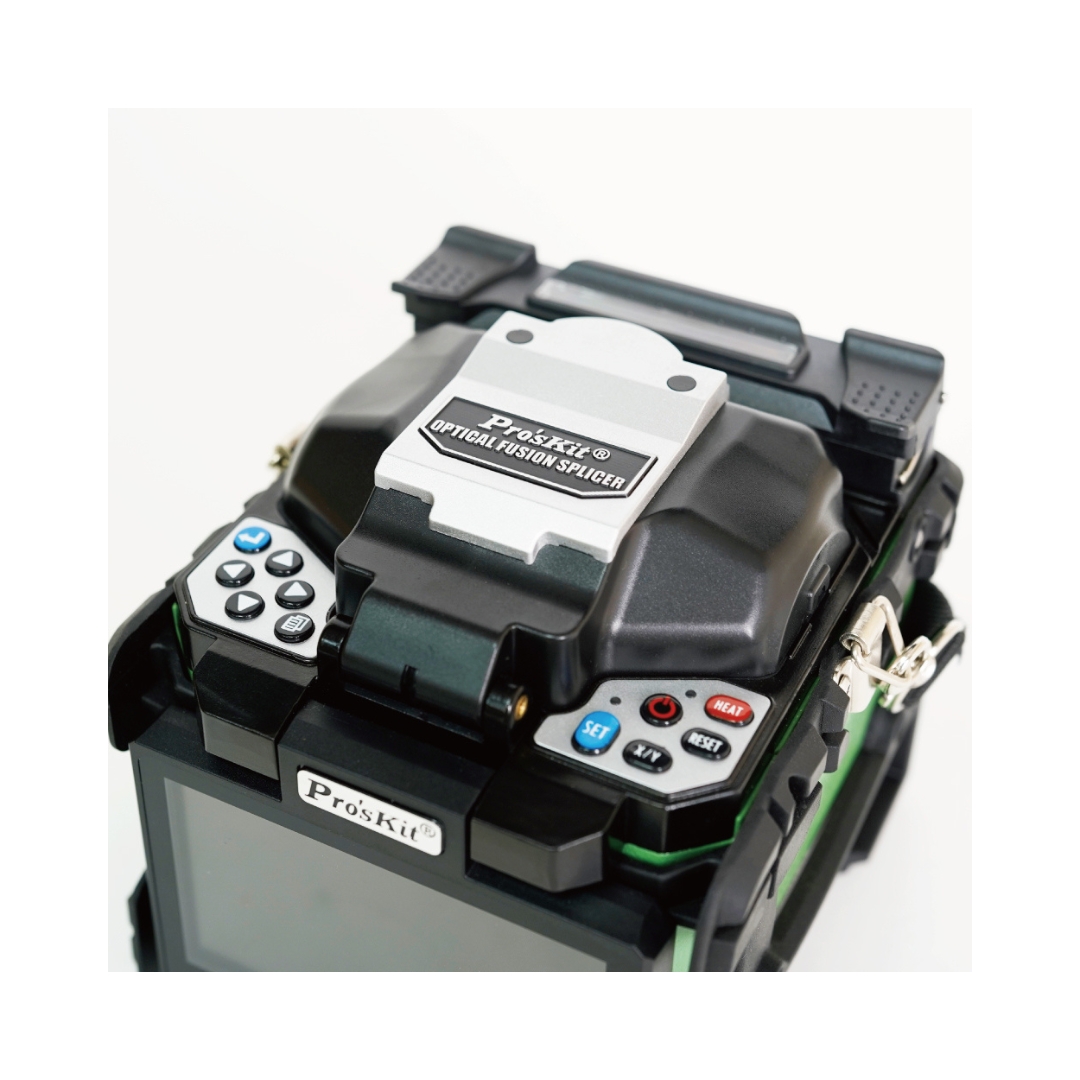

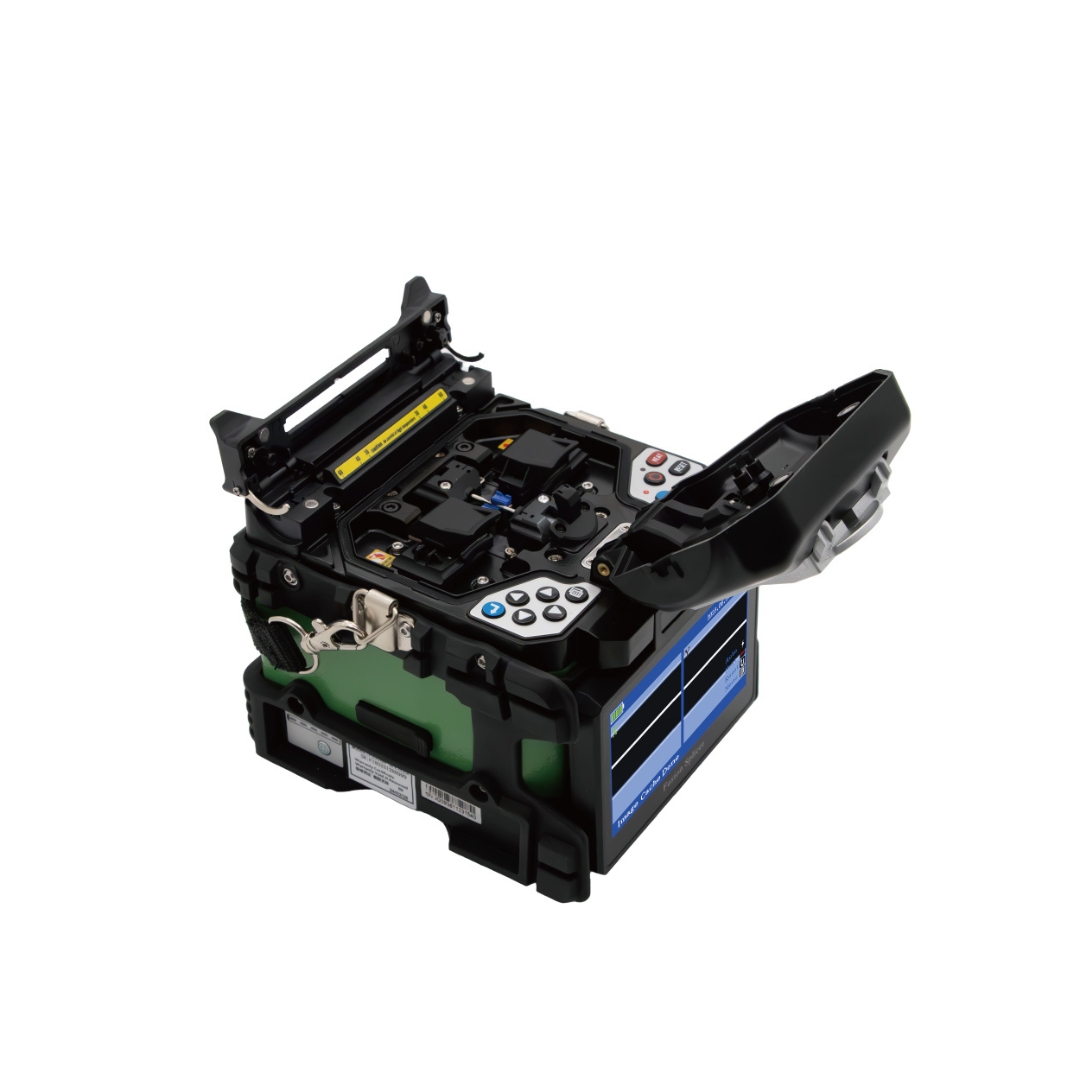

The TE-6801 F-W Fusion Splicer is a high-performance fiber optic splicing machine designed for fast, accurate, and reliable fiber splicing. With core-to-core alignment, a 9-second splice time and a high-resolution LCD display, it is ideal for FTTH installation, telecommunications, and network maintenance.
Features:
• 4.3″ high-res color LCD, adjustable display orientation
• 6 motors, core to core alignment
• Splice: 9s, Heat: 30s
• Rechargeable lithium battery for 220 cycles
• 520x magnification for precise X/Y axis alignment
• Advanced image processing, core alignment accuracy
• Wind and dust-resistant design
• Modes: Auto, Manual, Full-Auto
• Micro USB charging
• Stores 6,000 splice results
• Patented 3-in-1 and SC/LC/FC connectors
Specifications:
| Specification | Details |
| Model No. | TE-6801 F (English) / G (Chinese)-W |
| Applicable Fiber | SM, MM, NZDS, EDF |
| Average Splice Loss | 0.015 dB (SM), 0.01 dB (MM), 0.04 dB (NZDS), 0.04 dB (EDF) |
| Splice Time | 9 sec (SM fiber) |
| Suitable Fiber Cleave Length | 10–16 mm |
| Cladding Diameter | 80–150 μm |
| Coating Diameter | 100–1000 μm |
| Return Loss | ≥60 dB |
| Fiber Image Magnification | 520× (X or Y view), 260× (X & Y view) |
| Working Motors | 6 Motors |
| Fiber Alignment | Core-to-Core |
| Fiber Recognition | G651 / G652 (654) / G655 |
| Tension Test | 2.0 N (200 gf) |
| Splice Programs | 50 Groups |
| Electrode Life | 5,000 Splices |
| Protection Sleeve Length | 20–60 mm |
| Splice Result Storage | 6,000 Records |
| Splice Image Storage | 100 Images |
| Display | 4.3″ High-Resolution Color LCD |
| Communication Port | Micro USB |
| Working Light | 1 LED Light |
| Power Indicator | 5-LED Battery Indicator |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 0–95% RH |
| Operating Altitude | 0–5000 m |
| Standard Plug | F/G Type |
| Battery | Lithium Battery, 10.95V / 5.2A |
| AC Adapter | Input: AC 100–240V, 50/60Hz; Output: DC 15V / 5A |
| Dimensions (W × D × H) | 149 × 135 × 135 mm |
| Weight | 1.75 kg (with battery), 1.4 kg (without battery) |
| Standard Package | Fusion Splicer, AC Adapter, Battery, Spare Electrodes, 25 pcs 60 mm Heat Shrink Sleeves, Cooling Tray, Quick Reference Guide, Carrying Case with Strap |
