Description

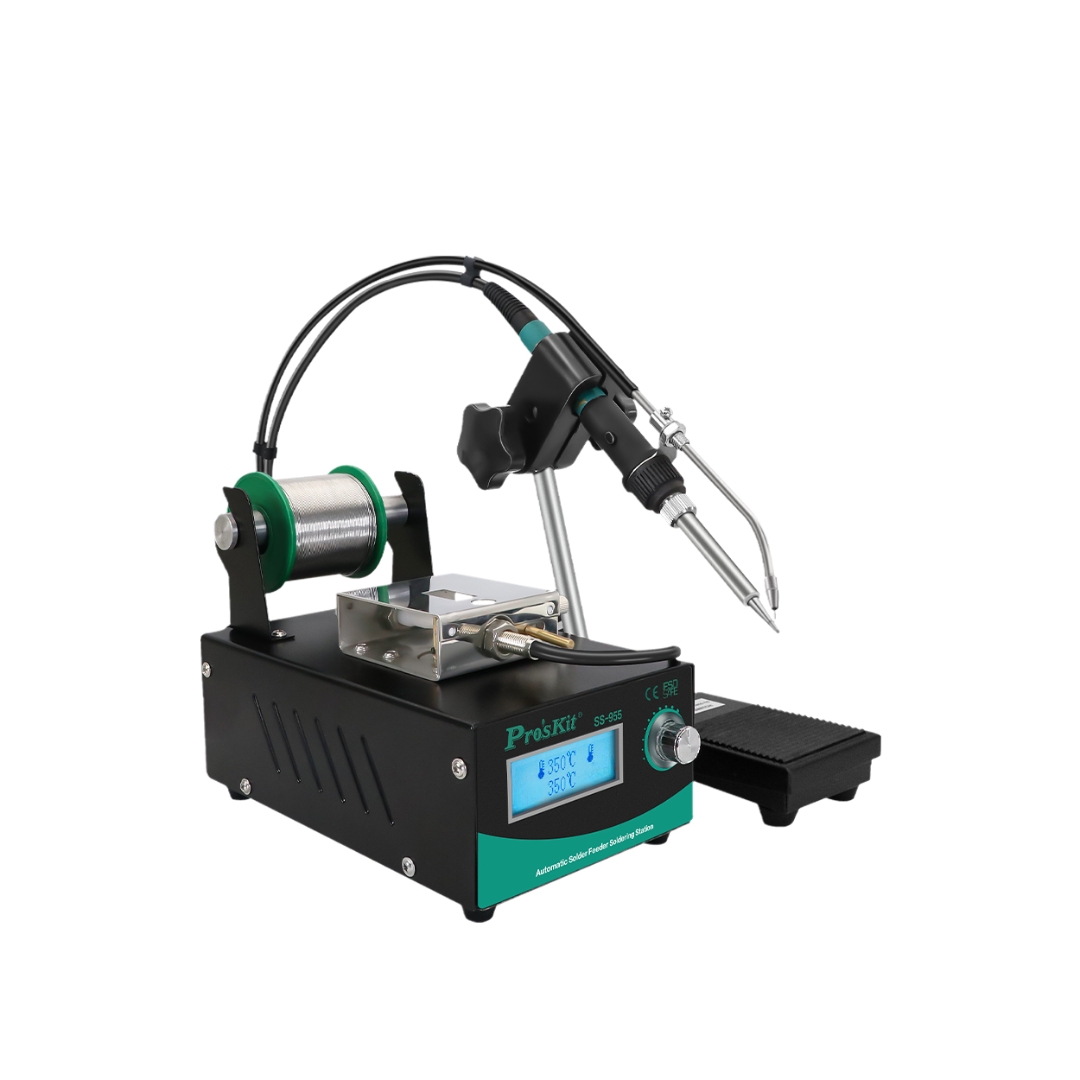

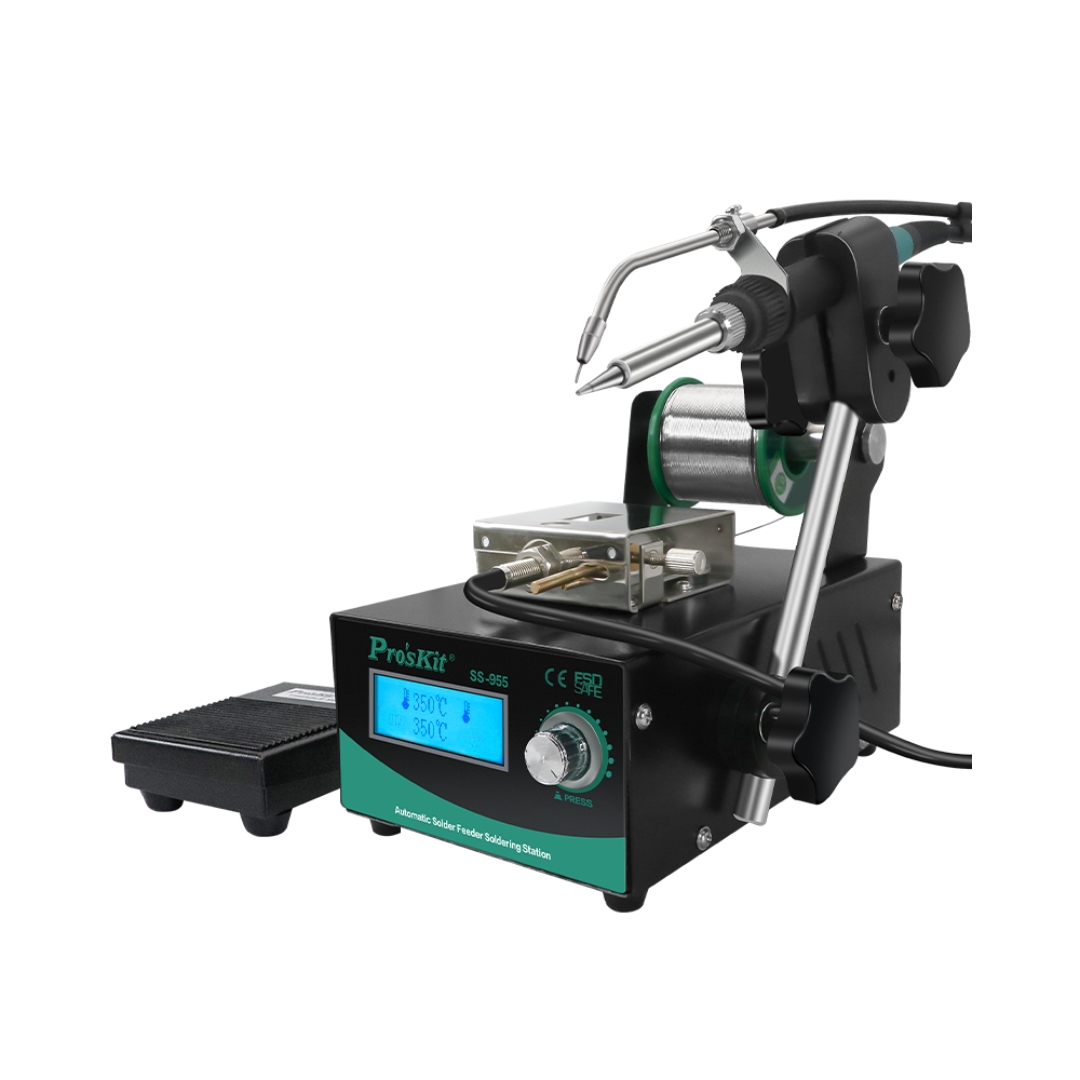

The Automatic Solder Feeder is designed for fast, accurate and consistent soldering. It features a 60W temperature-controlled soldering iron, automatic solder wire feeding, LCD display and adjustable settings, making it ideal for electronics assembly, production and repair.
Features:

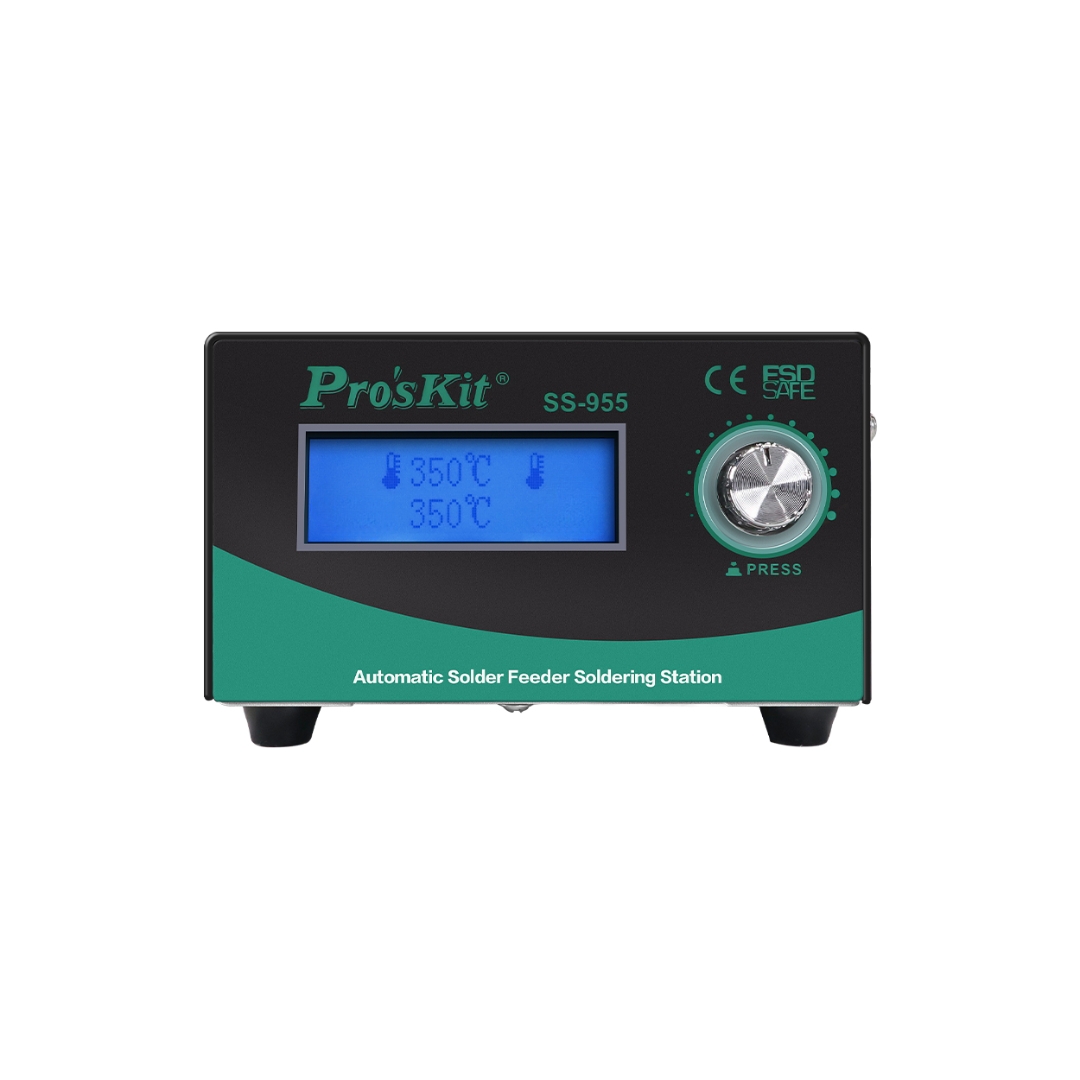

- LCD display for clear monitoring and easy parameter setup.
- Encoder knob enables quick and precise setting adjustment.
- Adjustable soldering iron temperature from 200°C to 480°C.
- Supports manual and automatic solder wire feeding modes.
- Compatible with Ø0.5–1.5 mm solder wire.
- Adjustable wire feed length up to 99.5 mm.
- Adjustable wire feed speed from 1–40 mm/s.
- Adjustable interval time and return wire length for precise solder control.
- Foot switch and hand control operation for flexible use.
- Built-in temperature calibration for consistent soldering performance.
- Password lock prevents unauthorized setting changes.
- Restore settings function for quick factory reset.
- Sleep mode extends soldering tip life and reduces power consumption.
- ESD-safe (anti-static) socket protects sensitive electronic components.
- Compact, lightweight design suitable for production lines and repair work.
Specifications:
| Model No. | SS-955B |
| Automatic Solder Feeder Voltage | 220V–240V, 50Hz |
| Automatic Solder Feeder Power | Soldering Iron (60W) |
| Automatic Solder Feeder Soldering Iron Temperature | 200–480°C |
| Automatic Solder Feeder Display | LCD |
| Automatic Solder Feeder Setting | Encoder Knob |
| Automatic Solder Feeder Calibration Function | Yes |
| Automatic Solder Feeder Password Lock Function | Yes |
| Automatic Solder Feeder Restore Settings | Yes |
| Automatic Solder Feeder Sleep Function | Yes |
| Automatic Solder Feeder Transformer | 60W (Copper Wire) |
| Automatic Solder Feeder Anti-Static Socket | Ø4.2 mm (Impedance: 1 MΩ) |
| Soldering Iron Working Voltage | AC 24V |
| Solder Wire Feed Applicable Solder Wire | Ø0.5–1.5 mm |
| Solder Wire Feed Control | Foot / Hand |
| Solder Wire Feed Working Mode | Manual (0) / Auto (1–9) |
| Solder Wire Feed Wire Feeding Length (LEN) | 0–99.5 mm |
| Solder Wire Feed Wire Feeding Speed (SPD) | 1–40 mm/s |
| Solder Wire Feed Interval Time (INR) | 0–9.5 s |
| Solder Wire Feed Return Wire Length (RET) | 0–19.5 mm |
| Automatic Solder Feeder Dimensions / Weight | 270 × 230 × 175 mm / About 3.5 kg |
