Description

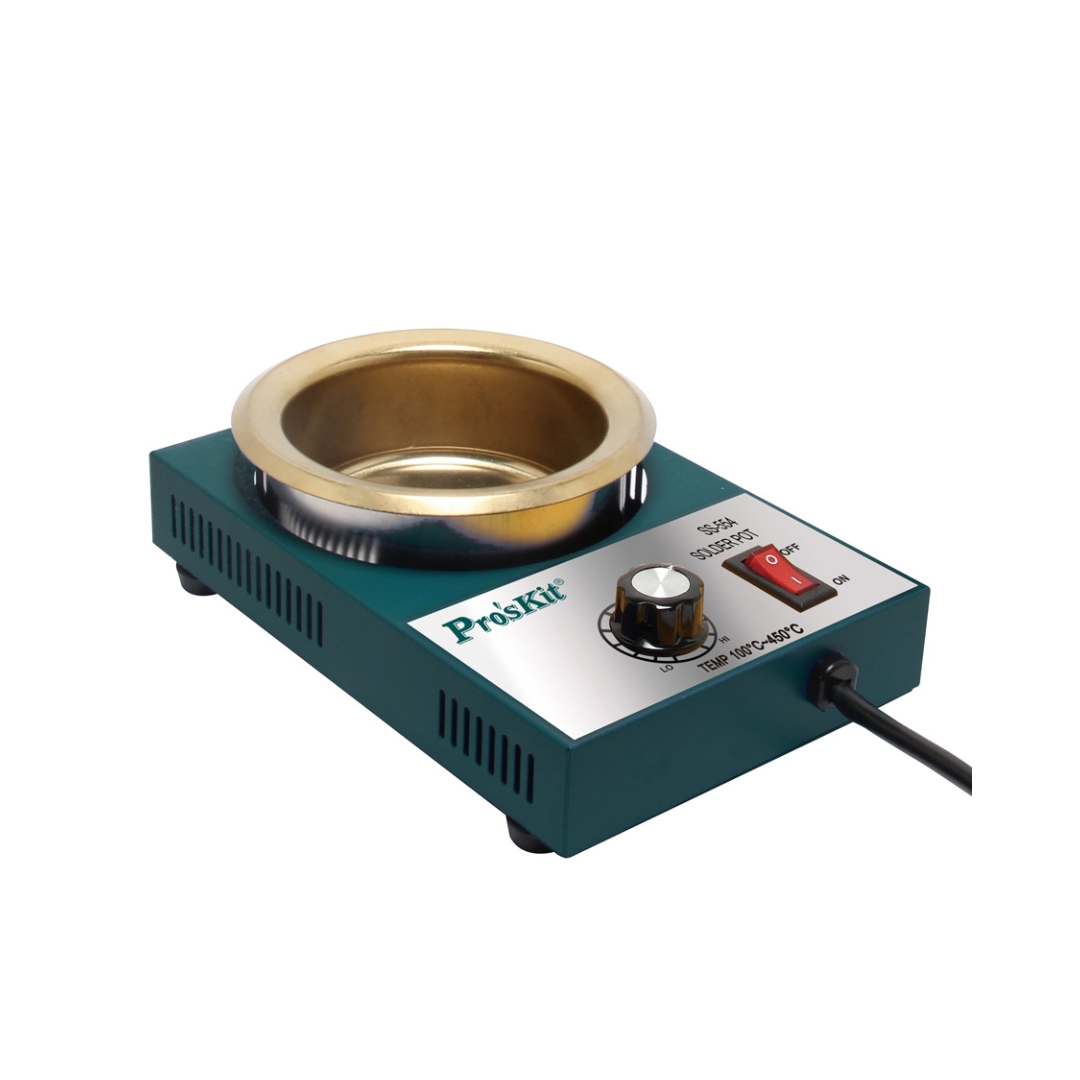

The Solder Pot is designed for fast and efficient melting of solder for wire tinning, PCB assembly and electronic production. Featuring a stainless steel crucible with titanium plating, it provides excellent durability, stable temperature control and reliable performance for continuous industrial use.
Features:
- 250W high-performance heating for fast solder melting.
- Adjustable temperature range from 100°C to 450°C.
- Stainless steel crucible with titanium plating for enhanced durability and corrosion resistance.
- 1.6 kg solder capacity for continuous operation.
- Approx. 20-minute melting time at maximum temperature.
- Uniform heat distribution for consistent solder quality.
- Compact and durable design for industrial and workshop use.
- Operates on AC 220–240V, 50/60Hz.
- Replaceable crucible and heating element for easy maintenance.
Specifications:
| Model No. | SS-553B |
| Power Consumption | 250W |
| Temperature Range | 100℃~450℃ |
| Crucible Size (mm) | Ø80x40H(mm) |
| Crucible material | Stainless steel with titanium plating |
| Melting Time (Max.setting) | Approx.20mins |
| Solder capacity | 1.6kg |
| Voltage | 220V~240V 50/60Hz |
| Standard plug | B type |
| Dimension (LxWxH) | 210x140x65 (mm) |
| Crucible | 5SS-553-POT |
| Heater | 5SS-553-H |
