Description

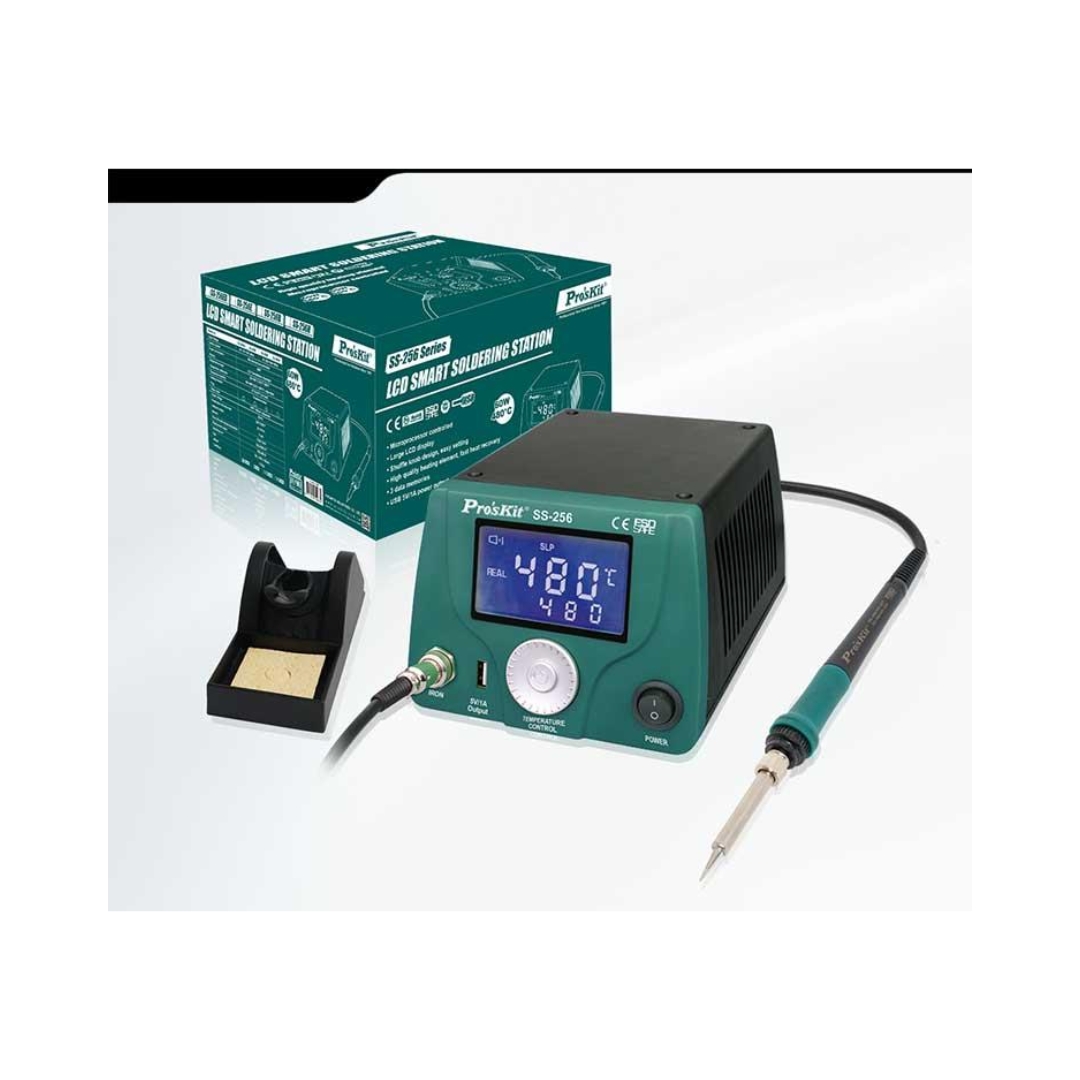

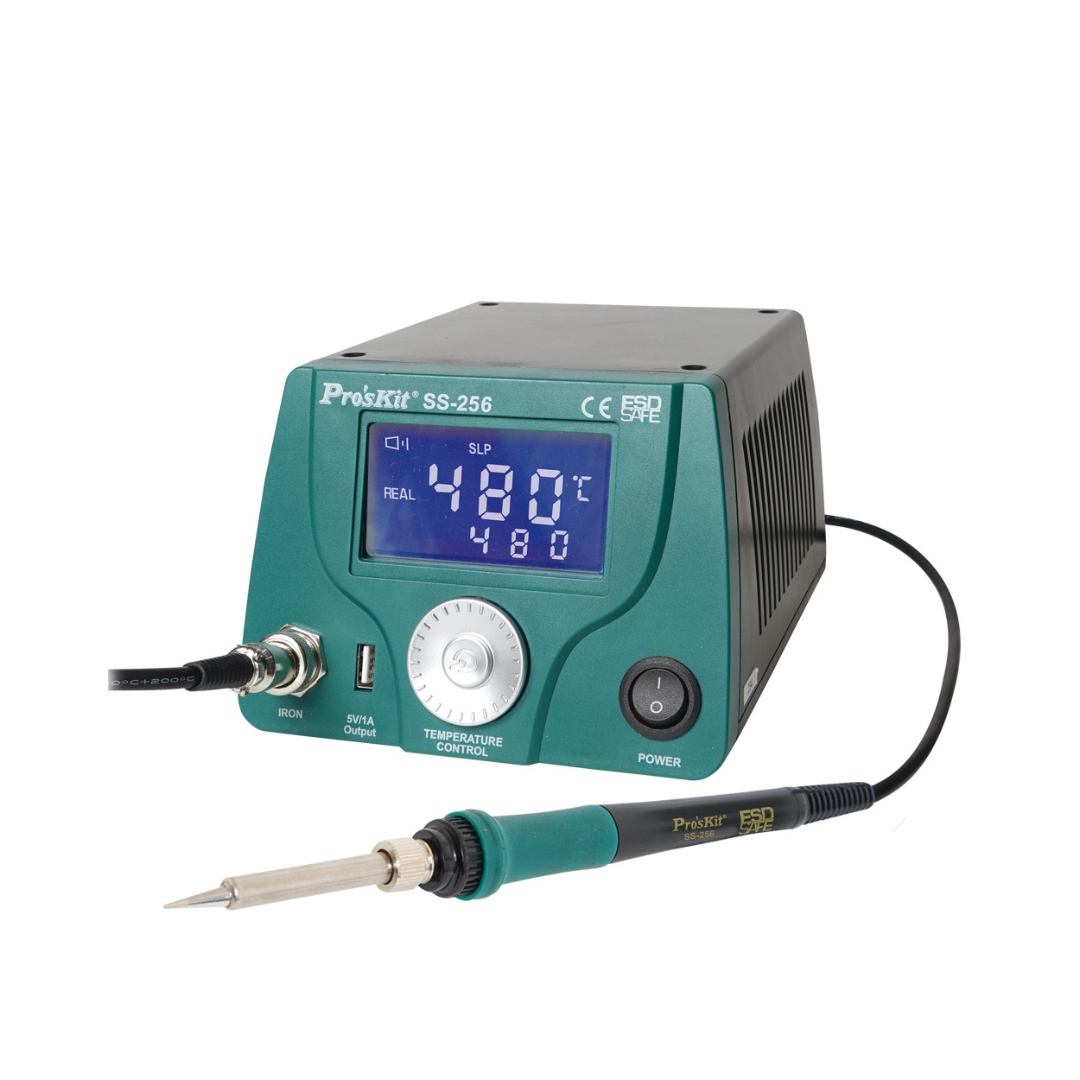

The LCD Smart Soldering Station is a high-performance, microprocessor-controlled soldering station designed for precise temperature control and reliable soldering. Featuring a large backlit LCD display, fast-heating ceramic element and intelligent functions, it is ideal for electronics assembly, repair and maintenance.
Features:
- Microprocessor controlled
- Features best performance and accurate temperature control.
- Temperature calibration function
- Auto sleep and wake up function, system lock, tip calibration and low consumption.
Large LCD display with shuffle knob design
- Large screen with backlight, LCD brightness is adjustable.
- Designed with functional manual and shuffle knob for easy setting, more convenient and user friendly.
Alumina ceramic heating element, fast heat recovery
- Comes with high end alumina ceramic heating element for fast heat recovery.
3 data memories
- Store and recall 3 numbers of frequently used temperature.
USB 5V/1A power output
- Built-in DC 5V/1A USB port for power supply.
Specifications:
| Model No. | SS-256B |
| Input voltage | AC 220~240V 50Hz |
| Control system | Microprocessor-controlled |
| Power consumption | 60W |
| Display | LCD 73mmX40mm, Backlight |
| Temperature range | 200~480°C /392°F~896°F |
| Temperature calibration | 100~699°C(212~1290°F), Adjustable |
| Temperature stability | ±2°C/±36°F (no load) |
| Heating element | Alumina ceramic |
| Plug | B |
| Sleep mode | OFF/1-240min adjustable |
| Output voltage | 24VAC |
| Temperature of sleep mode | 200°C/392°F |
| USB port output | DC 5V/1A |
| Memory | 3 sets |
| Tip-to-Ground resistance/potential | ≦2Ω/≦2mV |
| Replacement heater | 9SS-900N-HT |
| Soldering iron | 9SS-256-SI |
| Size | 180 x 150 x 106mm |
| Certificate | CE, RoHS |
