Description

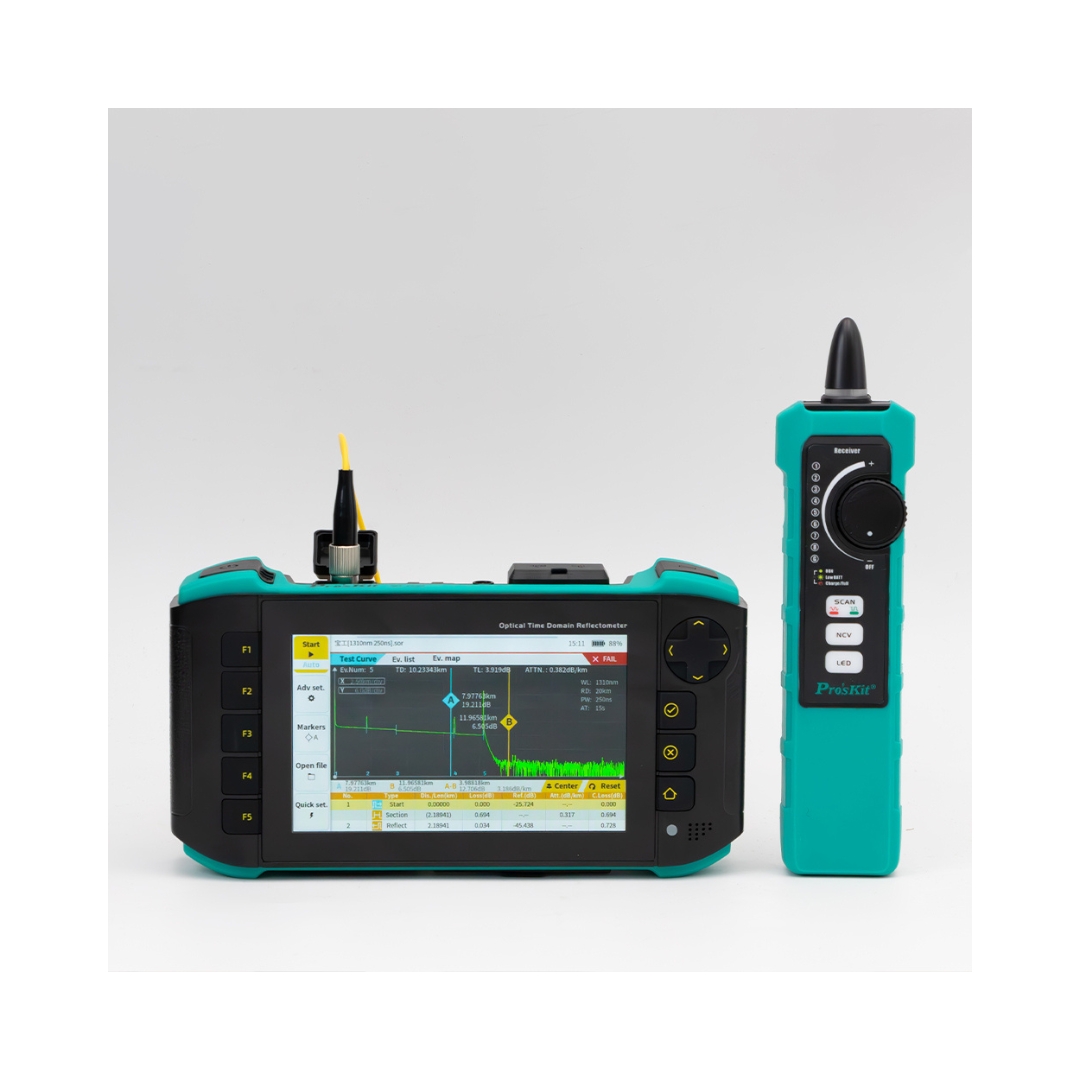

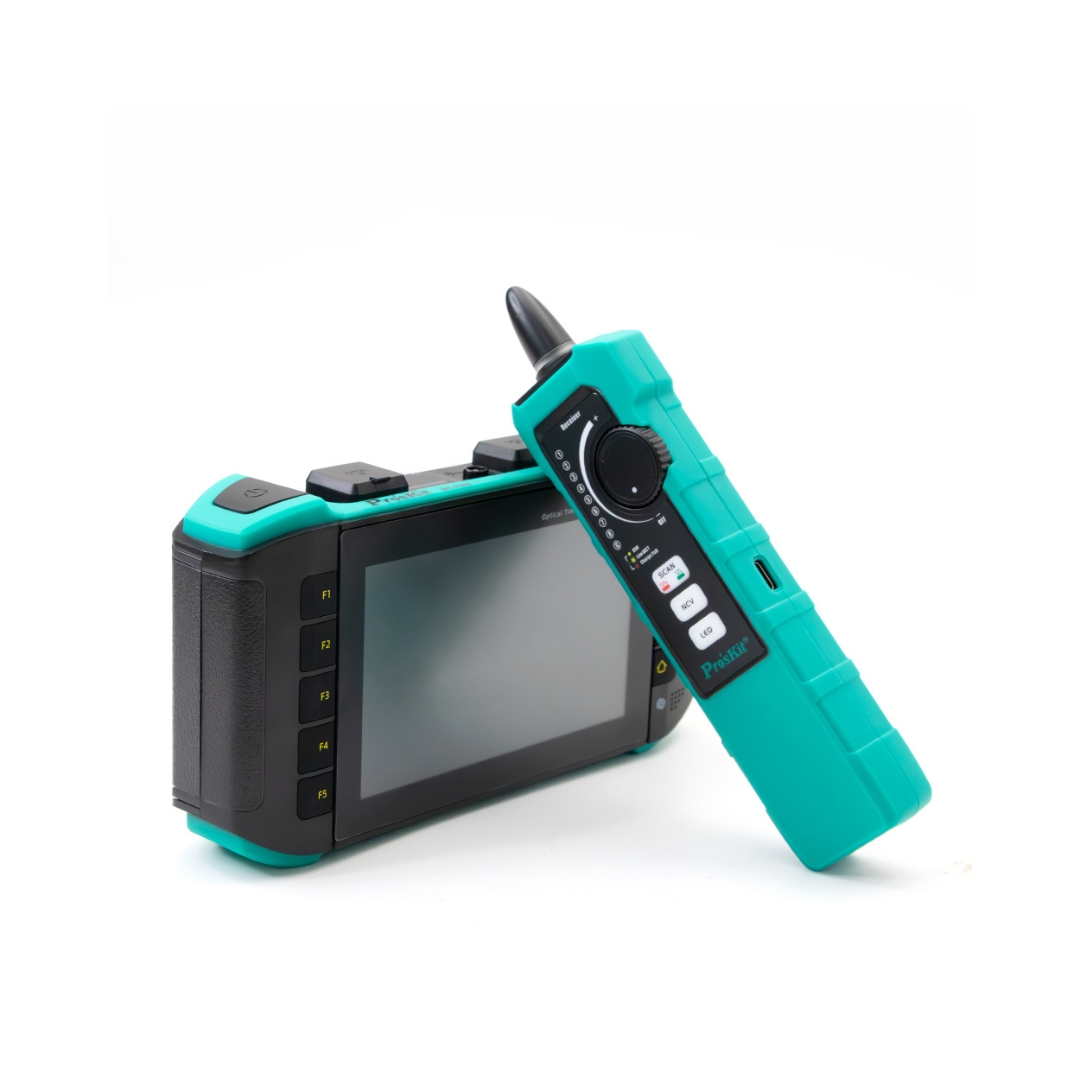

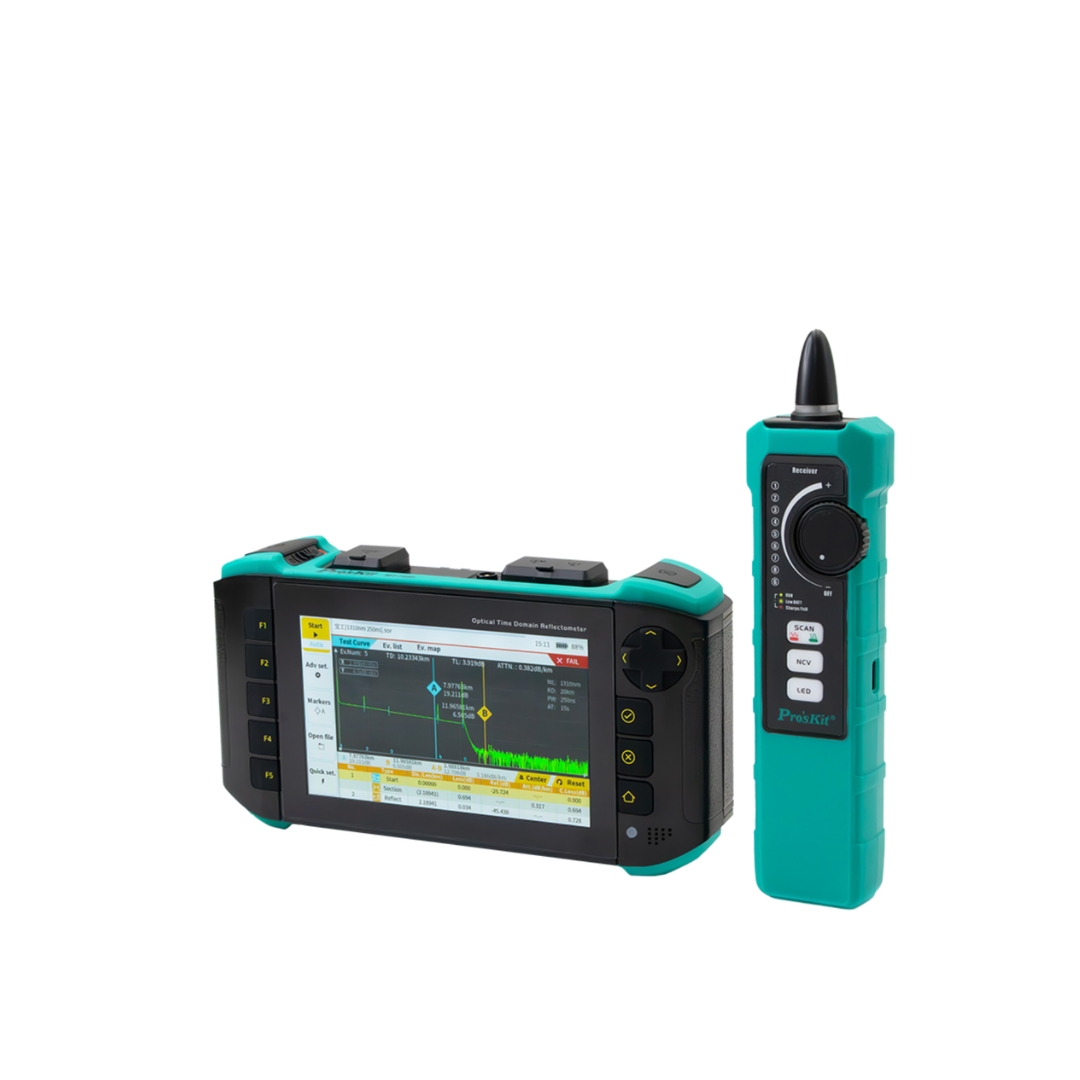

The MT-7650 Multifunctional OTDR combines multiple optical test functions in one portable device, featuring a high-definition touch display and long-lasting battery for efficient network diagnostics.
Features:
• All-in-one machine
• 5-inch high-definition touch color screen
• 5000 mAh high endurance lithium battery
Specifications:
| Model Number | MT-7650 |
| Dynamic Range | 26/24dB |
| Testing Range | 0.1~150km |
| Wavelength | 1310±20nm, 1550±20nm |
| OTDR/OLS Interface | FC/UPC(Selectable SC/UPC; FC/APC; SC/APC) |
| Pulse Width | 5ns~20μs |
| Testing Time | 5~180s |
| Testing Mode | Average, Real-time, Automatic |
| Attenuation Blind Zone | 8m |
| Event Dead Zone | 2m |
| Sampling Point | 16000 |
| OPM | -50~+26dBm, 2.5mm Universal Interface, 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
| Accuracy | (1310/1550nm)±0.2dB, (850/980/1300/1490/1625/1650nm)±0.3dB, (1270/1577nm)±1dB |
| VFL | 10mW |
| OLS Output Power | 1310nm/1550nm >-5dBm |
| Display Screen | 5-inch Color Screen (Resolution 800×480, Capacitive Touch Screen Supporting Two-point Touch) |
| Interface Type | USB-A Interface, Type-C Interface, RJ45 Ethernet Port, TF Interface |
| LED Lighting | Yes |
| Storage Capacity | 500 Entries, Supports Expansion up to 32GB TF Card, Supports USB Flash Drive Storage |
| Energy Saving Mode | Automatic Shutdown Timer (Can be Cancelled when inactive) |
| Language | Chinese, English |
| iOLA | Yes |
| Optical Detection | Yes |
| Optical Testing | NO |
| RJ45 Tracker | Yes |
| Sequence | Yes |
| Distance | Yes |
| Distance Accuracy | ±15% |
| Screenshot Function | Yes |
| Power Bank Function | Yes |
| Battery | 3.7V/5000mAh Lithium Battery |
| Battery Life | Standby Time > 9 hours, Measurement Time > 5 hours |
| Charging Power | Supports a Maximum of 5V/2A |
| Operating Temperature | 0°C~+50°C |
| Storage Environment | Ambient Temperature: -20°C~+70°C, Ambient Humidity: Humidity < 90%RH |
| Packing List | Bag, Circuit Tracer ×1, Headset ×1, RJ45 Ethernet Cable ×1, RJ45 Alligator Clip ×1, 2A Charger ×1, Charging Cable(Type-C) ×1, A Pack of Cotton Swabs, Software Disc, User Manual, Test Report |
| Size | 190mm × 100mm × 45mm (LWH) |
| Weight | About 500g |
