Description

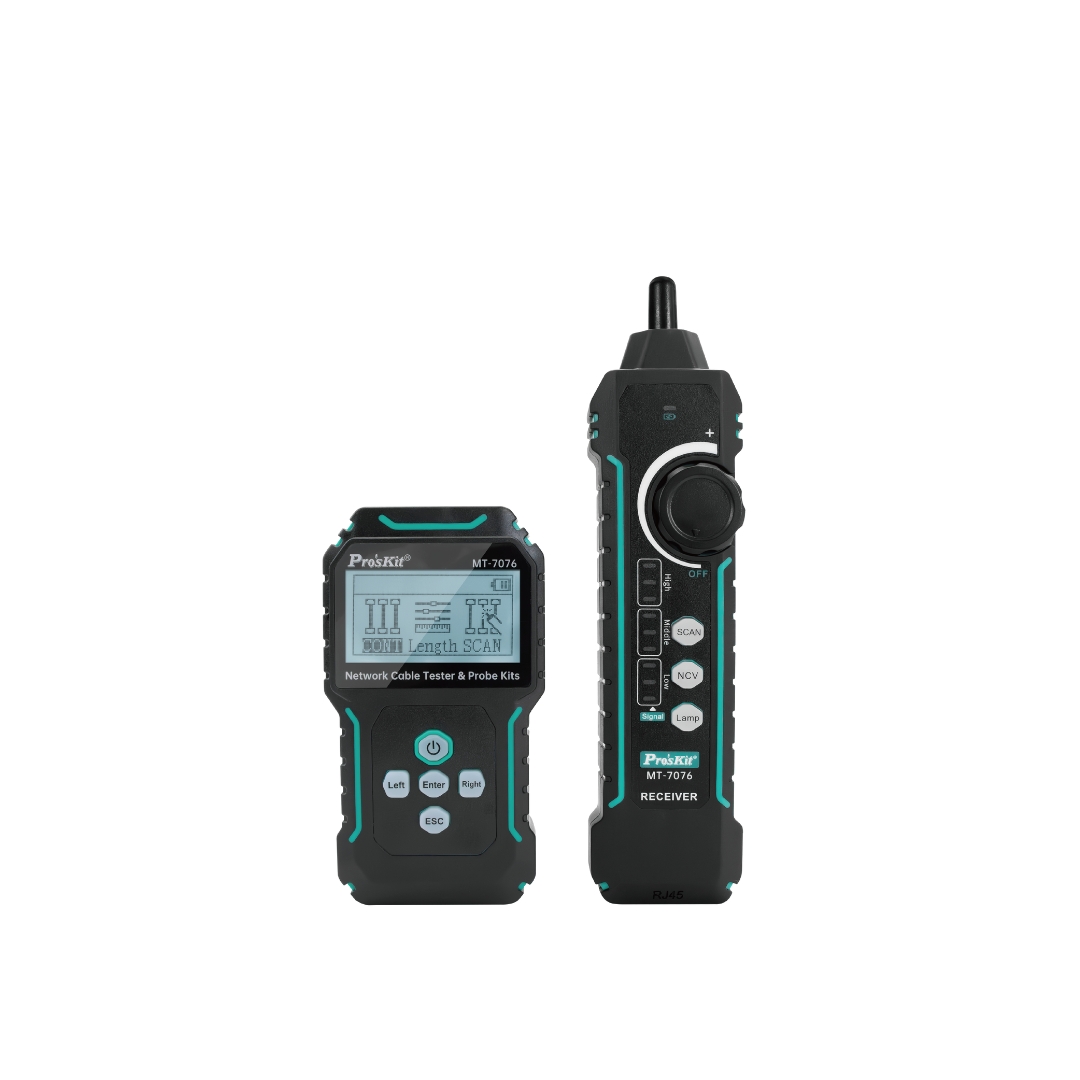

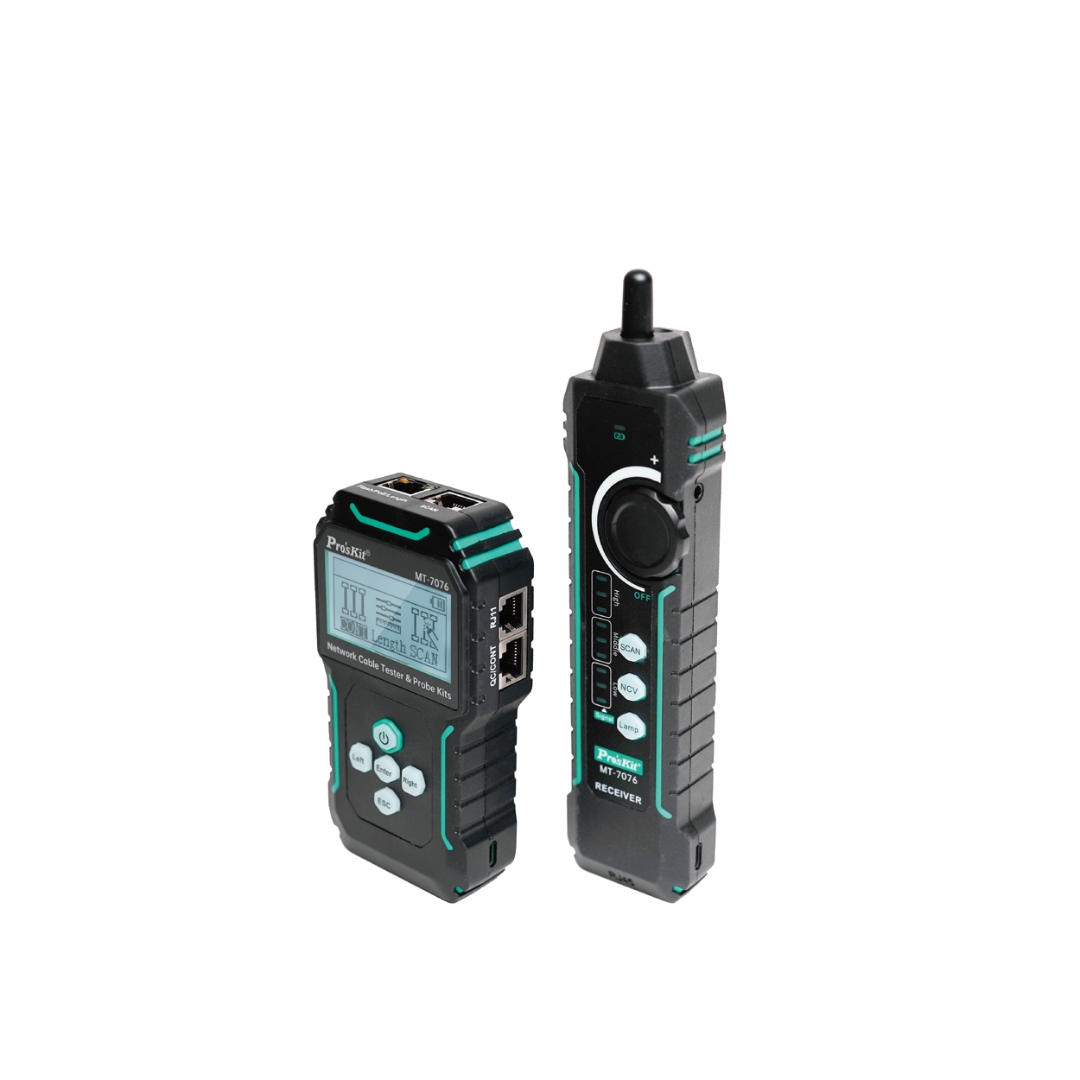

The MT-7076 Network Cable Tester & Probe Kit is a professional cable testing solution for network installation, maintenance and troubleshooting. It provides accurate cable tracing, PoE testing, cable mapping, port flashing and NCV detection in a compact, rechargeable design.
Features:
- Analog & Digital Dual-Mode Cable Tracing
- Anti-Interference Signal Detection
- Cable Mapping & Wire Sequence Identification
- Cable Length Measurement Function
- PoE Switch & Power Detection
- Port Flash for Fast Switch Port Identification
- RJ45 Crimp Quality Verification
- Network Link Status Analysis
- Non-Contact AC Voltage (NCV) Detection
- Rechargeable Li-ion Battery with USB Type-C Charging
- DC 60V Overvoltage Protection

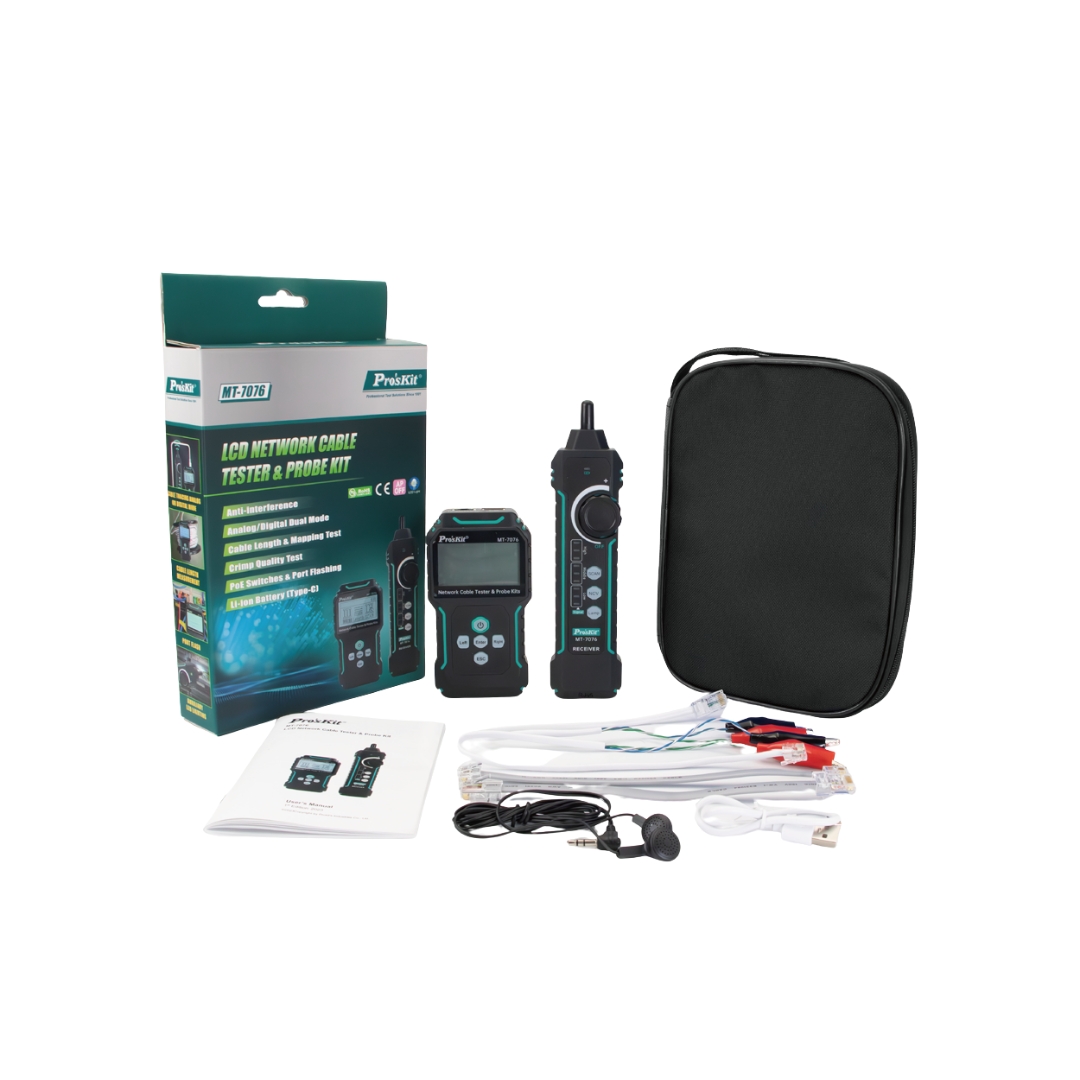

- Portable Carrying Case for Easy Field Service
Specifications:
| Model No. | MT-7076 |
| Display | LCD 53 × 29 mm (128 × 64 Dots) |
| Language | English |
| Connectors | RJ45 × 3, RJ11 × 1 |
| Cable Type | Cat5 / Cat5e / Cat6 / Cat7 |
| Cable Map Max Range | 300 m |
| Cable Length | 2.5–200 m |
| Measurement Accuracy | ≤20 m: ±1.6 m; 20–100 m: ±2.4 m; 100–200 m: ±3.2 m |
| Port Flash Frequency | 1 Time / 3 Sec |
| Port Flash Link Test | 10M / 100M / 1000M, FDX / HDX, Auto-Nego / Non-Auto Nego |
| PoE Standard | IEEE 802.3af/at |
| PoE Testing Span Mode | Midspan / Endspan |
| QC Testing Connector | RJ45 8-pin, ≥10 cm |
| Auto Power Off | 15 Min / 30 Min / 60 Min / Off |
| Battery | 3.7V 1400mAh Li-ion |
| NCV | AC 70V–1000V, 50/60Hz |
| Low Battery Indicator | Power Light Flashing |
| Earphone Jack | Φ3.2 mm |
| Transmitter Dimensions (H × W × D) | 125 × 70 × 32 mm (4.92″ × 2.76″ × 1.26″) |
| Receiver Dimensions (H × W × D) | 198 × 50 × 28 mm (7.80″ × 1.97″ × 1.10″) |
