Description

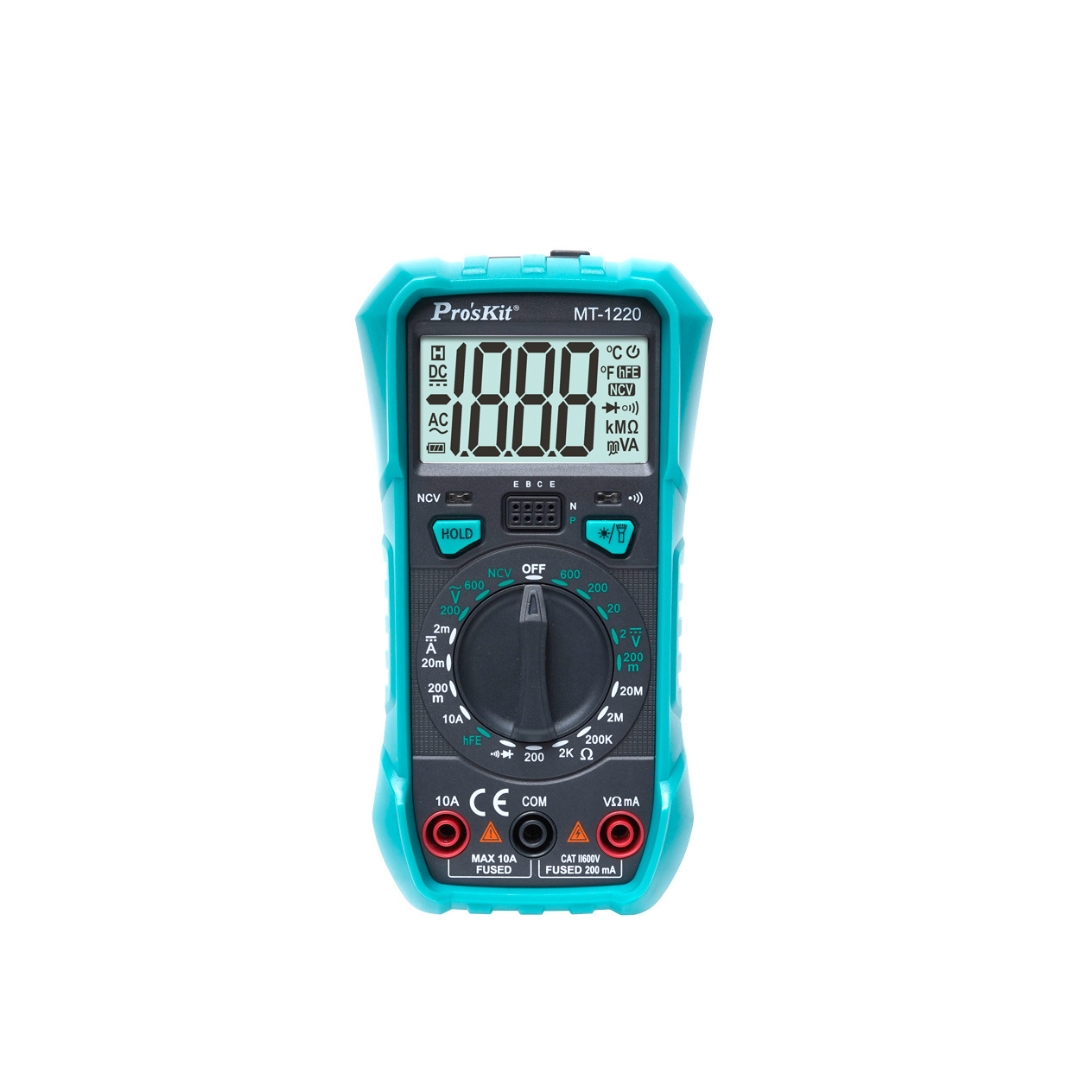

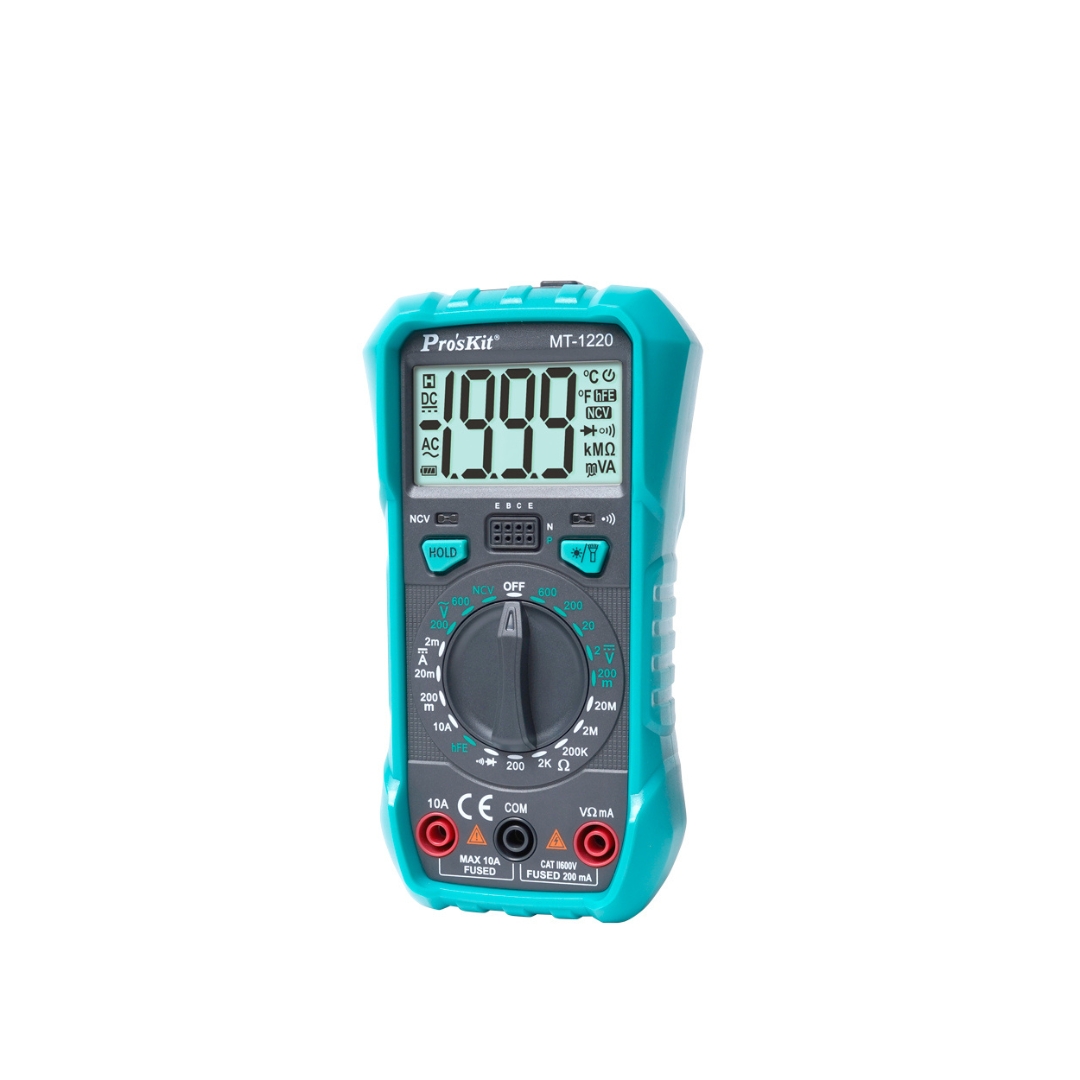

The 3½ Digital Multimeter is a compact manual-ranging instrument designed for accurate electrical measurement, troubleshooting and maintenance. It provides essential voltage, current, resistance, diode and transistor testing functions for professional and everyday use.
Features:
- 3½ Digit LCD Display (1999 Counts)
- Manual Range Measurement
- DC & AC Voltage Measurement
- DC Current Measurement up to 10A
- Resistance Measurement up to 20MΩ
- Diode & Transistor (hFE) Testing
- Continuity Buzzer
- Non-Contact Voltage (NCV) Detection
- Built-in LED Flashlight
- Low Battery Indicator
- Compact & Lightweight Design
Specifications:
| Model No. | MT-1220 |
| Display | 3½ Digit LCD (Max. 1999 Counts) |
| Measurement | Manual Range |
| DC Voltage (DCV) | 200mV / 2V / 20V / 200V ±(0.5%+5d); 600V ±(0.8%+5d) |
| AC Voltage (ACV) | 200V ±(1.0%+10d); 600V ±(1.2%+10d) |
| DC Current (DCA) | 2mA / 20mA / 200mA ±(1.0%+5d); 10A ±(3.0%+10d) |
| Resistance | 200Ω / 2kΩ / 200kΩ / 2MΩ ±(1%+3d); 20MΩ ±(1.5%+3d) |
| Continuity Buzzer | ≤30Ω |
| Diode Test | Yes |
| Transistor (hFE) Test | Yes |
| LED Light | Yes |
| Low Battery Indicator | Yes |
| NCV Detection | AC 90V–600V, 50/60Hz |
| Power Supply | 1.5V AAA Battery ×3 |
| Dimensions | 148 × 79 × 48 mm |
