Description

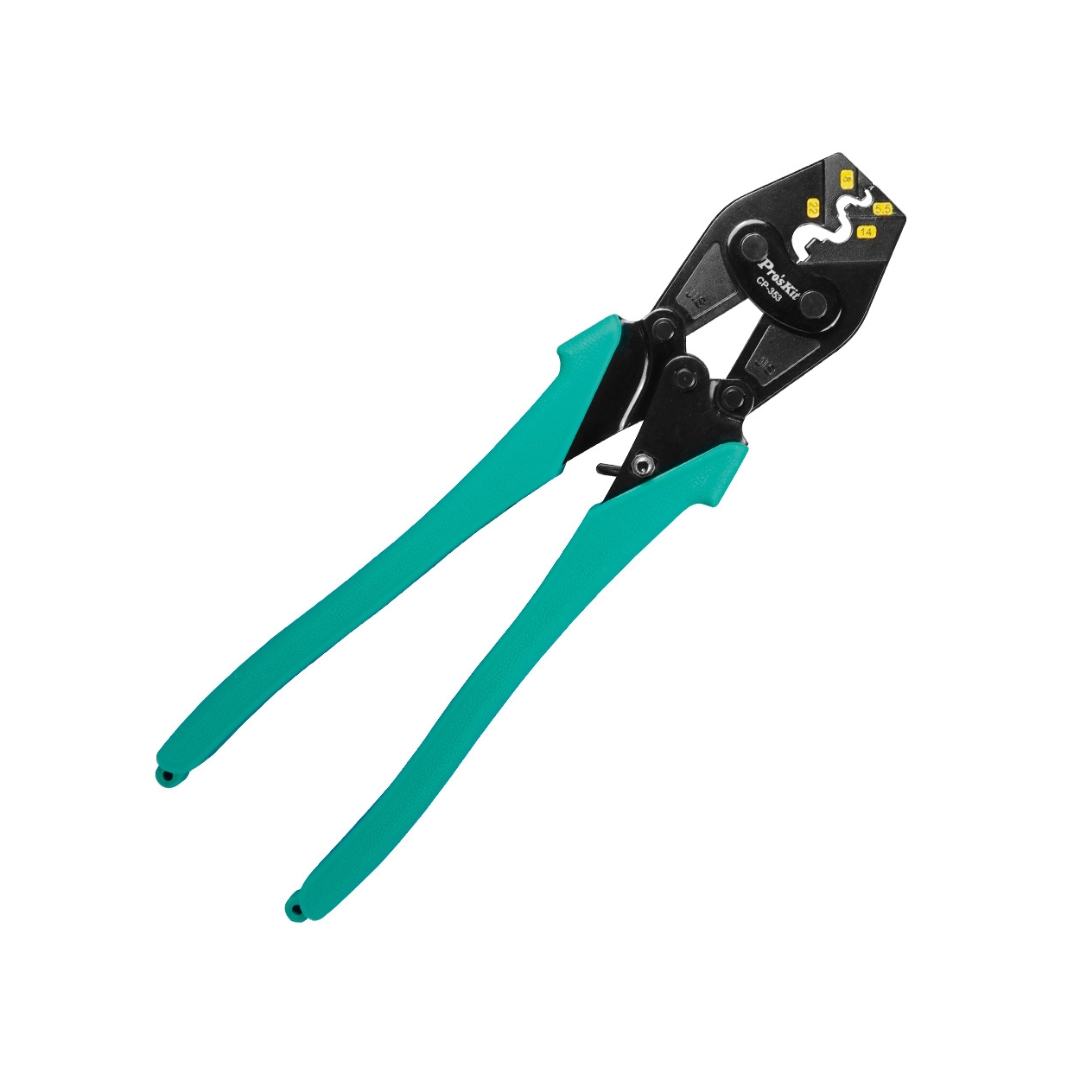

The Ratcheting Crimping Tool is designed for precise crimping of non-insulated terminals with minimal effort. It’s high-leverage compound action mechanism delivers consistent, high-quality crimps while reducing operating force by up to 35%.
Features:
- New Mechanism ratcheting crimper designed for non-insulated Terminals, Energy saving up to 35%
- High leverage handles, compound action mechanism provide superior mechanical advantage.
- The accurate crimping mold and self locking / releasing mechanical unit design ensure high crimping quality when crimping repeatedly.
- Made of high carbon steel with black oxide finish for anti-rust
- Ergonomically shaped non-slip TPR handle with eyelet design for user comfort and easy storage.
- Ideal for electronics, electrical and home electricity installation purpose.
Specifications:
| Model No. | CP-353 |
| Material (Body) | S45C Steel |
| Material (Die Set) | AISI 4140 Steel |
| Die Set Hardness (HRC) | 40°–42° |
| Handle Material | TPR |
| Crimper Die Profile | Non-insulated Spade/Ring Terminals |
| Application | AWG 12–10 / 8 / 6 / 4; DIN 4 / 6 / 10 / 16 / 25 mm²; JIS 5.5 / 8.0 / 14 / 22 mm² |
| Overall Length (OAL) | 332mm |
| Individual Packing | Blister Card |
