Description
Proskit MT-7603, Fiber Optical Power Meter
Features:
Supports dark environment Operation
- Comfortable LCD backlight display.
Memory capacity of 39 data
FC/PC interface
- 2.5mm FC interface supports connectors, FC-LC hybrid adaptor and SC adaptor are available for option
Modulation Detection 2 kHz / 1 kHz / 270 Hz
Wavelength measurement calibration
- As per standard light source output wavelength, adjust accuracy, adjust range ±3dB.
New REF User-defined
Can store the current laser source as a new reference value.
Extra User Friendly Design
- Auto power off, low battery indication, Multi unit selection:dBM, mW, uW, nW, Protective rubber boot, soft protective case.
Specifications:
| Model no. |
MT-7603 |
| Detector Type |
InGaAs |
| Optical Connector |
FC / PC |
| Measurement Range |
+8~ -70dBm |
| Measurement Wavelengths |
850,1300,1310,1490,1550,1625nm |
| resolution |
0.01dB |
| Accuracy |
±0.2dB |
| Measurement Linearity |
±2.0% |
| Display Resolution |
+8~ -60dBm: 0.01dB ; -60~ -70dBm: 0.1dB |
| Power Display Units |
dBm, mW, uW, nW, |
| Commuication connector |
USB |
| Data storage |
39 group |
| Modulation Detection |
270Hz,1kHz, 2kHz |
| Visual Fault Locator |
1mW |
| Autopower Off |
10 min (can be cancelled) |
| Low Battery Warning |
Low battery energy |
| Battery Capacity |
> 160 hours |
| Power Source |
AA/LR6 1.5V X2 PCS (not included) |
| Size |
170mm×97mm×38mm |
| Weight |
330g |
| Optional Accessory |
LC adaptor (5MT-7601-LC), SC adaptor (5MT-7601-SC) |

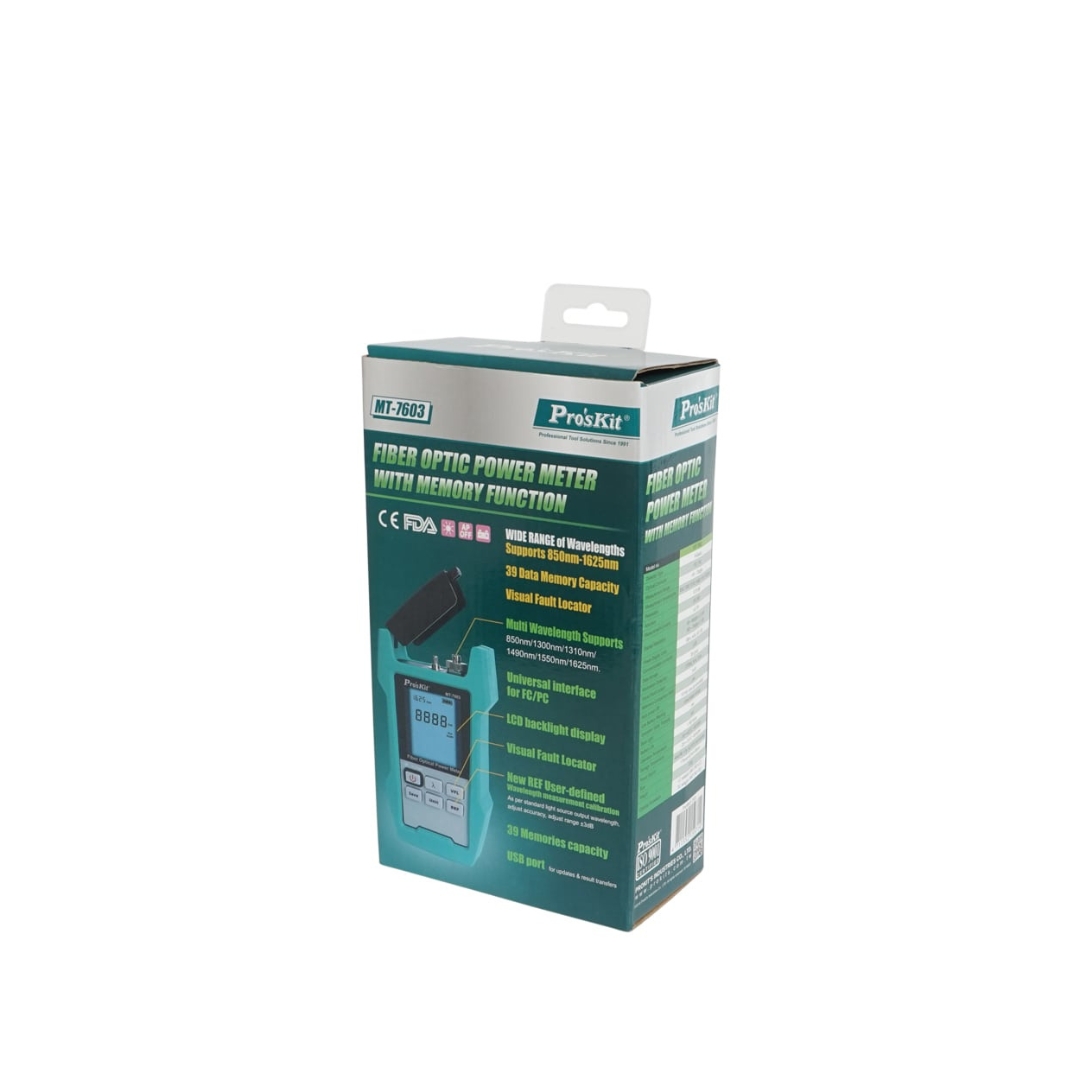

| Individual Package |
Color box |
